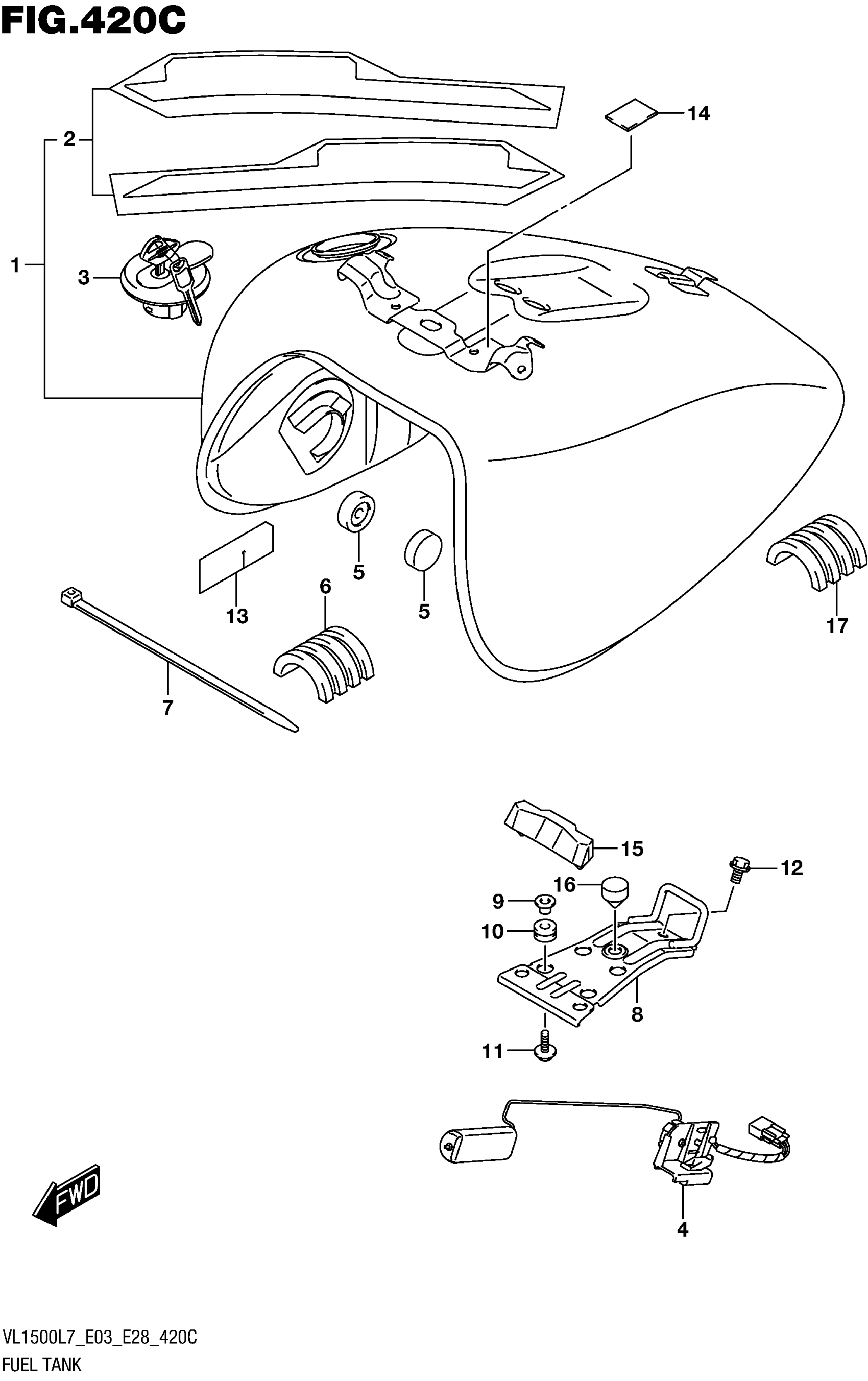

Suzuki VL1500BL7 (2017) FUEL TANK (VL1500BL7 E33) Diagram

#

Description
Price

1

TANK ASSY,FUEL This part replaces 44100-06J50-YUK.

44100-06J51-YUK

$1,165.28

2

.TAPE SET FUEL TANK

68110-06J10-JGS

$55.55

2

(ORANGE/BLACK)

68110-06J10-JGS

$55.55

3

CAP SET,FUEL TA This part replaces 44200-41840.

44200-41842

$94.83

4

GAUGE ASSY,FUEL This part replaces 34810-40H00.

34810-40H01

$83.05

5

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

6

CUSHION, TANK SIDE

44541-04F00

Unavailable

7

CLAMP (L:300)

09407-30402

$4.11

8

BRACKET, REAR

44530-06J00

$37.73

9

WASHER

09169-06062

$2.50

10

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

11

BOLT (6X20)

09116-06192

$2.30

12

BOLT (8X12)

01550-0812A

$2.32

13

PROTECTOR

44283-06J00

$6.10

14

CUSHION | CUT AS REQUIRED

63191-25C00

$3.05

15

CUSHION

44545-06J00

Unavailable

16

CUSHION

09321-10011

$2.91

17

CUSHION, TANK SIDE REAR

44541-06J00

Unavailable
