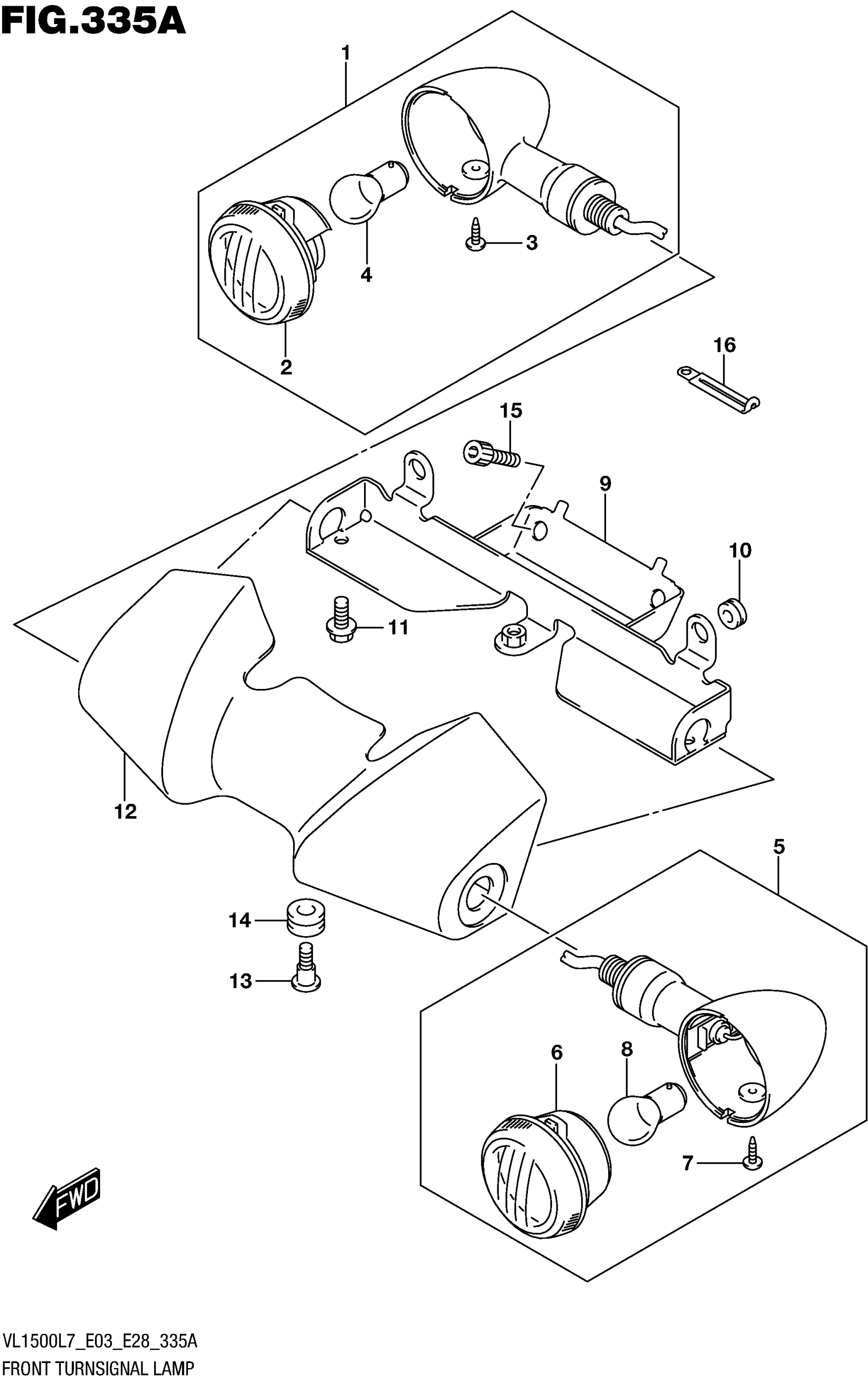

Suzuki VL1500BL7 (2017) FRONT TURNSIGNAL LAMP (VL1500BL7 E03) Diagram

Description

Price

LAMP ASSY, FRONT TURNSIGNAL R

35601-38AA0

$133.48

.LENS

35610-38AE1

$31.91

.SCREW (4X10)

35623-38AA0

$5.11

.BULB (12V,21W)

09471-12045

$3.27

LAMP ASSY, FRONT TURNSIGNAL L

35602-38AA0

$140.20

.LENS

35630-38AE1

$31.91

.SCREW (4X10)

35623-38AA0

$5.11

.BULB (12V,21W)

09471-12045

$3.27

BRACKET

35620-06J00

$58.62

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

BOLT (6X8)

09103-06275

$2.07

COVER, FRONT TURNSIGNAL

35641-06JB1

$139.58

SCREW (6X16)

09139-06146

$2.95

CUSHION

09320-09016

$1.97

BOLT

07130-0816B

$4.25

CLAMP (L:45)

09404-06429

$1.83
