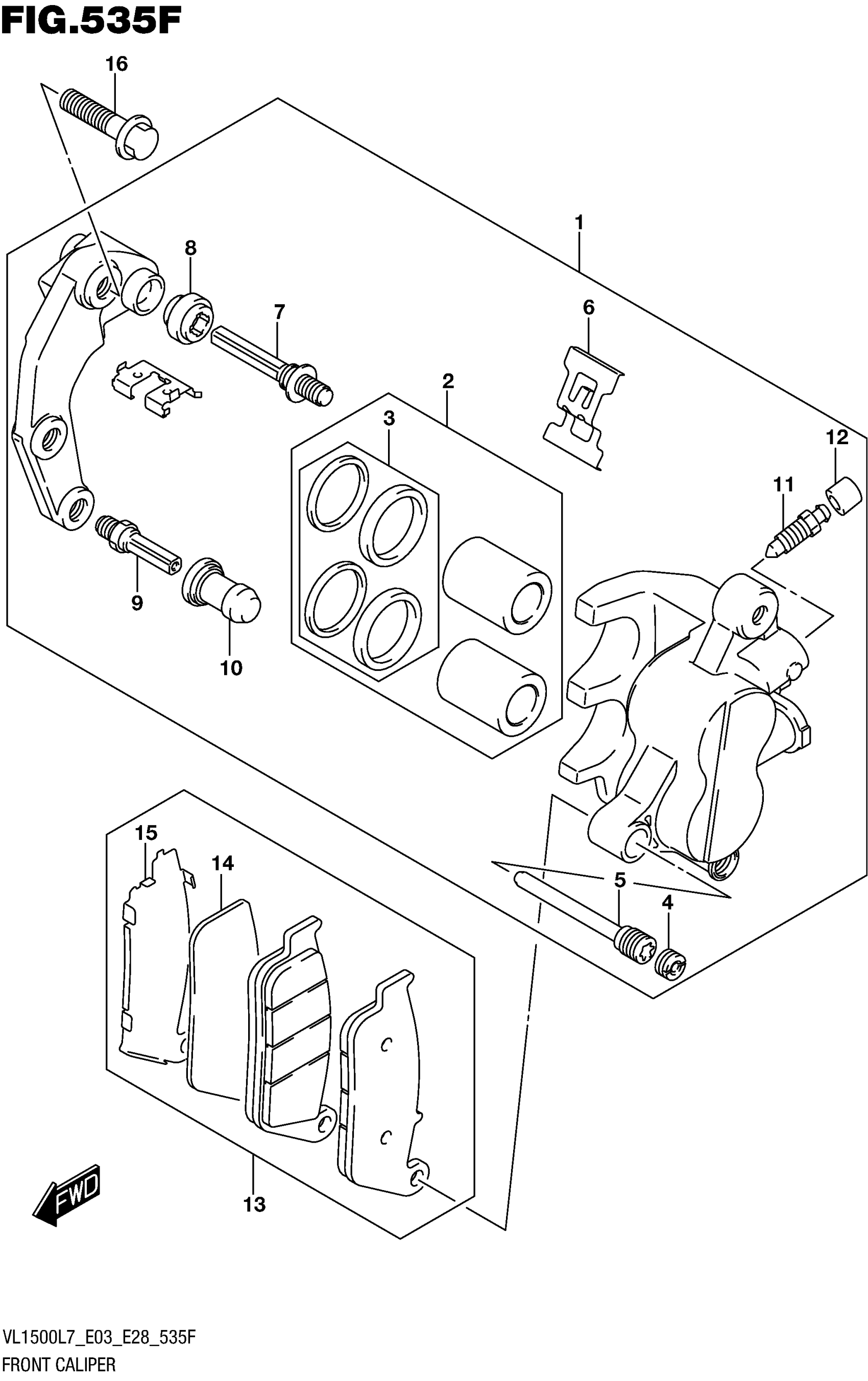

Suzuki VL1500BL7 (2017) FRONT CALIPER (VL1500TL7 E28) Diagram

Description

Price

CALIPER ASSY, FRONT

59300-06J10-999

Unavailable

.PISTON SET

59300-21810

$66.25

..SEAL SET, PISTON

59300-21860

$20.15

.PLUG, PIN

59146-21E10

$6.15

.PIN, HANGER

59145-21E10

$21.57

.SPRING, PAD

59115-21E10

$14.72

.PIN

59187-21E10

$26.73

.BOOT

59303-14500

$5.52

.PIN

59382-14500

$8.95

.BOOT

59386-13A00

$7.95

.BLEEDER

59121-01A00

$8.73

.CAP, BLEEDER

59122-46H00

$4.43

PAD SET

59300-06810

$83.65

.INSULATOR

59132-21E10

Unavailable

.RETAINER

59133-21E10

Unavailable

BOLT (8X35)

01550-0835A

$3.04
