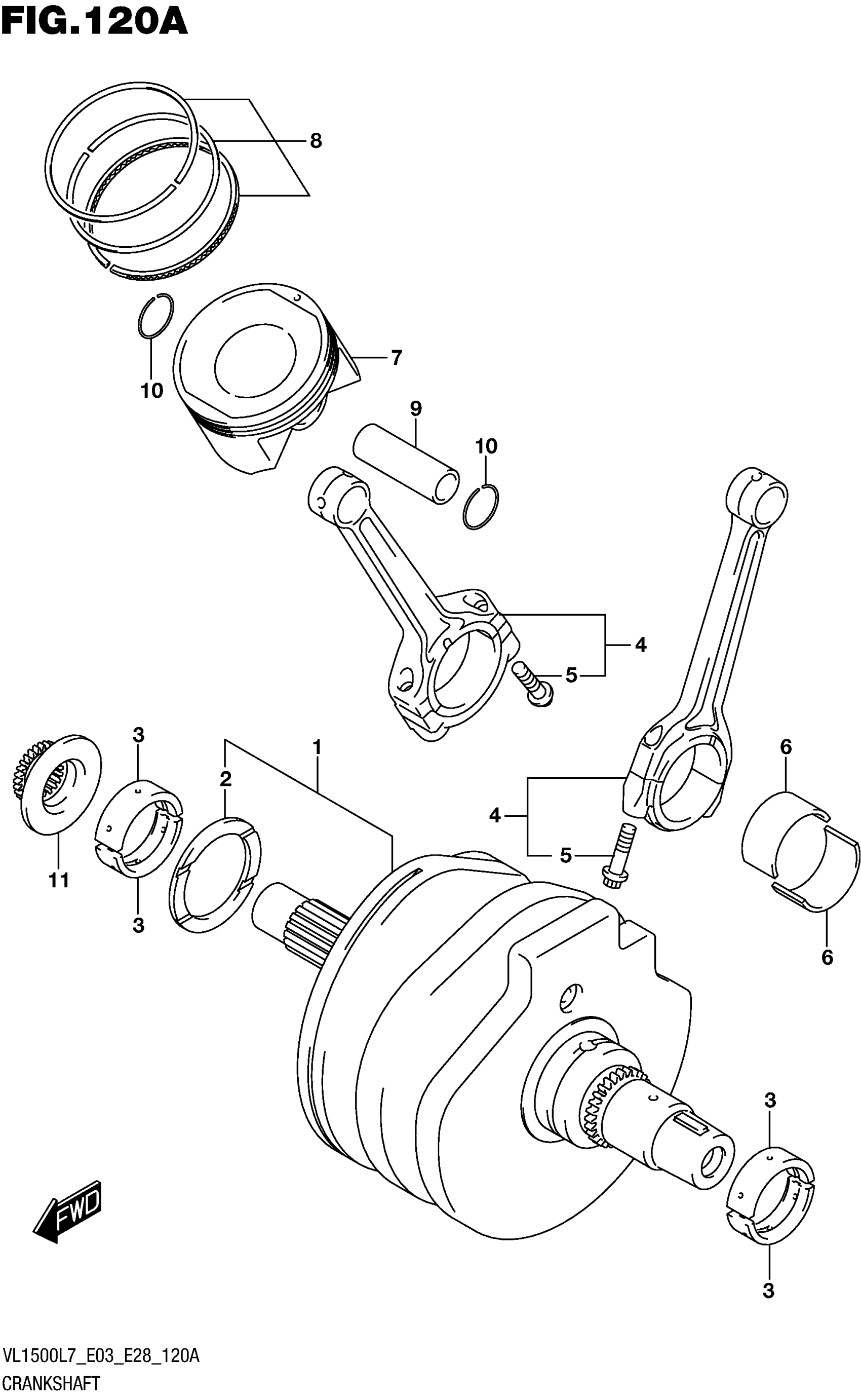

Suzuki VL1500BL7 (2017) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET

12000-40851

$1,736.83

2-1

.BEARING, CRANK THRUST

12228-40H00-0A0

Unavailable

2-1

(T:1.925-1.950)

12228-40H00-0A0

Unavailable

2-2

.BEARING, CRANK THRUST

12228-40H00-0B0

Unavailable

2-2

(T:1.950-1.975)

12228-40H00-0B0

Unavailable

2-3

.BEARING, CRANK THRUST

12228-40H00-0C0

Unavailable

2-3

(T:1.975-2.000)

12228-40H00-0C0

Unavailable

2-4

.BEARING, CRANK THRUST

12228-40H00-0D0

Unavailable

2-4

(T:2.000-2.025)

12228-40H00-0D0

Unavailable

2-5

.BEARING, CRANK THRUST

12228-40H00-0E0

Unavailable

2-5

(T:2.025-2.050)

12228-40H00-0E0

Unavailable

2-6

.BEARING, CRANK THRUST

12228-40H00-0F0

Unavailable

2-6

(T:2.050-2.075)

12228-40H00-0F0

Unavailable

3-1

BEARING, CRANKSHAFT (GREEN)

12229-40H00-0A0

Unavailable

3-2

BEARING, CRANKSHAFT (BLACK)

12229-40H00-0B0

Unavailable

3-3

BEARING, CRANKSHAFT (BROWN)

12229-40H00-0C0

$28.85

4

CONNROD ASSY

12160-40H00

$274.80

5

.BOLT

12163-06G00

$20.85

6-1

BEARING, CRANK PIN (GREEN)

12164-40H00-0A0

Unavailable

6-2

BEARING, CRANK PIN (BLACK)

12164-40H00-0B0

$22.52

6-3

BEARING, CRANK PIN (BROWN)

12164-40H00-0C0

Unavailable

6-4

BEARING, CRANK PIN (YELLOW)

12164-40H00-0D0

Unavailable

7

PISTON

12111-40H10-0F0

$171.07

8

RING SET, PISTON

12140-40H01

$92.00

9

PIN, PISTON

12151-02F10

$29.15

10

CIRCLIP

09381-22002

$1.65

11

SPROCKET, CAM CHAIN DRIVE

12731-40H00

Unavailable

11

(NT:23)

12731-40H00

Unavailable
