Partiron

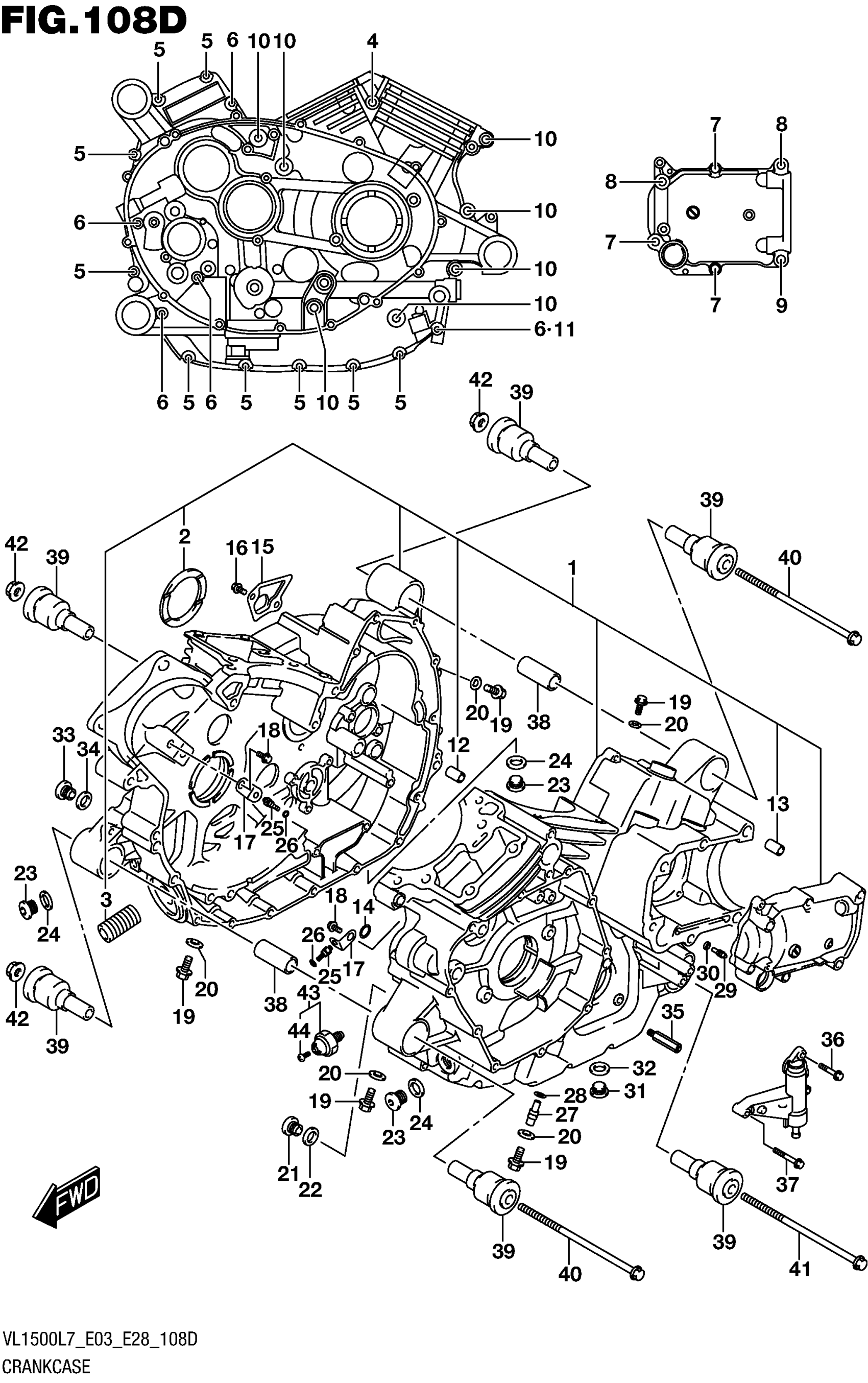

Suzuki VL1500BL7 (2017) CRANKCASE (VL1500BTL7 E28) Diagram

#

Description
Price

1

CRANKCASE SET

11301-40871

$3,763.90

2-1

.BEARING, CRANK THRUST

12228-40H00-0A0

Unavailable

2-1

(T:1.925-1.950)

12228-40H00-0A0

Unavailable

2-2

.BEARING, CRANK THRUST

12228-40H00-0B0

Unavailable

2-2

(T:1.950-1.975)

12228-40H00-0B0

Unavailable

2-3

.BEARING, CRANK THRUST

12228-40H00-0C0

Unavailable

2-3

(T:1.975-2.000)

12228-40H00-0C0

Unavailable

2-4

.BEARING, CRANK THRUST

12228-40H00-0D0

Unavailable

2-4

(T:2.000-2.025)

12228-40H00-0D0

Unavailable

2-5

.BEARING, CRANK THRUST

12228-40H00-0E0

Unavailable

2-5

(T:2.025-2.050)

12228-40H00-0E0

Unavailable

2-6

.BEARING, CRANK THRUST

12228-40H00-0F0

Unavailable

2-6

(T:2.050-2.075)

12228-40H00-0F0

Unavailable

3

UNION,OIL STAND

16591-06B01

$6.45

4

.BOLT (8X110)

09103-08134

$3.70

5

BOLT

01547-0645A

$2.43

6

.BOLT

01547-0685A

Unavailable

7

.BOLT

01550-0845A

$2.88

8

.BOLT

01550-0860A

$1.37

9

.BOLT

01550-0870A

$4.70

10

.BOLT

01550-0880A

$4.62

11

.GASKET (5.8X13X1.2)

09168-06023

$2.01

12

PIN,CRANKCASE

11319-33E50

$5.01

13

.PIN (8.4X11X20)

09206-11007

$2.63

14

O RING (D:1.9,ID:12.6)

09280-12009

$2.87

15

PLATE, OIL SEPARATOR

11313-40H00

Unavailable

16

BOLT

01547-0612A

$2.01

17

PLATE, PISTON JET REAR

16439-38B00

Unavailable

18

BOLT

01547-0612A

$2.01

19

BOLT (8X12)

01550-0812A

$2.31

20

GASKET (8.2X14X1)

09168-08016

$1.64

21

PLUG (10X10)

09248-10010

$3.82

22

GASKET (10X14X3.6)

09168-10002

$1.96

23

PLUG (16X8)

09248-16012

$4.19

24

GASKET (16X22X2)

09168-16002

$1.89

25

JET, PISTON-COOLING (0.8)

09493-80009

$22.52

26

O RING (D:1.2,ID:4)

09280-04004

$1.76

27

JET (12)

09493-24009

Unavailable

28

O RING (D:1.2,ID:4)

09280-04004

$1.76

29

JET, OIL GALY (18)

09493-36004

$18.33

30

O RING (D:1.2,ID:4)

09280-04004

$1.76

31

PLUG (14X20) | OIL DRAIN

09247-14036

$5.58

32

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

33

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

$2.80

34

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

35

BOLT, SEC DRIVE UNIT COVER

11372-22H00

$16.92

36

BOLT

01547-0620A

$2.01

37

BOLT

01547-0630A

$2.31

38

SPACER, ENGINE MOUNTING

11611-48G00

Unavailable

39

BUSH, ENGINE MOUNTING

11652-40H20

Unavailable

40

BOLT (10X215)

09103-10041-A05

$9.38

41

BOLT (10X195)

09103-10118

$11.91

42

NUT

08319-3110A

$2.73

43

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$27.58

44

.BOLT

37822-33D00

$4.92
