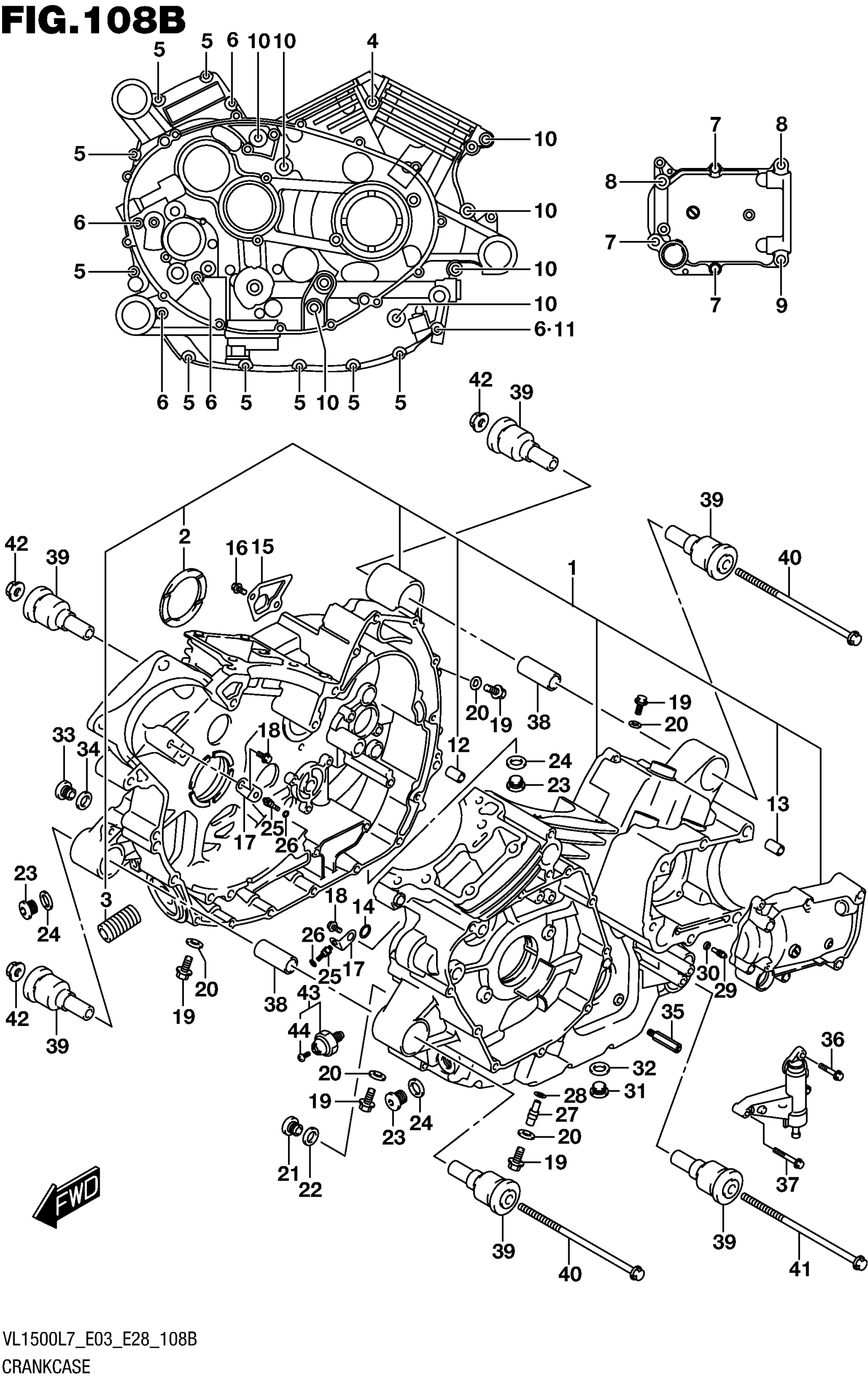

Find the part on the Crankcase diagram for your 2017 Suzuki VL1500BL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Suzuki VL1500BL7 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11301-40871

1
Out of stock

2-1

.BEARING, CRANK THRUST

12228-40H00-0A0

1
Out of stock

2-1

(T:1.925-1.950)

12228-40H00-0A0

1
Out of stock

2-2

.BEARING, CRANK THRUST

12228-40H00-0B0

1
Out of stock

2-2

(T:1.950-1.975)

12228-40H00-0B0

1
Out of stock

2-3

.BEARING, CRANK THRUST

12228-40H00-0C0

1
Out of stock

2-3

(T:1.975-2.000)

12228-40H00-0C0

1
Out of stock

2-4

.BEARING, CRANK THRUST

12228-40H00-0D0

1
Out of stock

2-4

(T:2.000-2.025)

12228-40H00-0D0

1
Out of stock

2-5

.BEARING, CRANK THRUST

12228-40H00-0E0

1
Out of stock

2-5

(T:2.025-2.050)

12228-40H00-0E0

1
Out of stock

2-6

.BEARING, CRANK THRUST

12228-40H00-0F0

1
Out of stock

2-6

(T:2.050-2.075)

12228-40H00-0F0

1
Out of stock

3

UNION,OIL STAND

16591-06B01

1
Out of stock

4

.BOLT (8X110)

09103-08134

1
Out of stock

5

BOLT

01547-0645A

9
Out of stock

6

.BOLT

01547-0685A

—
Out of stock

7

.BOLT

01550-0845A

3
Out of stock

8

.BOLT

01550-0860A

2
Out of stock

9

.BOLT

01550-0870A

1
Out of stock

10

.BOLT

01550-0880A

7
Out of stock

11

.GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

12

PIN,CRANKCASE

11319-33E50

2
Out of stock

13

.PIN (8.4X11X20)

09206-11007

2
Out of stock

14

O RING (D:1.9,ID:12.6)

09280-12009

1
Out of stock

15

PLATE, OIL SEPARATOR

11313-40H00

1
Out of stock

16

BOLT

01547-0612A

3
Out of stock

17

PLATE, PISTON JET REAR

16439-38B00

2
Out of stock

18

BOLT

01547-0612A

2
Out of stock

19

BOLT (8X12)

01550-0812A

5
Out of stock

20

GASKET (8.2X14X1)

09168-08016

5
Out of stock

21

PLUG (10X10)

09248-10010

1
Out of stock

22

GASKET (10X14X3.6)

09168-10002

1
Out of stock

23

PLUG (16X8)

09248-16012

3
Out of stock

24

GASKET (16X22X2)

09168-16002

3
Out of stock

25

JET, PISTON-COOLING (0.8)

09493-80009

2
Out of stock

26

O RING (D:1.2,ID:4)

09280-04004

2
Out of stock

27

JET (12)

09493-24009

1
Out of stock

28

O RING (D:1.2,ID:4)

09280-04004

1
Out of stock

29

JET, OIL GALY (18)

09493-36004

1
Out of stock

30

O RING (D:1.2,ID:4)

09280-04004

1
Out of stock

31

PLUG (14X20) | OIL DRAIN

09247-14036

1
Out of stock

32

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

33

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

1
Out of stock

34

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

35

BOLT, SEC DRIVE UNIT COVER

11372-22H00

1
Out of stock

36

BOLT

01547-0620A

1
Out of stock

37

BOLT

01547-0630A

2
Out of stock

38

SPACER, ENGINE MOUNTING

11611-48G00

2
Out of stock

39

BUSH, ENGINE MOUNTING

11652-40H20

6
Out of stock

40

BOLT (10X215)

09103-10041-A05

2
Out of stock

41

BOLT (10X195)

09103-10118

1
Out of stock

42

NUT

08319-3110A

3
Out of stock

43

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

1
Out of stock

44

.BOLT

37822-33D00

1
Out of stock
