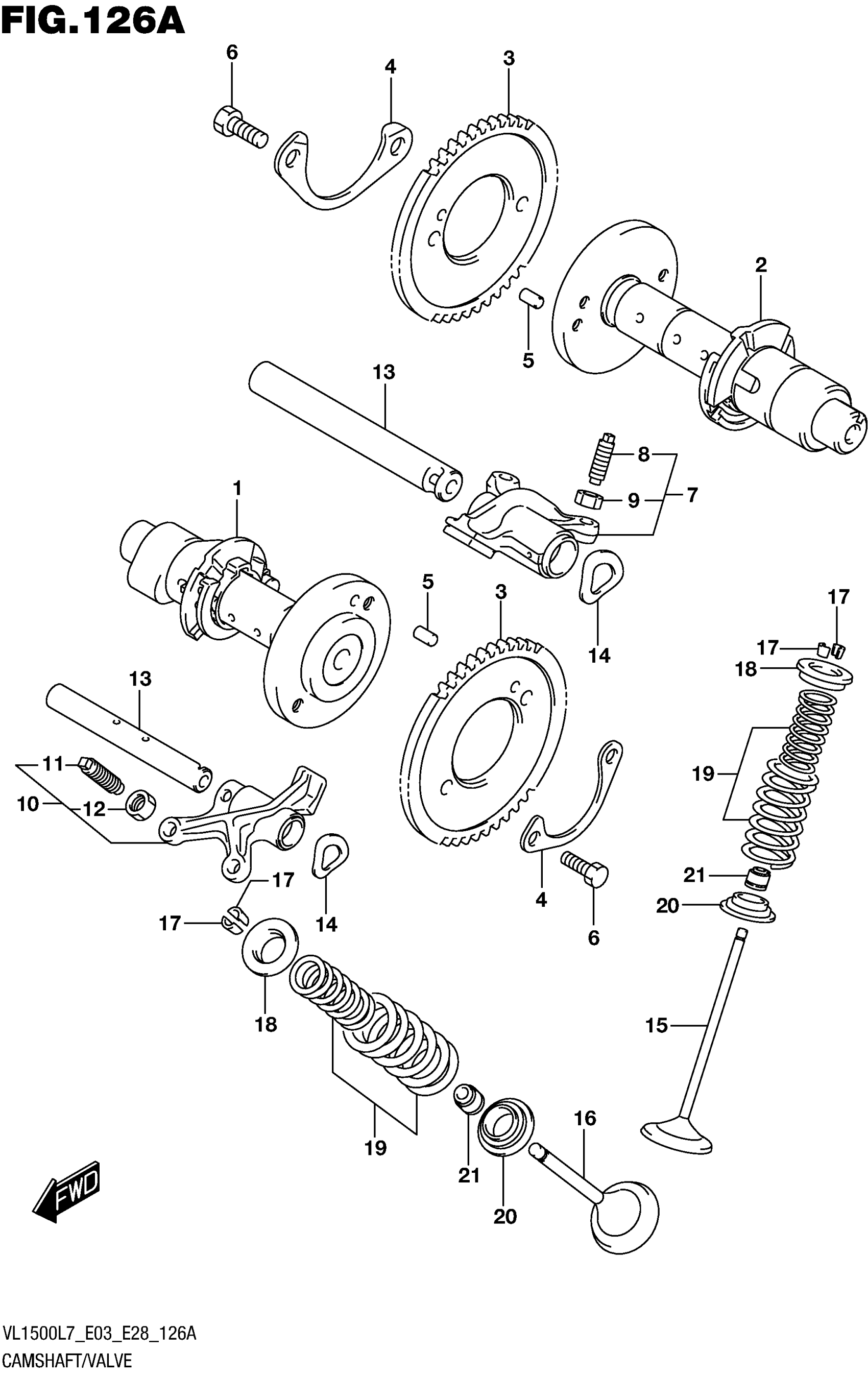

Suzuki VL1500BL7 (2017) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT, FRONT

12710-40H20

Unavailable

2

CAMSHAFT, REAR

12730-40H10

Unavailable

3

SPROCKET, CAMSHAFT (NT:46)

12741-41F00

$62.48

4

WASHER

12747-44001

$2.50

5

PIN

04221-05109

$1.49

6

BOLT (6X12.5)

09100-06169

Unavailable

7

ARM, VALVE ROCKER INTAKE

12840-40H00

Unavailable

8

.SCREW

12842-38A00

$6.17

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

ARM, VALVE ROCKER EXHAUST

12850-40H00

Unavailable

11

.SCREW

12842-38A00

$6.17

12

.NUT, ADJUSTING SCREW

12843-32400

$2.79

13

SHAFT, VALVE ROCKER ARM

12861-40H00

Unavailable

14

WASHER

09164-12018

$1.49

15

VALVE, INTAKE

12911-40H00

Unavailable

16

VALVE, EXHAUST

12912-40H00

Unavailable

17

COTTER, VALVE

12932-24400

$1.94

18

RETAINER, SPRING

12931-33201

$8.28

19

SPRING SET, VALVE

12920-32E00

$16.87

20

SEAT,VALVE SPRING

12933-81400

$5.17

21

OIL SEAL (5.5X11X8.2)

09289-05015

$6.70
