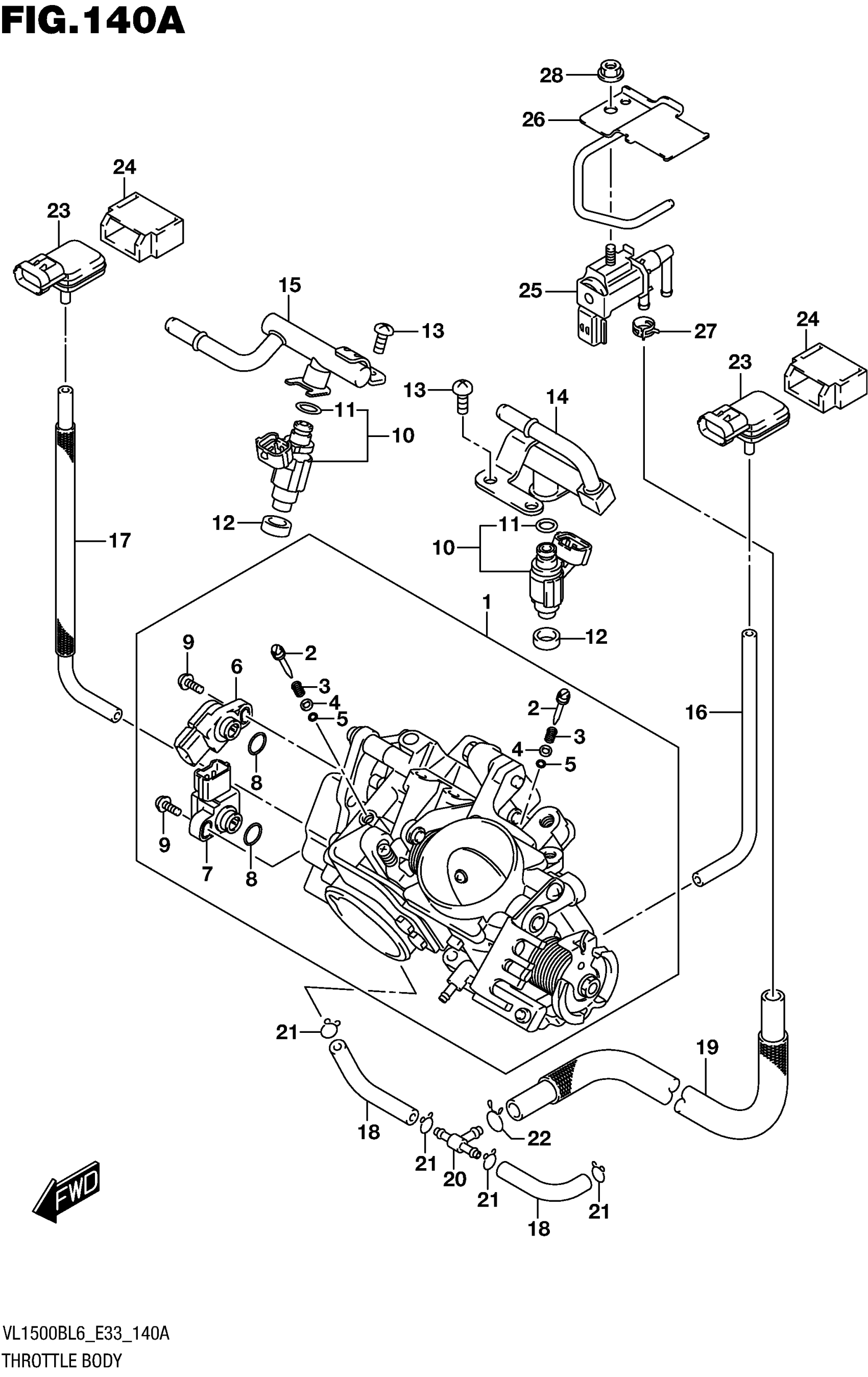

Suzuki VL1500BL6 (2016) THROTTLE BODY Diagram

#

Description
Price

1

BODY, THROTTLE

13405-40HB0

Unavailable

2

SCREW

13269-33E00

$11.10

3

SPRING,THROTTLE SCREW

13268-48700

$4.34

4

WASHER

13606-47A00

$3.28

5

O-RING This part replaces 13295-29900.

13295-29901

$4.34

6

.SENSOR ASSY

13580-48G10

$151.08

7

.SENSOR ASSY

13580-48G00

$203.42

8

.O-RING This part replaces 13575-29G00.

13575-29G01

$3.15

9

.SCREW

13605-02F00

$3.71

10

INJECTOR ASSY

15710-48G00

$269.36

11

.O-RING

15717-58B00

$9.95

12

SEAL

15722-29G00

$10.93

13

SCREW

13602-06148

$3.62

14

PIPE ASSY, DELIVERY

15730-40H00

Unavailable

15

PIPE ASSY, DELIVERY

15730-40H10

Unavailable

16

HOSE This part replaces 13683-48G00.

13683-48G01

$31.87

17

HOSE

13683-40H10

Unavailable

18

.HOSE

13683-48G21

$63.90

19

HOSE

13683-40H20

Unavailable

20

NIPPLE

13685-04F10

$11.07

21

CLIP

09401-06101

$2.03

22

CLIP This part replaces 09401-10410.

09401-10401

$1.49

23

SENSOR, PRESSURE

18591-41F00

Unavailable

24

HOLDER

18595-33G00

Unavailable

25

VALVE,CANISTER PURGE

18117-52G10

$151.17

26

BRACKET, PURGE VALVE

18119-06J00

Unavailable

27

CLIP

09401-10411

$2.80

28

NUT

08316-1006A

$2.19
