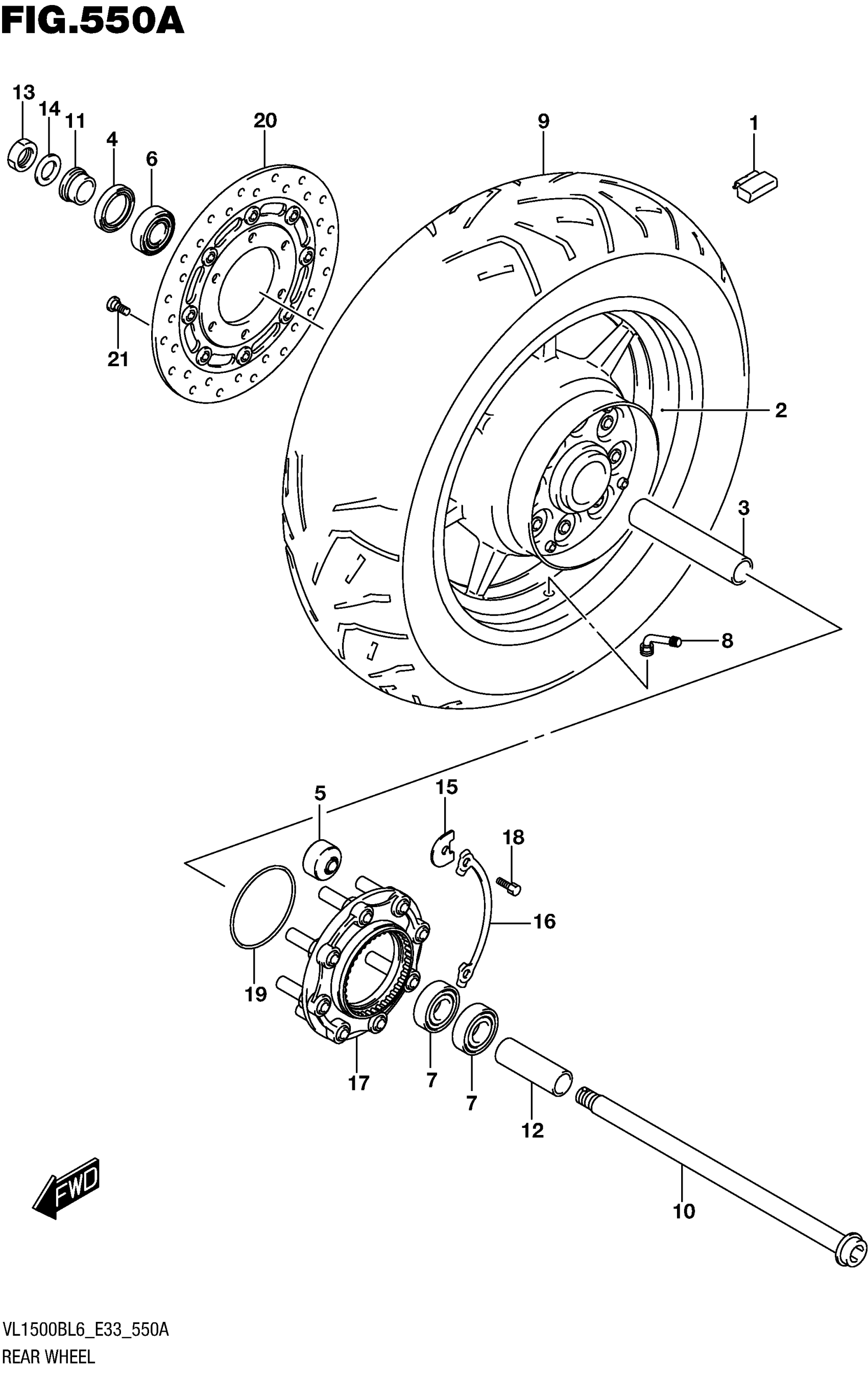

Find the part on the Rear Wheel diagram for your 2016 Suzuki VL1500BL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki VL1500BL6 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

1
Out of stock

1-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

1
Out of stock

1-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

1
Out of stock

2

WHEEL, REAR (16M/CXMT5.50)

64111-06J10-019

—
Out of stock

2

(BLACK)

64111-06J10-019

—
Out of stock

3

SPACER, REAR WHEEL BEARING

64731-40H00

1
Out of stock

4

.SEAL,OIL (32X52X7)

09285-32004

1
Out of stock

5

BUSH

09319-12019

8
Out of stock

6

BEARING (25X52X15) | RH This part replaces 09262-25167.

09262-25191

1
Out of stock

7

BEARING (25X52X15) | LH

08143-62057

2
Out of stock

8

VALVE ASSY, WHEEL RIM (PVR100

43130-39H00

1
Out of stock

9

TIRE, REAR (200/60R16M/C 79H) | G852 RADIAL G

65110-06J00

1
Out of stock

9

TIRE | BRIDGESTONE

65110-06J00

1
Out of stock

10

AXLE, REAR

64711-48G00

1
Out of stock

11

SPACER, REAR AXLE RH

64741-48G00

1
Out of stock

12

SPACER, REAR AXLE LH

64772-48G00

1
Out of stock

13

NUT

09159-22007

1
Out of stock

14

WASHER (22X35X2)

09160-22081

1
Out of stock

15

WASHER, THRUST

64677-48G10

4
Out of stock

16

WASHER, REAR HUB DRIVEN JOINT

64679-48G00

2
Out of stock

17

JOINT ASSY, REAR HUB DRIVEN

64680-48G00

1
Out of stock

18

BOLT (6X16)

09119-06049

4
Out of stock

19

1

$3.79

In stock

20

DISC, REAR BRAKE

69210-10F40

1
Out of stock

21

BOLT (8X21)

09106-08160

6
Out of stock
