2016 Suzuki VL1500BL6 Rear Swingingarm Diagram

← All diagrams

Find the part on the Rear Swingingarm diagram for your 2016 Suzuki VL1500BL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

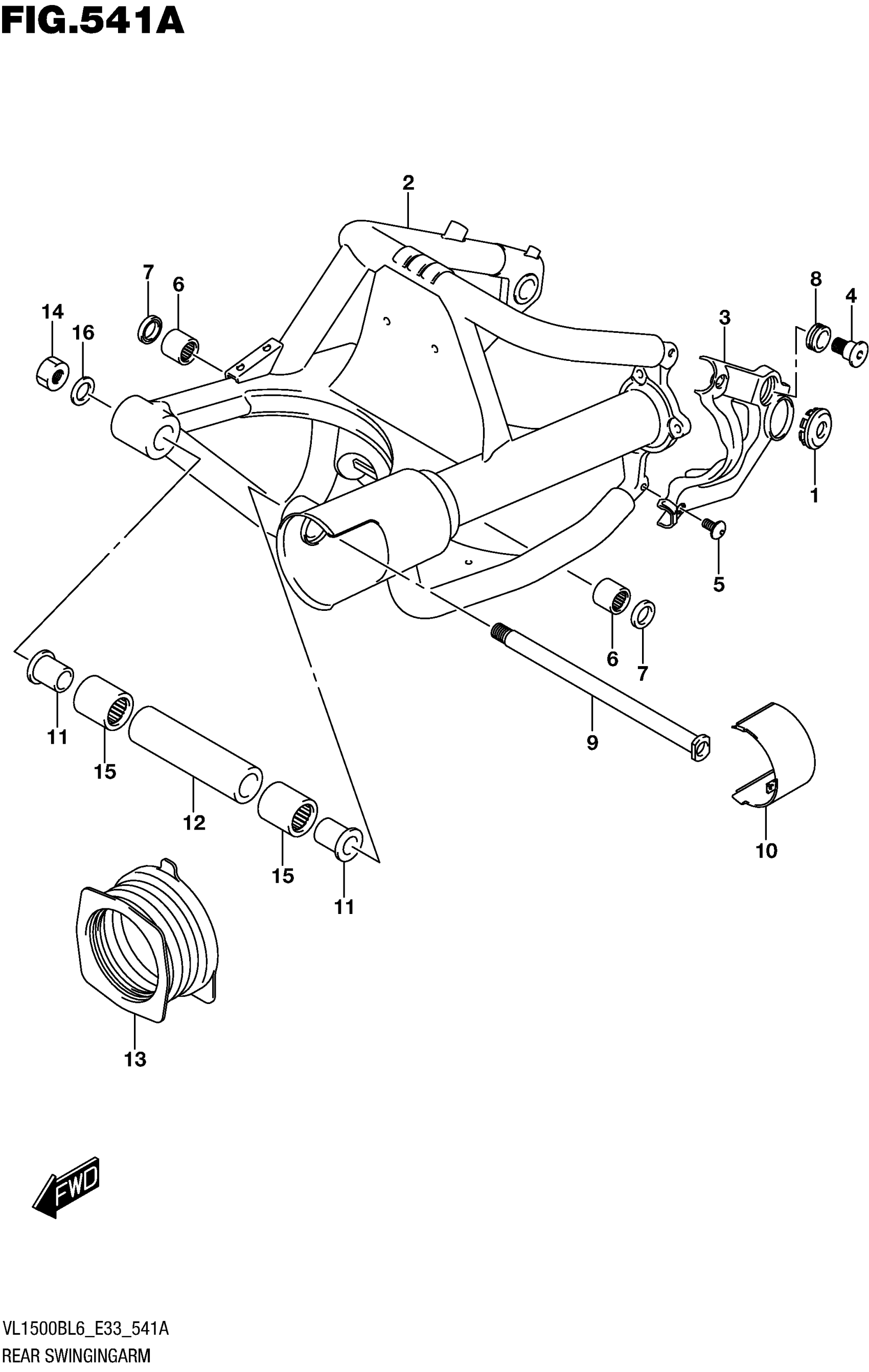

2016 Suzuki VL1500BL6 Rear Swingingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, REAR SWINGINGARM COVER

41899-42F10

1
Out of stock

2

SWINGINGARM, REAR (BLACK)

61100-06J00-019

1
Out of stock

3

COVER, LH (BLACK)

61126-40H00-019

1
Out of stock

4

BOLT, COVER REAR

61127-41F20

1
Out of stock

5

SCREW (8X16)

09139-08007

2
Out of stock

6

BEARING (22X29X25)

09263-22071

2
Out of stock

7

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

2
Out of stock

8

CUSHION This part replaces 09320-22003.

09320-22004

1
Out of stock

9

SHAFT, PIVOT

61211-22D00

1
Out of stock

10

COVER, PIVOT LH

61230-40H00

1
Out of stock

11

SPACER,PIVOT BEARING

61251-31E00

2
Out of stock

12

SPACER, PIVOT CENTER

61280-48G01

1
Out of stock

13

BOOT, PROPELLER SHAFT

61372-40H10

1
Out of stock

14

NUT

09159-18007

1
Out of stock

15

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

2
Out of stock

16

WASHER

08322-0118B

1
Out of stock
