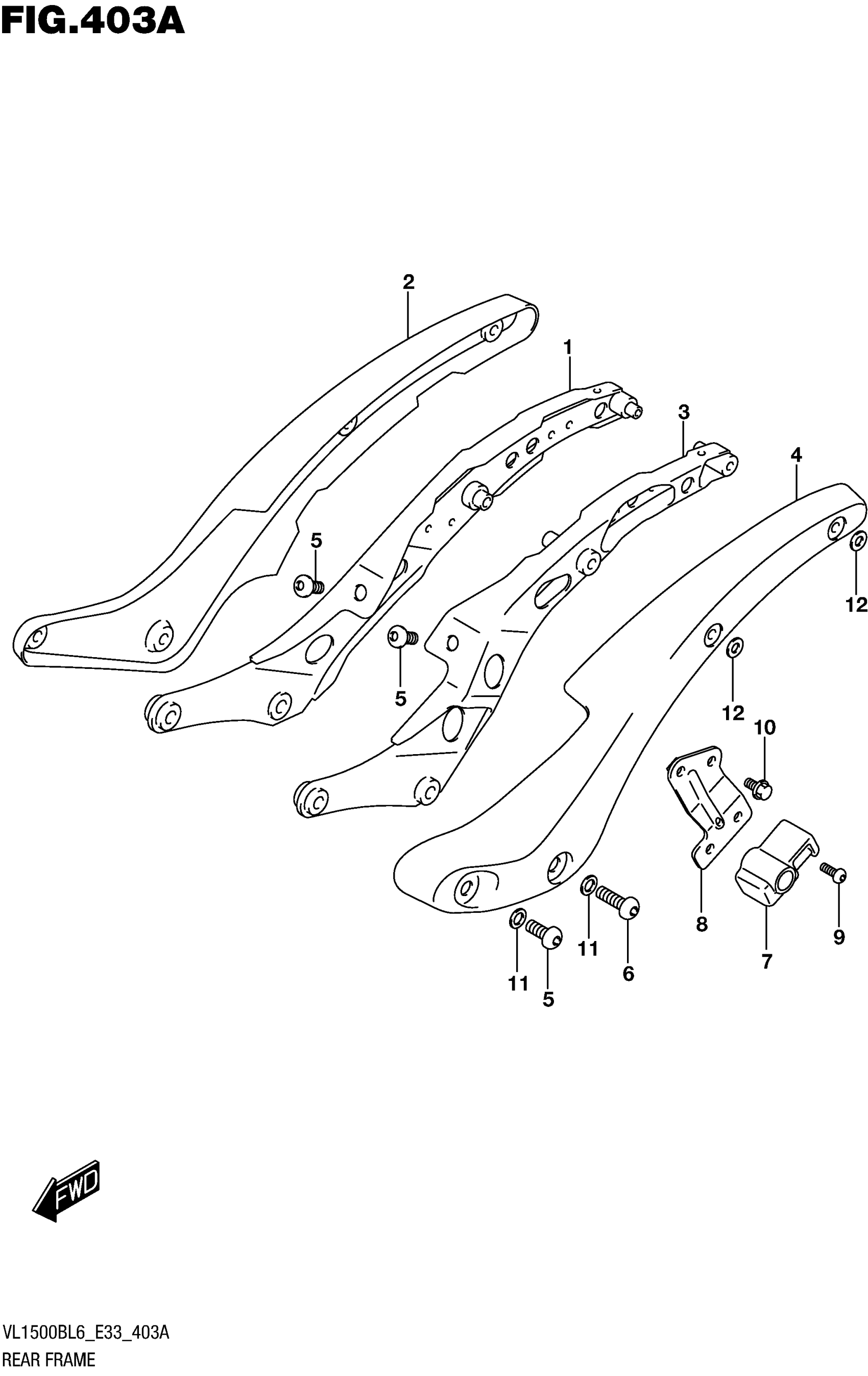

Suzuki VL1500BL6 (2016) REAR FRAME Diagram

#

Description
Price

1

FRAME, REAR RH

42650-06J00

Unavailable

2

PLATE, REAR FRAME RH

42651-06J10

Unavailable

3

FRAME, REAR LH

42660-06J00

$247.01

4

PLATE, REAR FRAME LH

42661-06J10

$315.50

5

BOLT (10X25)

09139-10003

$6.93

6

BOLT (10X35)

09139-10005

$9.50

7

LOCK SET HELMET

95700-41821

$152.77

8

BRACKET, HELMET LOCK

95710-06J00

Unavailable

9

SCREW (6X14)

09139-06089

$3.03

10

SCREW

02162-0612A

$2.05

11

WASHER (10.5X19X2) | FRONT

09160-10082

$1.61

12

WASHER (8.5X18X1)

09160-08043

$1.83
