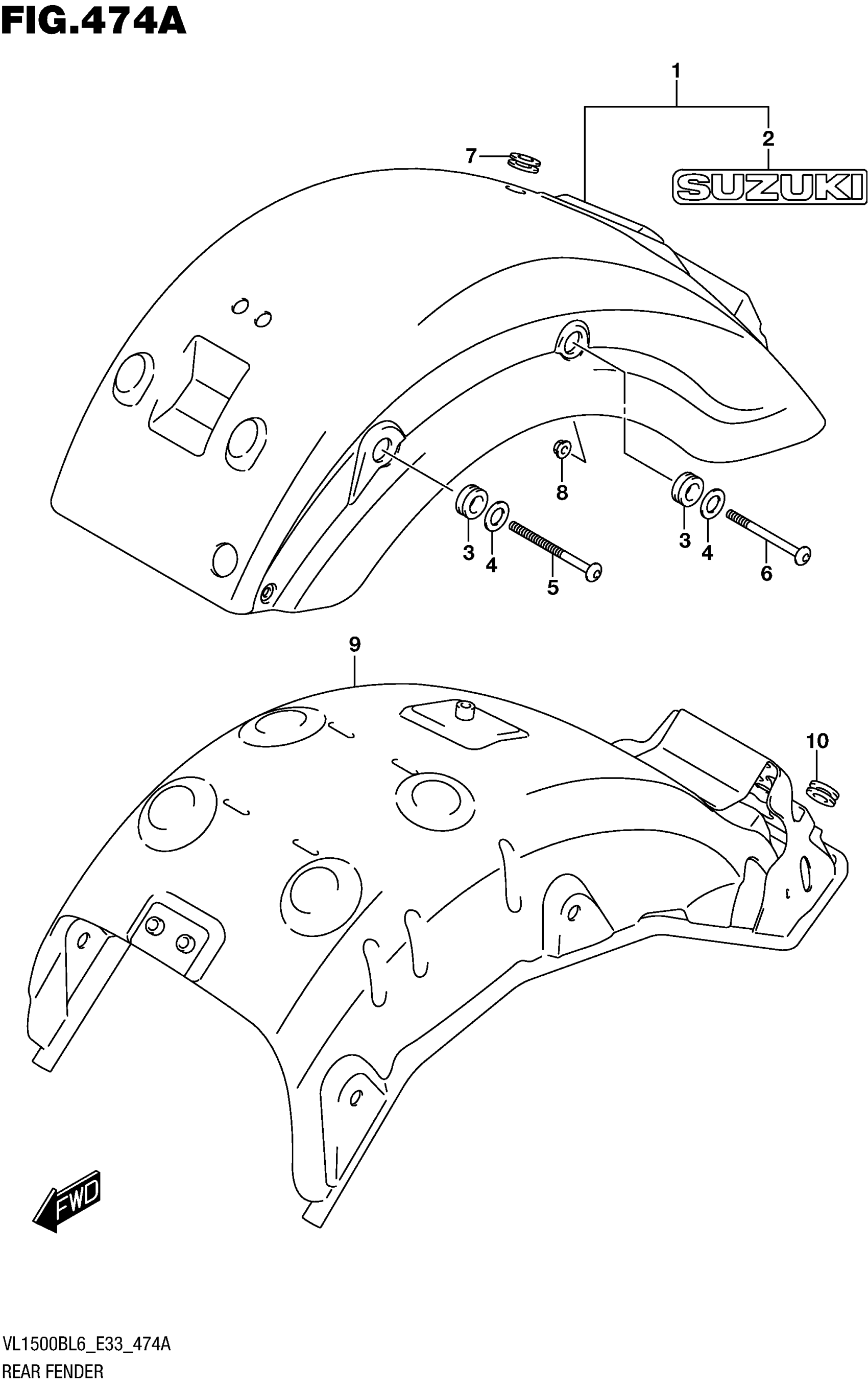

Suzuki VL1500BL6 (2016) REAR FENDER Diagram

#

Description
Price

1

FENDER COMP,REA This part replaces 63110-06J00-YUK.

63110-06J01-YUK

$1,541.58

2

EMBLEM,"SUZUKI" This part replaces 68271-34A00-20G.

68271-34A01-20G

$6.15

3

CUSHION

47191-24F00

$5.09

4

WASHER (15.5X26X2.3)

09160-15002

$1.76

5

BOLT | FRONT

63161-06J10

$7.07

6

BOLT | REAR

63161-41F00

$9.25

7

CUSHION

09320-15008

$3.69

8

NUT

08316-1008A

$2.56

9

REINFORCE, REAR FENDER

63130-06J01

$343.55

10

GROMMET

09308-10017

$5.65
