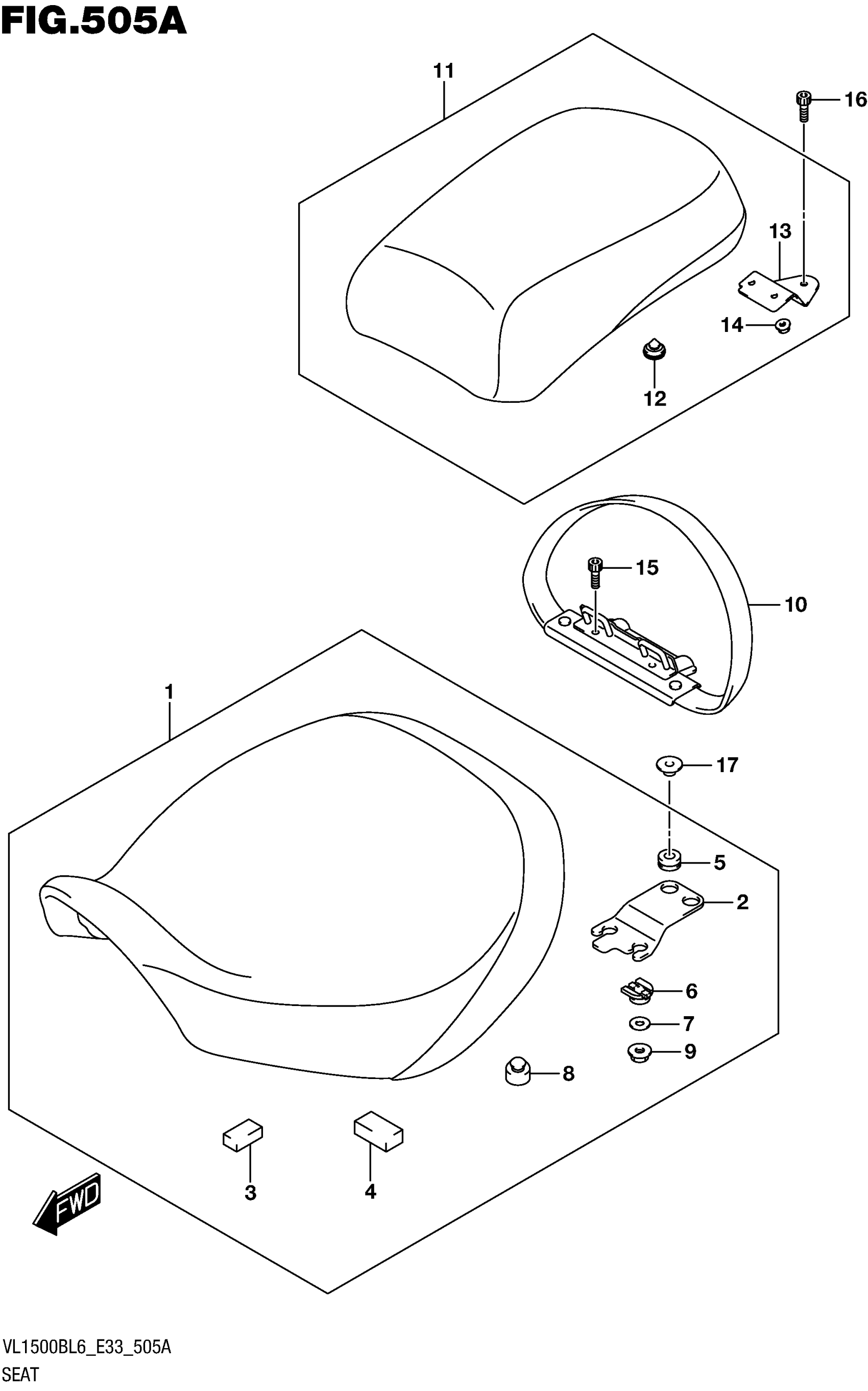

Suzuki VL1500BL6 (2016) SEAT Diagram

#

Description
Price

1

SEAT ASSY This part replaces 45100-06J00-V4Y.

45100-06J01-V4Y

$466.00

2

.BRACKET, SEAT

45115-06J00

$8.83

3

.CUSHION

45148-40H00

Unavailable

4

.CUSHION

45149-40H00

Unavailable

5

.CUSHION

45149-06J00

$5.90

6

CUSHION This part replaces 45215-06B00.

45215-06B01

$3.27

7

.WASHER (6.5X20X1.6)

09160-06088

$1.67

8

.CUSHION

09321-10011

$2.80

9

NUT

08319-3106A

$2.01

10

BAND,SEAT This part replaces 45180-06J00-V4Y.

45180-06J01-V4Y

$55.18

11

SEAT ASSY,PILLI This part replaces 45300-06J00-V4Y.

45300-06J01-V4Y

$216.68

12

.CUSHION (11.5X22X20)

09321-10002

$2.02

13

.BRACKET

45315-06J00

Unavailable

14

.NUT

08316-1006A

$2.19

15

BOLT (6X18)

09106-06064

$5.43

16

BOLT (8X16)

09106-08140

$5.75

17

SPACER

09169-06077

$6.38
