2016 Suzuki VL1500BL6 Rear Caliper Diagram

← All diagrams

Find the part on the Rear Caliper diagram for your 2016 Suzuki VL1500BL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

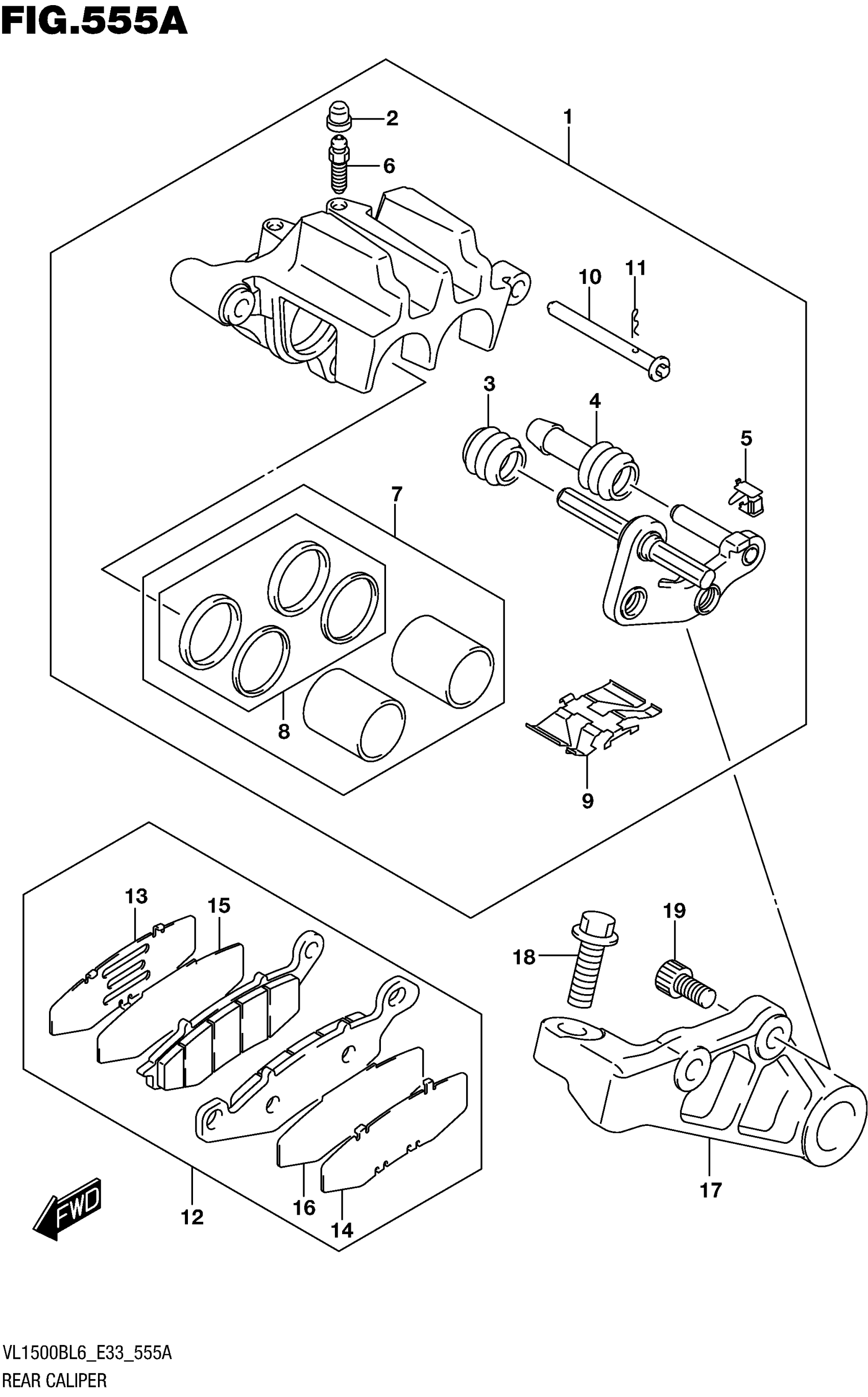

2016 Suzuki VL1500BL6 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, REAR

69100-01DB0-999

1
Out of stock

2

.CAP, BLEEDER PLUG

55156-66310

2
Out of stock

3

.BOOT, AXLE

59112-44B00

1
Out of stock

4

.INSULATOR, AXLE

59113-01D00

1
Out of stock

5

.GUIDE, PAD

59116-33D00

1
Out of stock

6

.BLEEDER

59121-18410

2
Out of stock

7

.PISTON SET

69100-01840

1
Out of stock

8

..SEAL SET, PISTON

59300-33841

1
Out of stock

9

.SPRING, PAD

69115-01D40

1
Out of stock

10

.PIN, PAD

69141-01D40

1
Out of stock

11

.CLIP, PAD PIN

69142-45000

1
Out of stock

12

PAD SET

69101-01810

1
Out of stock

13

.SHIM, PAD

59171-33D00

1
Out of stock

14

.SHIM, PAD NO.2

59172-33D00

1
Out of stock

15

.INSULATOR NO.1

69171-01D40

1
Out of stock

16

.INSULATOR NO.2

69172-01D40

1
Out of stock

17

BRACKET, REAR CALIPER

69721-48G30

1
Out of stock

18

BOLT (12X40)

09103-12109

1
Out of stock

19

BOLT (10X20)

09106-10062

2
Out of stock
