2016 Suzuki VL1500BL6 Front Master Cylinder Diagram

← All diagrams

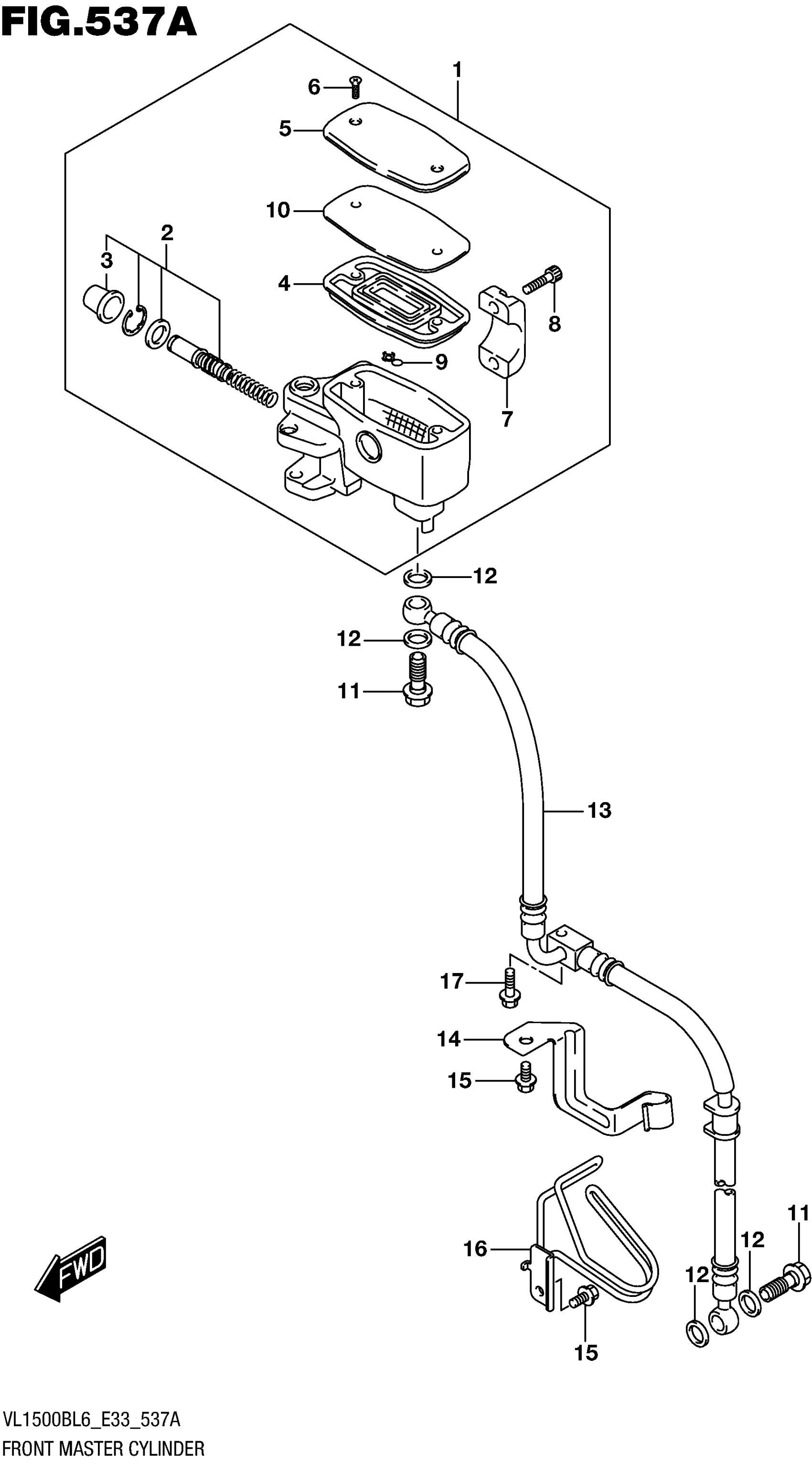

Find the part on the Front Master Cylinder diagram for your 2016 Suzuki VL1500BL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki VL1500BL6 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER

59600-10FE0

1
Out of stock

2

.PISTON/CUP SET

59600-03820

1
Out of stock

3

..BOOT

59666-44300

1
Out of stock

4

.DIAPHRAGM

59667-10F00

1

$11.40

In stock

5

.CAP

59669-10F40

1
Out of stock

6

.SCREW

69689-49300

2
Out of stock

7

.HOLDER

59671-10F20

1
Out of stock

8

.BOLT

07130-06207

2

$3.00

In stock

9

.PROTECTOR

59664-32F00

1
Out of stock

10

.PLATE

57437-10F00

1

$23.73

In stock

11

UNION

09360-10062

2
Out of stock

12

WASHER (10X15X1.5)

09161-10009

4
Out of stock

13

HOSE This part replaces 59480-06J10.

59480-06J11

1
Out of stock

14

CLAMP, FRONT BRAKE HOSE LH

59271-06J00

1
Out of stock

15

BOLT

01547-0612A

2
Out of stock

16

GUIDE, FRONT BRAKE HOSE

59540-06J00

1
Out of stock

17

BOLT

01547-0625A

1
Out of stock
