2016 Suzuki VL1500BL6 Radiator Hose Diagram

← All diagrams

Find the part on the Radiator Hose diagram for your 2016 Suzuki VL1500BL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

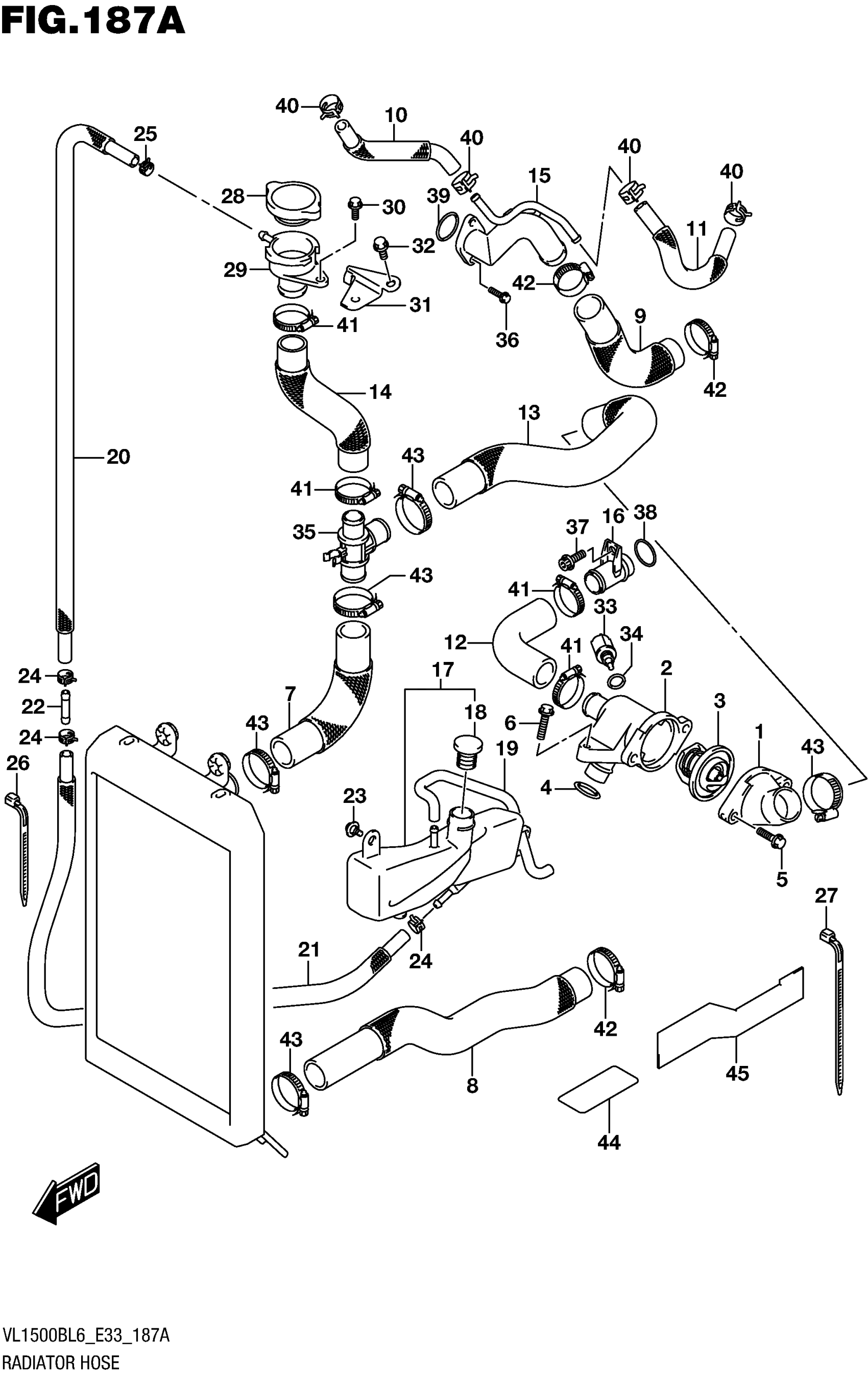

2016 Suzuki VL1500BL6 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, THERMOSTAT

17661-48G10

1
Out of stock

2

CONNECTOR, THERMOSTAT INLET

17662-40H00

1
Out of stock

3

THERMOSTAT,WATER This part replaces 17670-06G50.

17670-06G51

1
Out of stock

4

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

1
Out of stock

5

BOLT

01547-0620A

2
Out of stock

6

BOLT

01547-0625A

1
Out of stock

7

HOSE, RADIATOR INLET

17851-40H10

1
Out of stock

8

HOSE, RADIATOR OUTLET

17852-40H10

1
Out of stock

9

HOSE, CYLINDER INLET

17853-40H00

1
Out of stock

10

HOSE, WATER BYPASS UPPER

17854-40H00

1
Out of stock

11

HOSE, WATER BYPASS LOWER

17855-40H00

1
Out of stock

12

HOSE, RR CYLINDER HEAD OUTLET

17856-40H00

1
Out of stock

13

HOSE, THERMOSTAT OUTLET

17857-40H10

1
Out of stock

14

HOSE, CONDUCTION

17858-40H00

1
Out of stock

15

PIPE, CYLINDER WATER INLET

17860-40H00

1
Out of stock

16

UNION

17890-06G20

1
Out of stock

17

TANK ASSY, RESERVOIR

17910-40H00

1
Out of stock

18

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

19

HOSE, TANK OVERFLOW

17982-40H00

1
Out of stock

20

HOSE, TANK INLET NO.1

17981-40H00

1
Out of stock

21

HOSE (5X9X600) | L:600->500

09352-50901-600

1
Out of stock

22

UNION

09364-06005

1
Out of stock

23

BOLT (6X12)

09111-06085

1
Out of stock

24

CLIP

09401-08411

3
Out of stock

25

CLIP

09401-10411

1
Out of stock

26

CLAMP (L:125)

09407-14403

1
Out of stock

27

CLAMP (L:190)

09407-19401

2
Out of stock

28

CAP, RADIATOR (1.1)

17730-14G00

1
Out of stock

29

CONDUCTION, RADIATOR

17791-14G00

1
Out of stock

30

BOLT

01547-0512A

1
Out of stock

31

BRACKET, CONDUCTION

17792-40H00

1
Out of stock

32

BOLT

01547-0612A

1
Out of stock

33

SENSOR, WATER TEMP

13650-49X00

1
Out of stock

34

GASKET (12X17X1)

09168-12017

1
Out of stock

35

JOINT, 3 WAY

17891-48G00

1
Out of stock

36

BOLT (6X16)

09103-06274

2

$2.18

In stock

37

BOLT

07130-0612A

1
Out of stock

38

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

1
Out of stock

39

O RING (D:2.4,ID:26.2)

09280-26005

1
Out of stock

40

CLIP

09401-12414

4
Out of stock

41

CLAMP

09402-32512

4
Out of stock

42

CLAMP

09402-38512

3
Out of stock

43

CLAMP

09402-35501

5
Out of stock

44

TAPE

63131-10F00

1
Out of stock

45

CUSHION, RESERVOIR TANK HOSE

17912-06J00

1
Out of stock
