2016 Suzuki VL1500BL6 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2016 Suzuki VL1500BL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

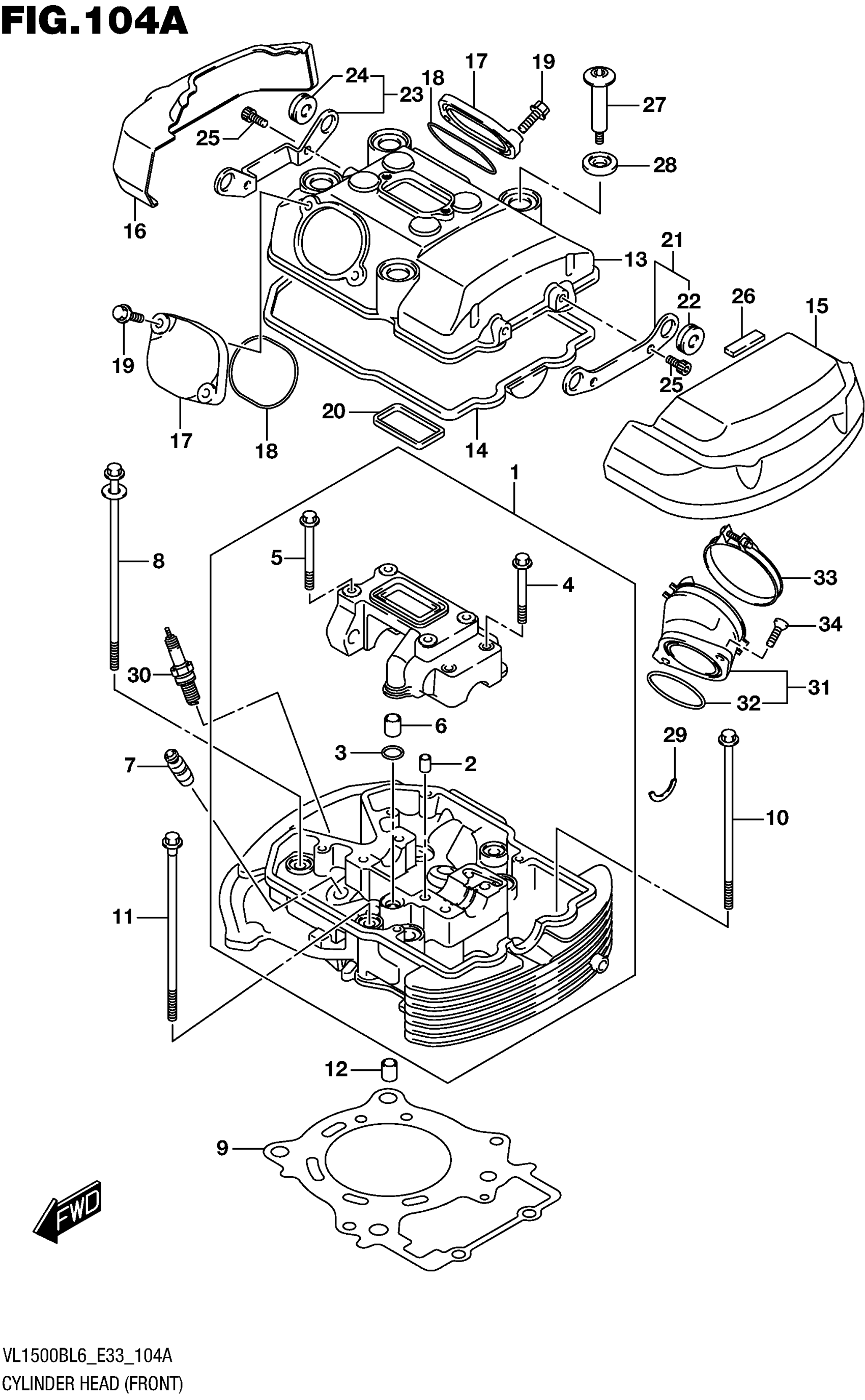

2016 Suzuki VL1500BL6 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER FRONT

11101-40H00

1
Out of stock

2

.PIN (8X11)

09206-08001

2
Out of stock

3

1

$2.09

In stock

4

BOLT

01547-0650A

2
Out of stock

5

BOLT

01547-0665A

4

$2.52

In stock

6

.PIN

04211-11129

1
Out of stock

7

GUIDE, VALVE (OS:0.3) | OPT

11115-32E70

4
Out of stock

8

BOLT, CYLINDER HEAD

11117-05H00

4

$17.18

In stock

9

1

$73.01

In stock

10

BOLT (8X160)

09103-08528

2

$8.07

In stock

11

BOLT (8X180)

09103-08529

2

$8.78

In stock

12

PIN

04211-13189

2
Out of stock

13

COVER, CYLINDER HEAD

11171-40H00

1
Out of stock

14

1

$37.12

In stock

15

1

$137.68

In stock

16

1

$111.91

In stock

17

CAP, INSPECTION

11176-40H00

2
Out of stock

18

O RING (D:2.4,ID:23)

09280-60004

2

$3.63

In stock

19

BOLT

01547-0620A

4
Out of stock

20

1

$9.35

In stock

21

BRACKET, HEAD COVER CAP NO.1

11180-40H00

1
Out of stock

22

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

2
Out of stock

23

BRACKET, HEAD COVER CAP NO.2

11180-40H10

1
Out of stock

24

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

2
Out of stock

25

BOLT

07130-0612A

4
Out of stock

26

CUSHION, HEAD COVER CAP

94424-03H00

1
Out of stock

27

BOLT (7X57)

09106-07022

4

$9.90

In stock

28

WASHER

11191-27E00

4
Out of stock

29

C-RING

09390-22002

1
Out of stock

30-1

2

$10.88

In stock

30-2

2

$11.10

In stock

30-3

2

$10.35

In stock

30-3

1

$10.35

In stock

30-4

2

$14.37

In stock

30-4

1

$14.37

In stock

31

PIPE ASSY, INTAKE

13101-40HA0

1

$84.82

In stock

32

1

$4.00

In stock

33

CLAMP

13170-40H01

1
Out of stock

34

BOLT (6X20.5)

09120-06008

2
Out of stock
