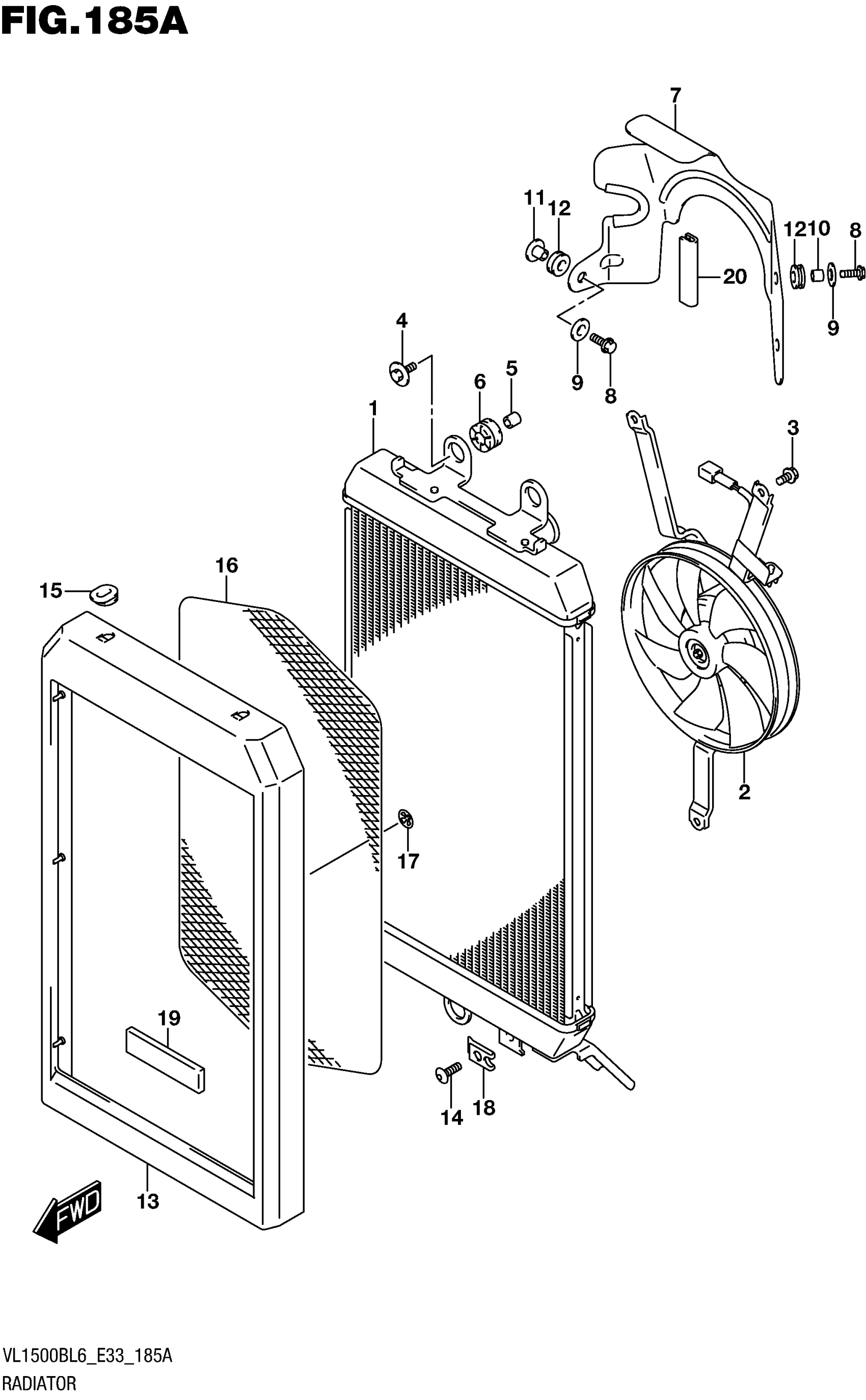

Suzuki VL1500BL6 (2016) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-40H10

$1,161.00

2

FAN ASSY, RADIATOR

17800-40H00

$711.80

3

BOLT

17711-40H00

Unavailable

4

BOLT (6X25)

09118-06097

$2.50

5

SPACER (6.5X10X12)

09180-06290

$2.35

6

CUSHION

09320-10051

$2.99

7

SHIELD, RADIATOR HEAT

17771-40H10

Unavailable

8

..BOLT

01547-0620B

$2.45

9

WASHER (6.5X20X1.2)

09160-06152

$2.28

10

SPACER | LH

09180-06360

Unavailable

11

SPACER (6.2X8.4X6.9) | RH

09180-06325

$3.79

12

CUSHION

09320-08083

Unavailable

13

COVER, RADIATOR

17760-40H00

$59.07

14

SCREW (6X16)

09139-06039

$2.19

15

CUSHION | UPPER

09320-03004

$2.12

16

NET, RADIATOR COVER

17765-40H00

Unavailable

17

NUT

09148-03010

$2.63

18

NUT

09148-06021

$3.56

19

CUSHION

92141-43EU0

Unavailable

20

MOLDING

17762-18H00

Unavailable
