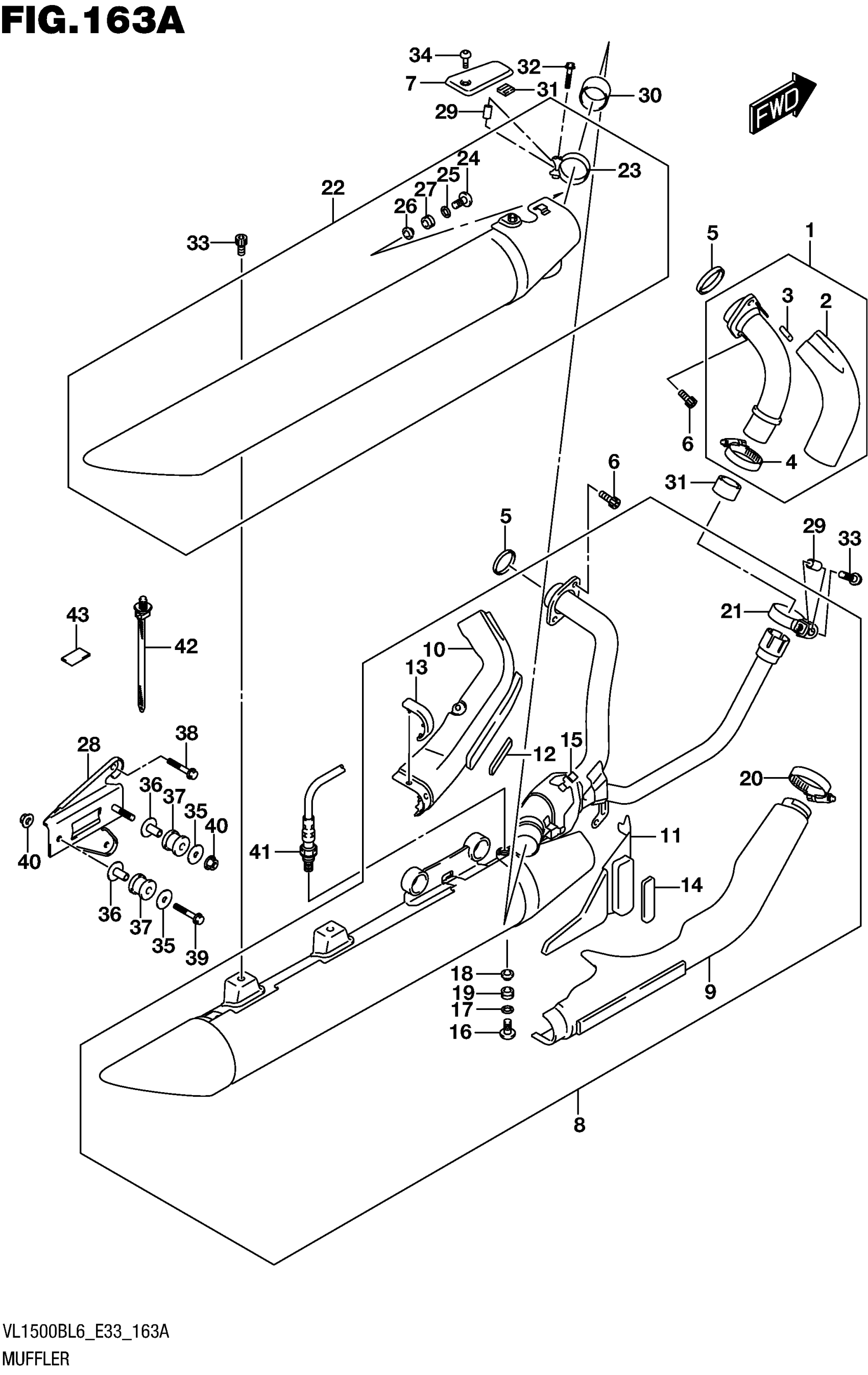

Suzuki VL1500BL6 (2016) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST FRONT

14150-40H11

Unavailable

2

.COVER,EXH PIPE FR

14159-40H10

Unavailable

3

.GROMMET

14795-10FA0

$5.58

4

.CLAMP

09402-45503

Unavailable

5

GASKET, EXHAUST PIPE

14181-31D00

$10.28

6

BOLT (8X30)

09106-08175

$4.10

7

COVER, MUFFLER REAR UPPER

14260-06J10

$111.53

8

MUFFLER, FRONT

14305-06J21

Unavailable

9

.COVER, EXHAUST FRONT

14170-06J10

$293.80

10

.COVER, EXHAUST REAR

14180-06J11

$262.87

11

.COVER, EXHAUST CENTER

14250-06J11

$242.23

12

.PROTECTOR, UPPER

14780-48G10

$42.00

13

.CUSHION, EXHAUST PIPE COVER

14782-06J00

Unavailable

14

.PROTECTOR, LOWER

14790-48G20

$39.43

15

.GROMMET

14795-10FA0

$5.58

16

.SCREW (6X20)

09139-06028

$3.70

17

.WASHER (6.5X20X1)

09160-06141

Unavailable

18

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

19

.CUSHION

09320-08070

$11.57

20

.CLAMP

09402-45503

Unavailable

21

.CLAMP, CONNECTOR

14459-40H00

$29.97

22

BODY, MUFFLER REAR

14340-06J21

Unavailable

23

.CONNECTOR

14459-40H00

$29.97

24

.SCREW (6X20)

09139-06028

$3.70

25

.WASHER (6.5X20X1)

09160-06141

Unavailable

26

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

27

.CUSHION

09320-08070

$11.57

28

BRACKET, MUFFLER SUPPORT

14410-40H00

Unavailable

29

SPACER, MUFFLER CLAMP

14458-45G10

$8.18

30

CONNECTOR

14771-40H00

$36.55

31

GROMMET

14795-10FA0

$5.58

32

BOLT (8X35)

09103-08365

$3.91

33

BOLT (8X20)

09106-08107

$2.81

34

SCREW (6X10)

09139-06172

$3.04

35

WASHER (8.5X33X1.5)

09160-08146

$2.60

36

SPACER (8.6X12X27.1)

09180-08156

$6.70

37

CUSHION

09320-12049

$10.68

38

BOLT (8X16)

01550-0816A

$2.32

39

BOLT

01550-0845A

$3.14

40

NUT

08361-2508A

$1.97

41

SENSOR, OXYGEN

18213-48G00

Unavailable

42

CLAMP (L:154)

09407-17403

$4.91

43

CUSHION, O2 SENSOR LEAD

44558-45G00

Unavailable
