2016 Suzuki VL1500BL6 Fuel Tank Diagram

← All diagrams

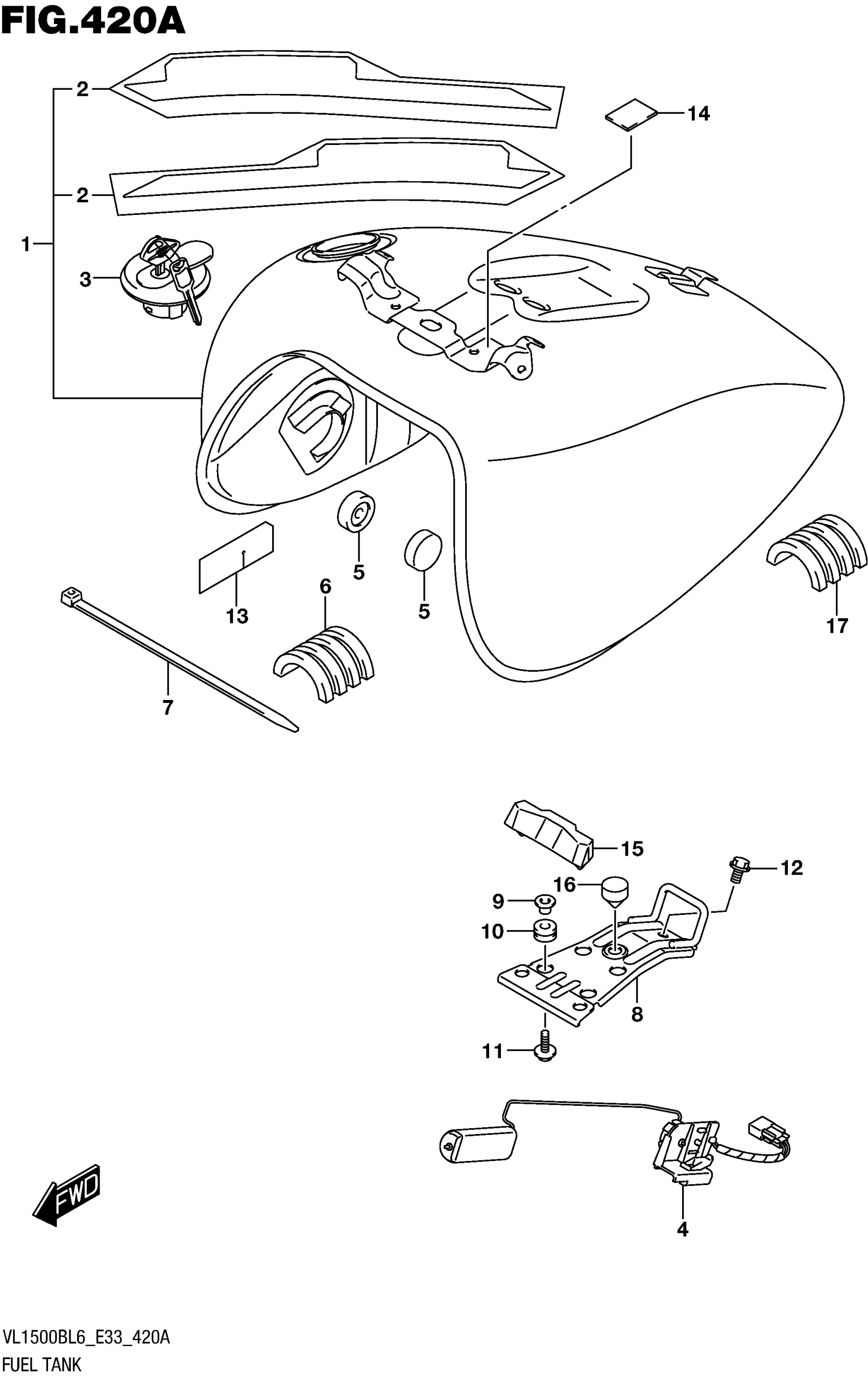

Find the part on the Fuel Tank diagram for your 2016 Suzuki VL1500BL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki VL1500BL6 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,272.27

In stock

2

.TAPE SET FUEL TANK

68110-06J10-JGS

1
Out of stock

2

(ORANGE/BLACK)

68110-06J10-JGS

1
Out of stock

3

CAP SET,FUEL TA This part replaces 44200-41840.

44200-41842

1
Out of stock

4

GAUGE ASSY,FUEL This part replaces 34810-40H00.

34810-40H01

1
Out of stock

5

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

6

CUSHION, TANK SIDE

44541-04F00

2
Out of stock

7

CLAMP (L:300)

09407-30402

4

$5.25

In stock

8

BRACKET, REAR

44530-06J00

1
Out of stock

9

WASHER

09169-06062

4
Out of stock

10

4

$2.23

In stock

11

BOLT (6X20)

09116-06192

4
Out of stock

12

BOLT (8X12)

01550-0812A

1
Out of stock

13

PROTECTOR

44283-06J00

2
Out of stock

14

CUSHION

63191-25C00

1
Out of stock

15

CUSHION

44545-06J00

1
Out of stock

16

CUSHION

09321-10011

1
Out of stock

17

CUSHION, TANK SIDE REAR

44541-06J00

2
Out of stock
