Description

Price

1

WHEEL, FRONT (17M/CXMT3.00)

54111-06J10-019

$650.73

1

(BLACK)

54111-06J10-019

$650.73

2

SPACER, FRONT WHEEL BEARING

54731-48G00

$65.62

3-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$8.60

3-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$10.07

3-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$11.47

4

.SEAL,OIL (32X52X7)

09285-32004

$7.98

5

BEARING (25X52X15) This part replaces 09262-25167.

09262-25191

$24.28

6

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

7

TIRE,FR | G835 RADIAL G This part replaces 55110-06J00.

55110-06J01

$328.92

7

TIRE,FR | BRIDGESTONE This part replaces 55110-06J00.

55110-06J01

$328.92

8

AXLE, FRONT

54711-48G00

Unavailable

9

SPACER, FRONT AXLE LH

54741-48G00

$31.57

10

DISC, FRONT BRAKE

59220-06J00

$389.28

11

BOLT (8X21)

09106-08160

$3.57

12

COUNTER, WEIGHT

54139-06J00

$87.37

13

BOLT

07130-0620A

$2.50

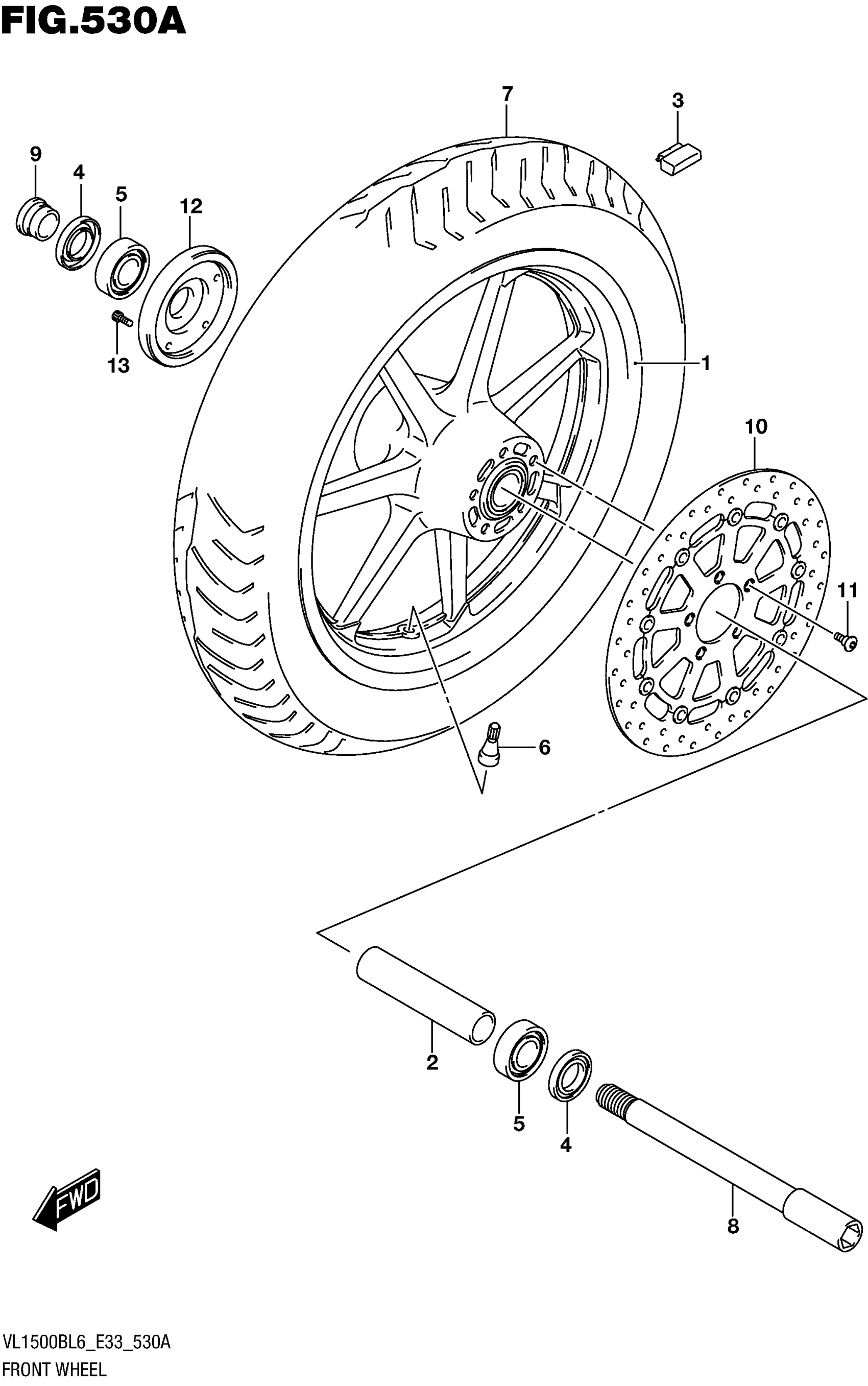

Suzuki VL1500BL6 (2016) FRONT WHEEL Diagram
