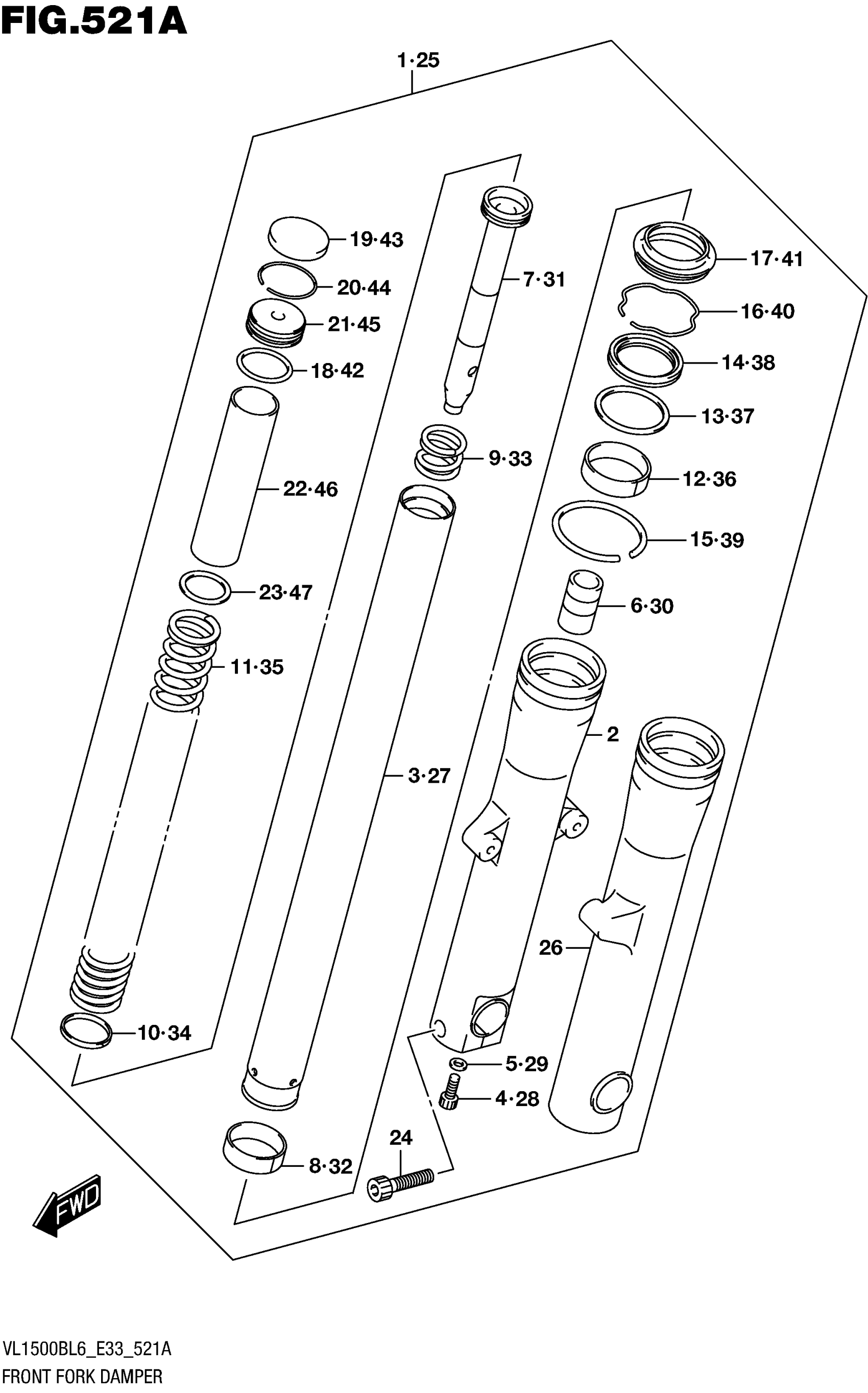

Suzuki VL1500BL6 (2016) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,FRO This part replaces 51103-06J20.

51103-06J21

$911.79

2

.TUBE, OUTER RH

51131-06J20

Unavailable

3

.TUBE, INNER

51110-06J00

$534.35

4

.BOLT, CENTER

51147-06F10

$5.98

5

O RING This part replaces 51148-31030.

51148-36011

$3.56

6

.PIECE, OIL LOCK

51195-27G00

$30.22

7

.CYLINDER

51146-06J00

Unavailable

8

.BUSH, SLIDE

51121-06J00

$12.87

9

.SPRING, REBOUND

51177-12C00

Unavailable

10

.RING, PISTON

51196-06J00

Unavailable

11

.SPRING

51171-06J00

Unavailable

12

.GUIDE, BUSH

51167-06J00

$16.52

13

.SPACER, SEAL

51158-27C40

$8.53

14

.OIL SEAL

51153-06J00

$28.67

15

.GUIDE, CASE

51469-06J00

Unavailable

16

.RING, OIL SEAL STOPPER

51156-27C40

$5.19

17

.DUST SEAL

51571-06J00

$19.68

18

.O RING

51117-06J00

$4.80

19

.CAP, FORK

51189-06J20

$10.77

20

.STOPPER, RING

51169-06J00

Unavailable

21

.SEAT, SPRING

51172-06J00

Unavailable

22

.SPACER, SPRING

51176-12C00

Unavailable

23

.SEAT, SPRING LOWER

51186-17C00

$7.53

24

.BOLT | RH

51328-22H00

$9.22

25

DAMPER ASSY, FRONT FORK LH

51104-06J20

$1,267.35

26

.TUBE, OUTER LH

51141-06J20

$639.27

27

.TUBE, INNER

51110-06J00

$534.35

28

.BOLT, CENTER

51147-06F10

$5.98

29

O RING This part replaces 51148-31030.

51148-36011

$3.56

30

.PIECE, OIL LOCK

51195-27G00

$30.22

31

.CYLINDER

51146-06J00

Unavailable

32

.BUSH, SLIDE

51121-06J00

$12.87

33

.SPRING, REBOUND

51177-12C00

Unavailable

34

.RING, PISTON

51196-06J00

Unavailable

35

.SPRING

51171-06J00

Unavailable

36

.GUIDE, BUSH

51167-06J00

$16.52

37

.SPACER, SEAL

51158-27C40

$8.53

38

.OIL SEAL

51153-06J00

$28.67

39

.GUIDE, CASE

51469-06J00

Unavailable

40

.RING, OIL SEAL STOPPER

51156-27C40

$5.19

41

.DUST SEAL

51571-06J00

$19.68

42

.O RING

51117-06J00

$4.80

43

.CAP, FORK

51189-06J20

$10.77

44

.STOPPER, RING

51169-06J00

Unavailable

45

.SEAT, SPRING

51172-06J00

Unavailable

46

.SPACER, SPRING

51176-12C00

Unavailable

47

.SEAT, SPRING LOWER

51186-17C00

$7.53
