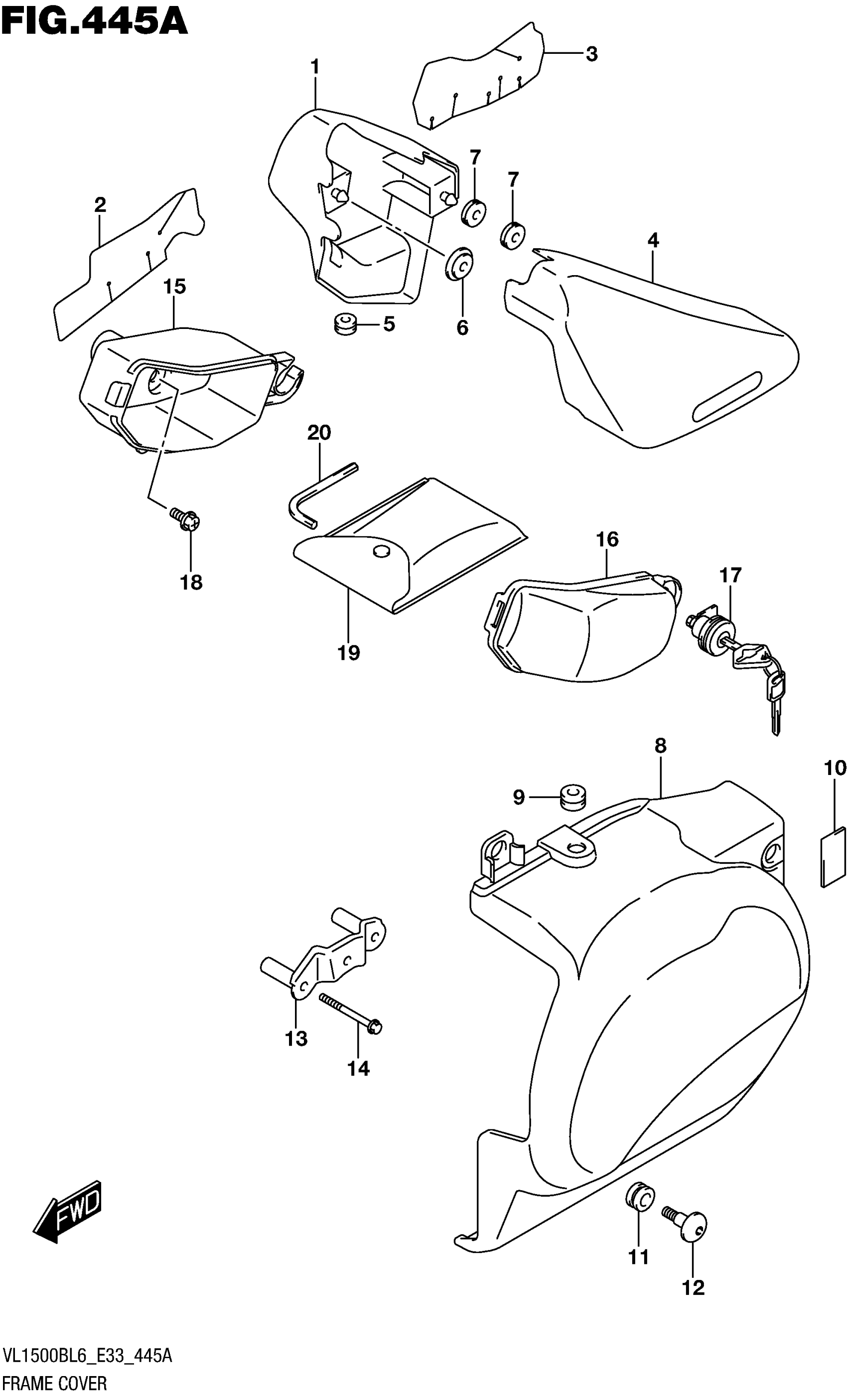

Suzuki VL1500BL6 (2016) FRAME COVER Diagram

#

Description
Price

1

COVER, SIDE RH (ORANGE)

47111-06J00-YUK

$100.27

2

SHIELD, SIDE COVER RH

47166-06J10

Unavailable

3

SHIELD, SIDE COVER RH

47166-06J20

$5.65

4

COVER, SIDE LH (ORANGE)

47211-40H00-YUK

Unavailable

5

CUSHION, SIDE COVER LOWER RH

47167-06J00

$7.65

6

CUSHION, SIDE COVER FRONT

47191-06J00

$4.85

7

CUSHION | REAR

09320-08018

$3.04

8

COVER, LOWER LH

47231-40H20

$120.02

9

CUSHION | LH

09320-06504

$4.96

10

CUSHION | LH

51827-01A00

$6.17

11

CUSHION | LH

09320-09016

$1.97

12

BOLT (6X20) | LH

09139-06190

$4.17

13

BRACKET, LOWER COVER LH

47250-06J00

$29.15

14

BOLT

01547-0650A

$2.46

15

BODY, LUGGAGE BOX

92211-06J00

Unavailable

16

LID

92212-06J00

Unavailable

17

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$75.92

18

BOLT (6X12)

09111-06107

$2.60

19

TOOL ASSY This part replaces 09800-21056.

09800-21100

$40.80

20

SPANNER, 6 HEXAGON

09816-00050

$5.03
