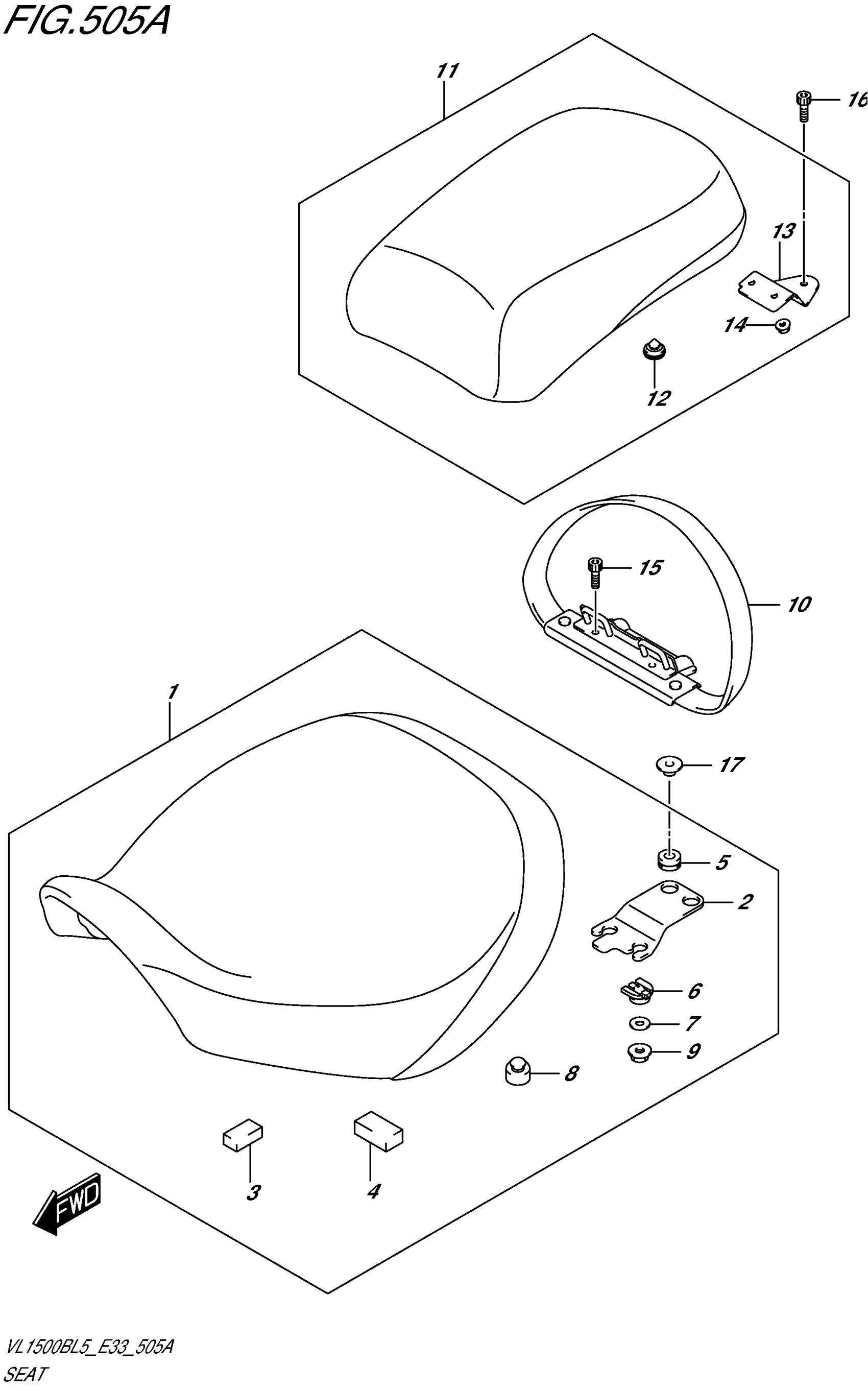

Suzuki VL1500BL5 (2015) SEAT Diagram

#

Description
Price

1

SEAT ASSY This part replaces 45100-06J00-V4Y.

45100-06J01-V4Y

$360.16

2

BRACKET, SEAT

45115-06J00

$7.82

3

CUSHION

45148-40H00

Unavailable

4

CUSHION

45149-40H00

Unavailable

5

CUSHION

45149-06J00

$5.22

6

CUSHION This part replaces 45215-06B00.

45215-06B01

$3.47

7

.WASHER (6.5X20X1.6)

09160-06088

$1.65

8

CUSHION

09321-10011

$2.91

9

NUT

08319-3106A

$2.03

10

BAND,SEAT This part replaces 45180-06J00-V4Y.

45180-06J01-V4Y

$48.90

11

SEAT ASSY,PILLI This part replaces 45300-06J00-V4Y.

45300-06J01-V4Y

$194.72

12

CUSHION (11.5X22X20)

09321-10002

$2.22

13

BRACKET

45315-06J00

Unavailable

14

NUT

08316-1006A

$2.19

15

BOLT (6X18)

09106-06064

$6.02

16

BOLT (8X16)

09106-08140

$6.38

17

SPACER

09169-06077

$5.88
