Description

Price

1

CAP, REAR SWINGINGARM COVER

41899-42F10

$18.87

2

SWINGINGARM, REAR (BLACK)

61100-06J00-019

Unavailable

3

COVER, LH (BLACK)

61126-40H00-019

$269.72

4

BOLT, COVER REAR

61127-41F20

$23.95

5

SCREW (8X16)

09139-08007

$3.70

6

BEARING (22X29X25)

09263-22071

Unavailable

7

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

8

CUSHION This part replaces 09320-22003.

09320-22004

$3.73

9

SHAFT, PIVOT

61211-22D00

Unavailable

10

COVER, PIVOT LH

61230-40H00

Unavailable

11

SPACER,PIVOT BEARING

61251-31E00

$59.25

12

SPACER, PIVOT CENTER

61280-48G01

Unavailable

13

BOOT, PROPELLER SHAFT

61372-40H10

Unavailable

14

NUT

09159-18007

$19.68

15

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$30.93

16

WASHER

08322-0118B

$2.70

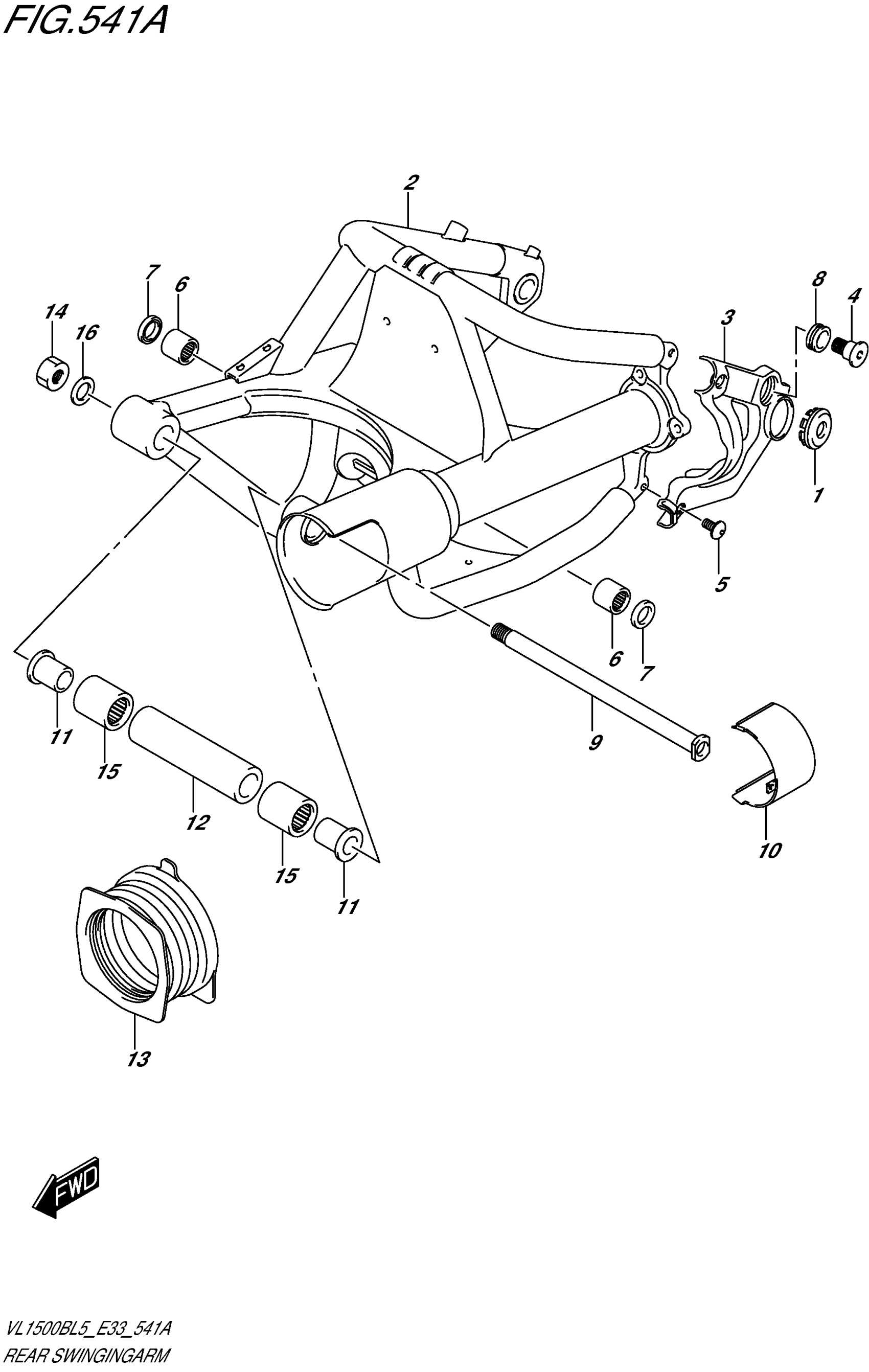

Suzuki VL1500BL5 (2015) REAR SWINGINGARM Diagram

CAP, REAR SWINGINGARM COVER

SWINGINGARM, REAR (BLACK)

COVER, LH (BLACK)

BOLT, COVER REAR

SCREW (8X16)

BEARING (22X29X25)

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

CUSHION This part replaces 09320-22003.

SHAFT, PIVOT

COVER, PIVOT LH

SPACER,PIVOT BEARING

SPACER, PIVOT CENTER

BOOT, PROPELLER SHAFT

NUT

BEARING (25X33X35) This part replaces 09263-25059.

WASHER
