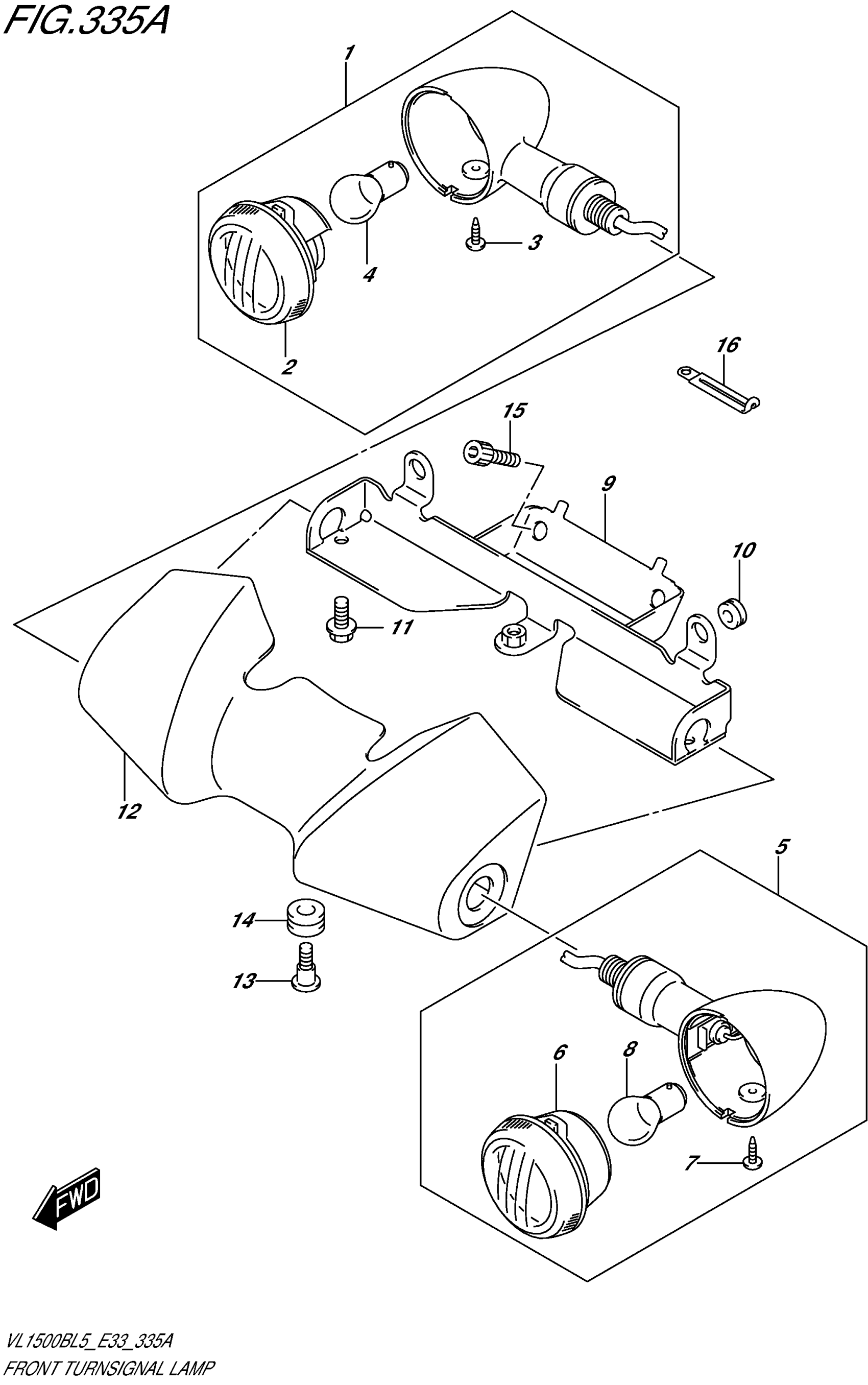

Suzuki VL1500BL5 (2015) FRONT TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-38AA0

$149.93

2

LENS

35610-38AE1

$30.10

3

SCREW (4X10)

35623-38AA0

$4.89

4

BULB (12V,21W)

09471-12045

$3.06

5

LAMP ASSY, FRONT TURNSIGNAL LH

35602-38AA0

$157.47

6

LENS

35630-38AE1

$30.53

7

SCREW (4X10)

35623-38AA0

$4.89

8

BULB (12V,21W)

09471-12045

$3.06

9

BRACKET

35620-06J00

$66.15

10

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.19

11

BOLT (6X8)

09103-06275

$2.21

12

COVER, FRONT TURNSIGNAL

35641-06JB1

$155.32

13

SCREW (6X16)

09139-06146

$2.80

14

CUSHION

09320-09016

$2.01

15

BOLT

07130-0816B

$4.62

16

CLAMP (L:45)

09404-06429

$1.88
