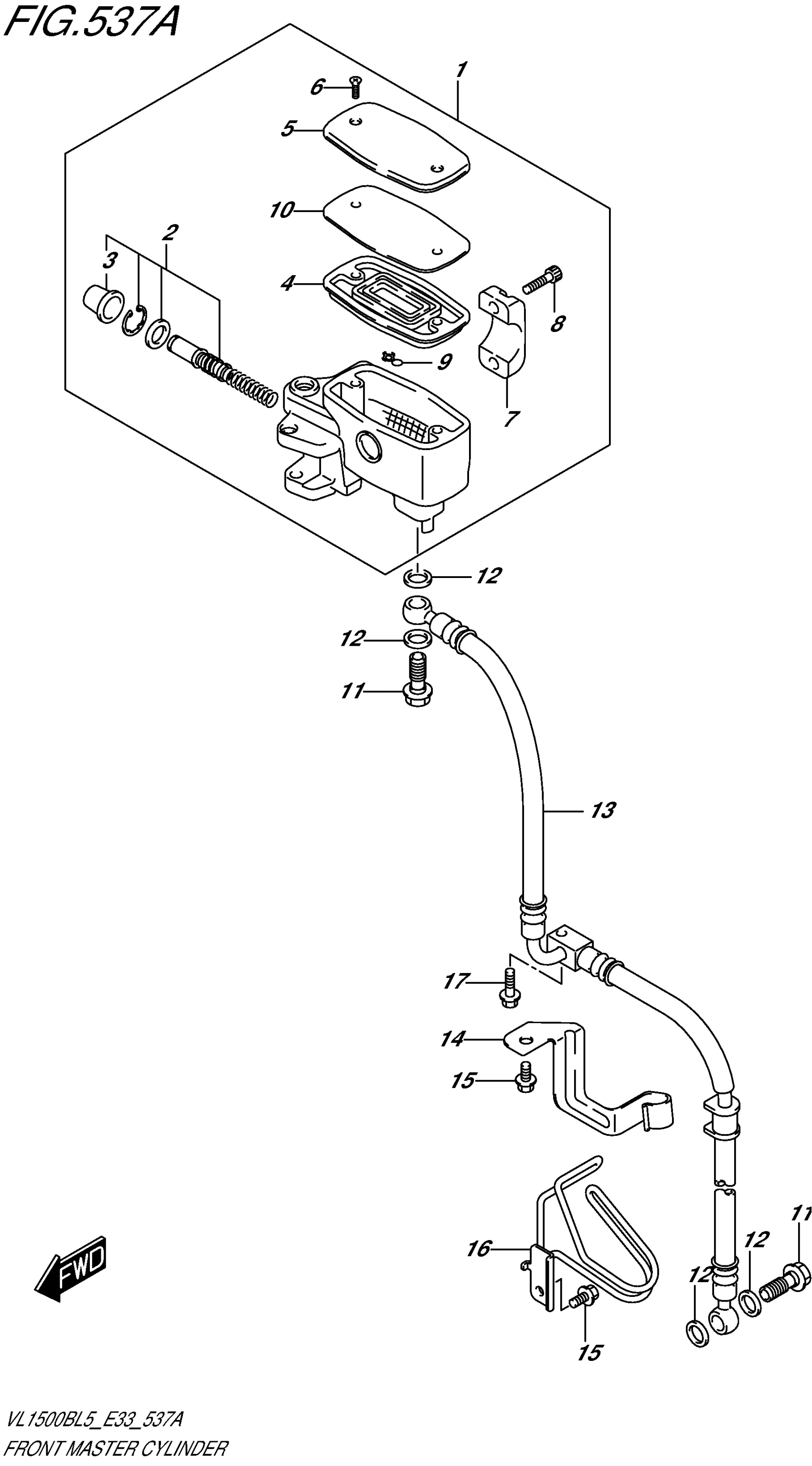

Suzuki VL1500BL5 (2015) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-10FE0

$318.50

2

PISTON/CUP SET

59600-03820

$42.02

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-10F00

$10.10

5

CAP

59669-10F40

$49.67

6

SCREW

69689-49300

$1.91

7

HOLDER

59671-10F20

Unavailable

8

BOLT

07130-06207

$3.04

9

PROTECTOR

59664-32F00

$11.68

10

PLATE

57437-10F00

$21.03

11

UNION

09360-10062

$6.43

12

WASHER (10X15X1.5)

09161-10009

$1.84

13

HOSE This part replaces 59480-06J10.

59480-06J11

$114.05

14

CLAMP, FRONT BRAKE HOSE LH

59271-06J00

Unavailable

15

BOLT

01547-0612A

$2.03

16

GUIDE, FRONT BRAKE HOSE

59540-06J00

Unavailable

17

BOLT

01547-0625A

$2.01
