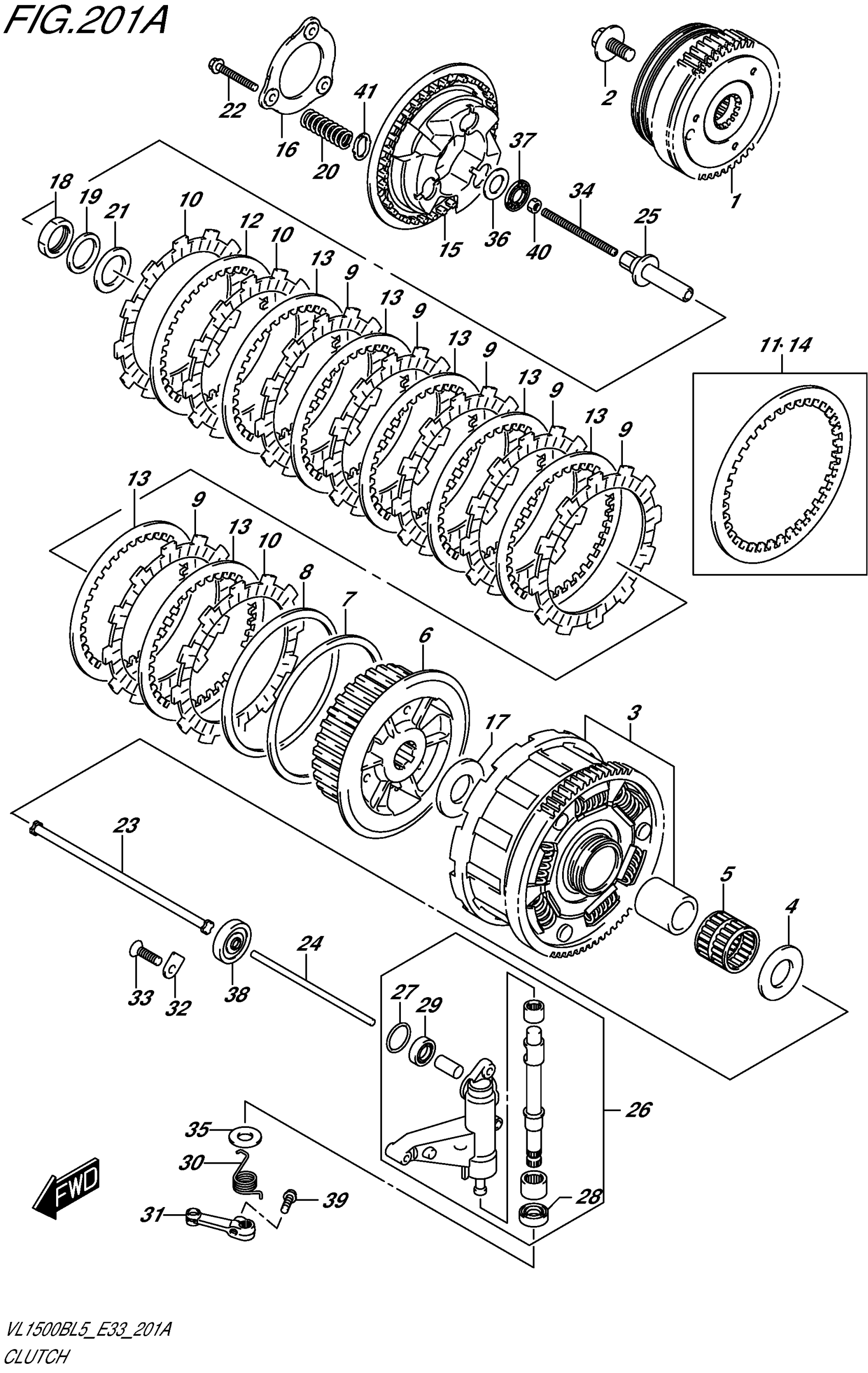

Suzuki VL1500BL5 (2015) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (NT:54)

21100-40821

Unavailable

2

BOLT (14X28)

09103-14010

$17.50

3

GEAR This part replaces 21200-40890.

21200-40891

$551.97

4

WASHER (25X52X2.5)

09160-25074

$7.82

5

BEARING (35X40X39.8)

09263-35013

$35.56

6

HUB, CLUTCH SLEEVE

21411-06J10

$162.35

7

.SEAT,WAVE WASHER

21471-24F00

$14.26

8

.WASHER,CLUTCH PLATE WAVE

21472-24F00

$15.50

9

PLATE, CLUTCH DRIVE (T:3.8)

21441-31J00

$24.15

10

.PLATE,CLUTCH DRIVE NO.2 (T:3

21442-31J00

$24.15

11

PLATE, CLUTCH DRIVEN (T:1.6)

21451-31J00

$15.32

12

.PLATE,CLUTCH DRIVEN NO.2 (T:

21452-31J00

$14.75

13

.PLATE,CLUTCH DRIVEN NO.1 (T:

21451-24F00

$11.59

14

PLATE, CLUTCH DRIVEN (T:2.3)

21451-24F10

$11.59

15

DISC, CLUTCH PRESSURE

21462-31J00

$116.07

16

.PLATE,STOPPER

21414-31J00

$19.43

17

.WASHER (25X50X2.5)

09160-25056

$11.61

18

NUT

09159-24010

$13.22

19

WASHER

09164-24008

$4.60

20

SPRING,CLUTCH

21413-31J00

$9.00

21

SHIM (25X38X1)

09181-25223

$3.21

22

.BOLT,CLUTCH SPRING

21412-31J00

$4.12

23

ROD, CLUTCH

23110-24F00

$22.23

24

ROD, CLUTCH PUSH LH

23111-40H00

Unavailable

25

PIECE, CLUTCH PUSH

23121-41G00

$49.02

26

CAMSHAFT SET, CLUTCH RELEASE

23120-41810

Unavailable

27

O RING (D:2.5,ID:21)

09280-21008

$1.91

28

OIL SEAL (10X20X6)

09282-10012

$7.98

29

OIL SEAL (10X17X5)

09285-10004

$3.37

30

SPRING, CLUTCH RELEASE RETURN

23125-48G00

$3.95

31

ARM, CLUTCH RELEASE

23271-48G10

$91.12

32

RETAINER

24741-20A00

$2.81

33

SCREW (6X12)

09126-06011

$2.03

34

SCREW (6X73)

09134-06015

$6.88

35

WASHER (10.5X24X1)

09160-10020

$2.05

36

WASHER (15.5X28X1)

09160-15045

$3.89

37

BEARING (15X28X2)

09263-15003

$8.29

38

OIL SEAL (6X18X5)

09283-06005

$11.28

39

BOLT

01547-0620A

$2.03

40

NUT

08310-0006A

$1.84

41

.SEAT,CLUTCH SPRING

21415-31J00

$15.45
