2015 Suzuki VL1500BL5 Battery Holder Diagram

← All diagrams

Find the part on the Battery Holder diagram for your 2015 Suzuki VL1500BL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

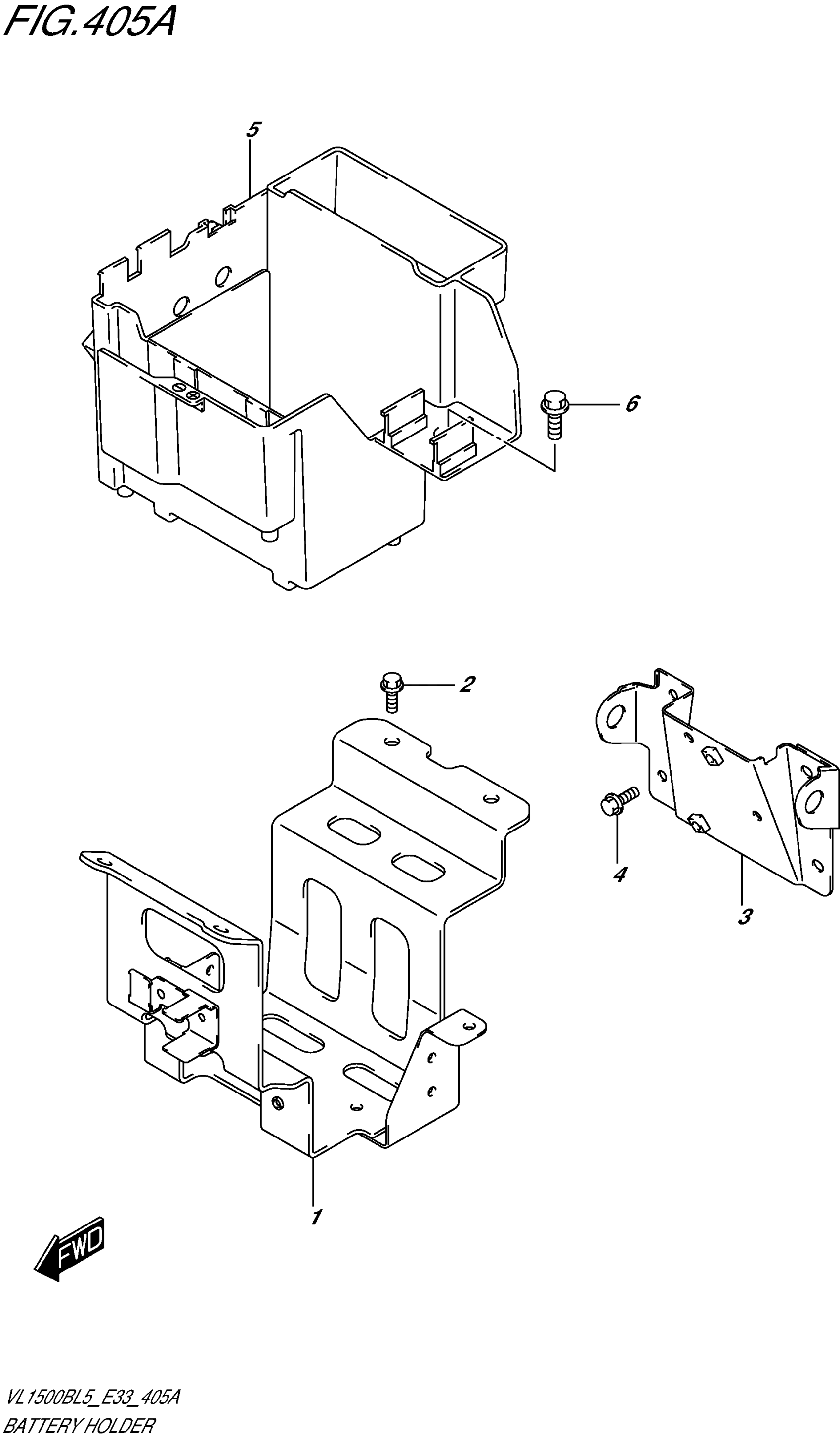

2015 Suzuki VL1500BL5 Battery Holder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, BATTERY

41540-06J10

1
Out of stock

2

BOLT (8X12)

01550-0812A

4
Out of stock

3

HOLDER, ELECTRIC PARTS

41550-06J00

1
Out of stock

4

BOLT

01547-0616A

4
Out of stock

5

HOLDER, ELECTRIC PARTS

47431-40H00

1
Out of stock

6

BOLT (6X16)

09113-06010

3
Out of stock
