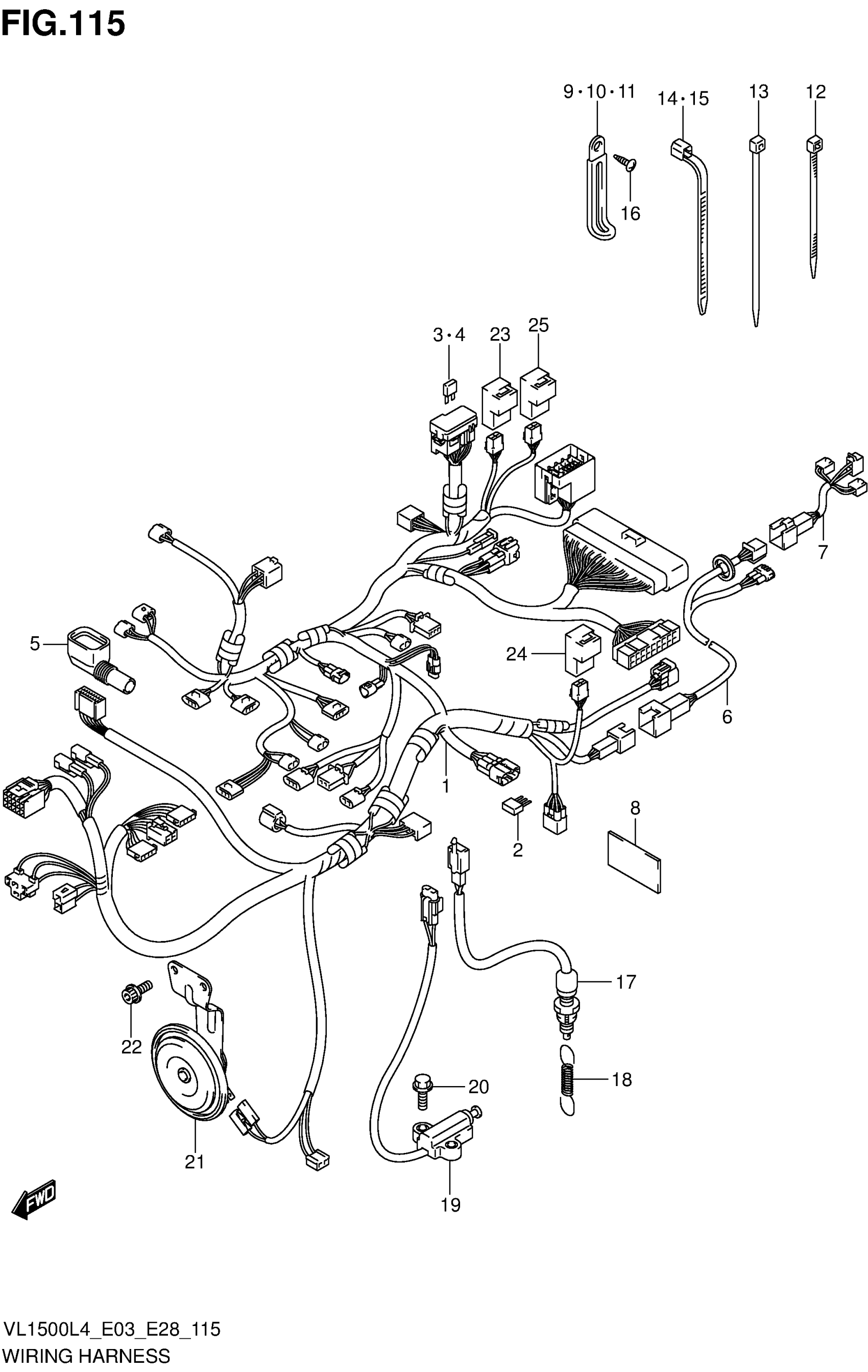

Suzuki VL1500BL4 (2014) WIRING HARNESS (VL1500L4 E28) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-06J30

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$13.16

3

FUSE (10A)

09481-10501

$2.06

4

FUSE (15A)

09481-15501

$2.02

5

COVER, CONNECTOR

36618-41G00

Unavailable

6

WIRE, REAR COMBINATION

36858-06J00

$98.80

7

WIRE, REAR COMBINATION NO.2

36856-41F00

$36.82

8

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

9

CLAMP (L:45)

09404-06429

$1.83

10

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

11

CLAMP (L:135)

09404-06435

$3.68

12

CLAMP (L:95)

09407-10403

Unavailable

13

CLAMP (L:145)

09407-14407

$3.57

14

CLAMP (L:190)

09407-19401

$3.05

15

CLAMP (L:235)

09407-25401

$4.66

16

SCREW

03541-0512A

$1.49

17

SWITCH ASSY, STOP LAMP

37740-19F00

$31.28

18

SPRING

09443-06077

$5.60

19

SWITCH ASSY,SID This part replaces 37840-22H00.

37840-22H01

$85.15

20

BOLT

01547-0625A

$2.01

21

HORN ASSY

38500-40H00

$87.70

22

BOLT

01550-0612B

$2.39

23

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

24

RELAY ASSY, FAN MOTOR

38740-24X50

$45.20

25

RELAY ASSY, HEADLAMP

38740-24A00

$63.30
