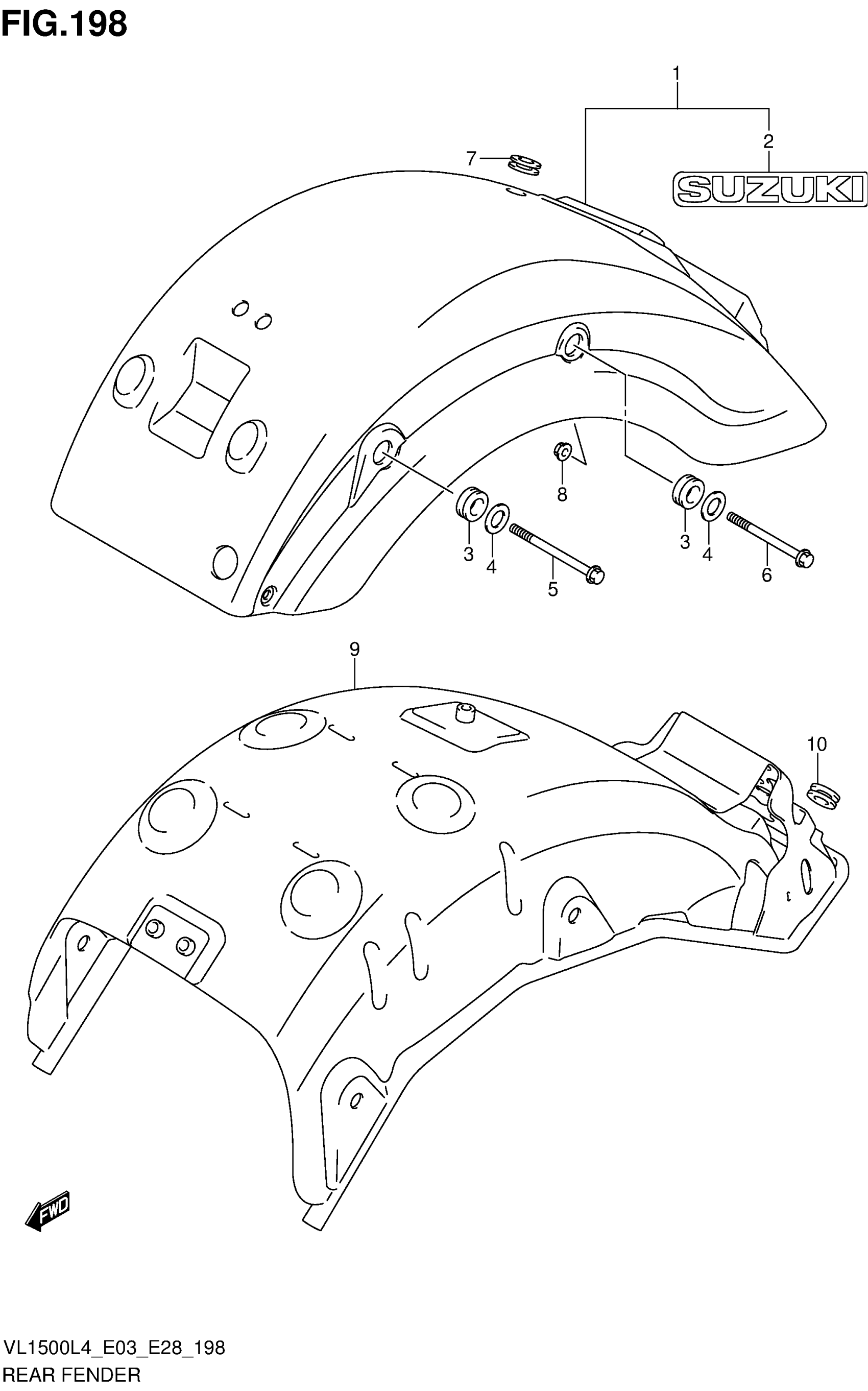

Suzuki VL1500BL4 (2014) REAR FENDER (VL1500L4 E28) Diagram

FENDER, REAR (BLUE)

63110-06J00-YKZ

Unavailable

.EMBLEM,"SUZUKI" (SILVER) This part replaces 68271-34A00-YES.

68271-34A01-YES

$9.08

CUSHION

47191-24F00

$5.09

WASHER (15.5X26X2.3)

09160-15002

$1.76

BOLT | FRONT

63161-06J00

Unavailable

BOLT | REAR

63161-41F00

$9.25

CUSHION

09320-15008

$3.69

NUT

08316-1008A

$2.56

REINFORCE, REAR FENDER This part replaces 63130-06J00.

63130-06J01

$343.55

GROMMET

09308-10017

$5.65
