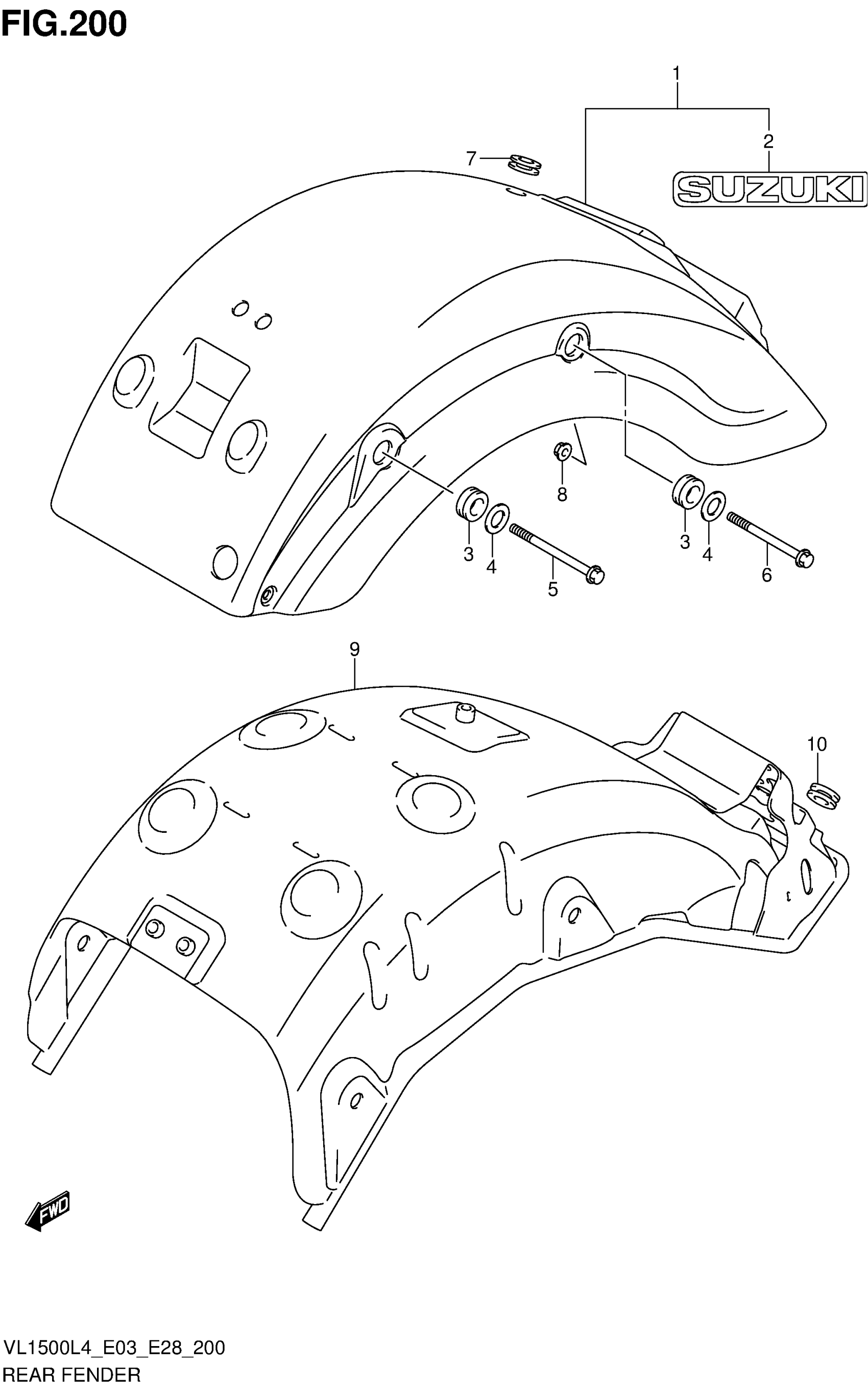

Suzuki VL1500BL4 (2014) REAR FENDER (VL1500BL4 E03) Diagram

FENDER,REAR This part replaces 63110-06J00-6UX.

63110-06J01-6UX

$1,316.82

EMBLEM,"SUZUKI" This part replaces 68271-34A00-YJH.

68271-34A01-YJH

$8.35

CUSHION

47191-24F00

$5.17

WASHER (15.5X26X2.3)

09160-15002

$1.91

BOLT | FRONT

63161-06J00

Unavailable

BOLT | REAR

63161-41F00

$9.40

CUSHION

09320-15008

$3.89

NUT

08316-1008A

$2.45

REINFORCE, REAR FENDER This part replaces 63130-06J00.

63130-06J01

$311.72

GROMMET

09308-10017

$5.20
