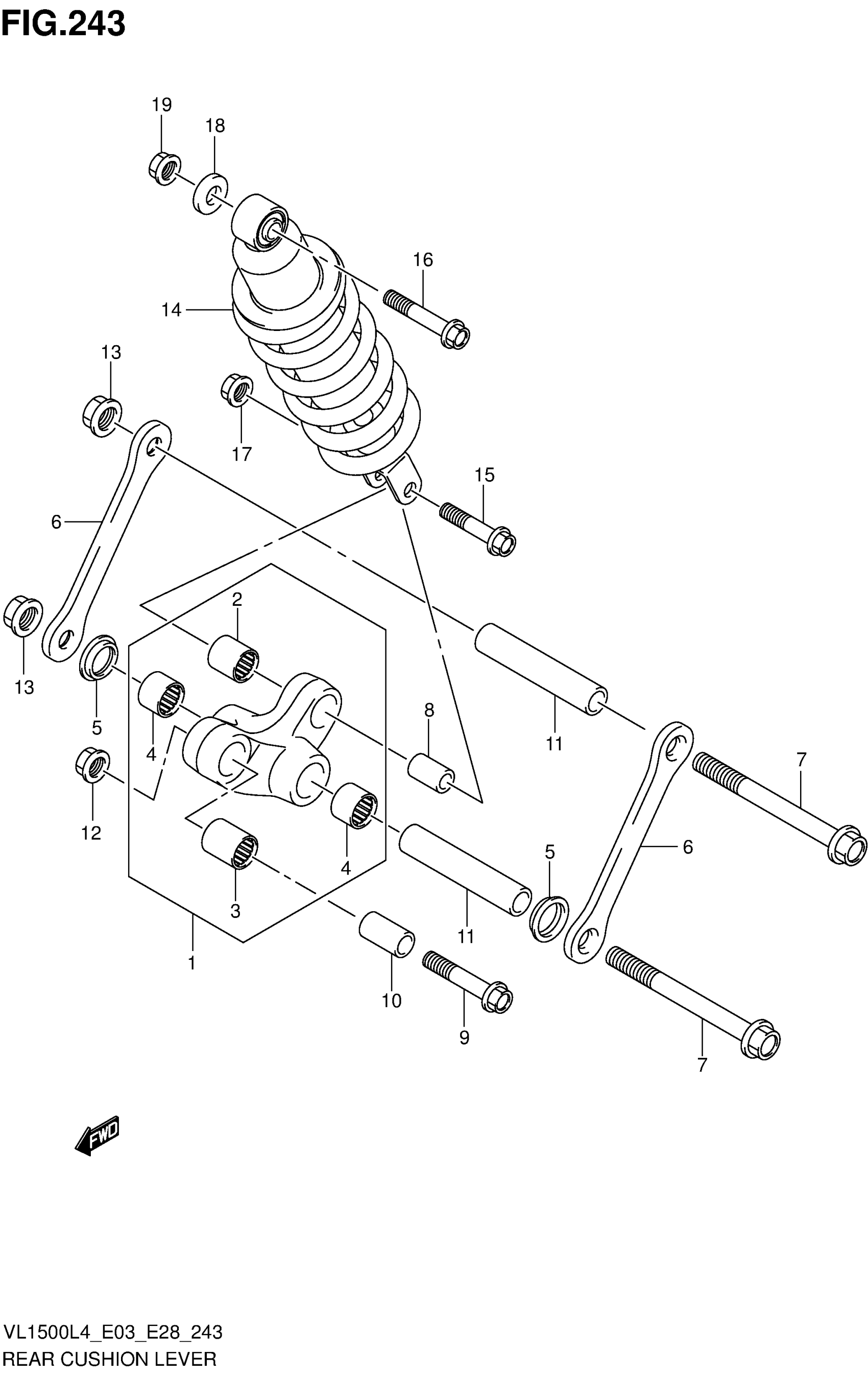

Suzuki VL1500BL4 (2014) REAR CUSHION LEVER (VL1500L4 E33) Diagram

#

Description
Price

1

LEVER, REAR CUSHION

62600-06880

Unavailable

2

.BEARING This part replaces 09263-20064.

09263-20120

$22.46

3

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

4

BEARING (22X28X20)

09263-22062

$31.08

5

SEAL, CUSHION LEVER CENTER

62624-37E00

$8.98

6

ROD, REAR CUSHION

62641-06J00

Unavailable

7

BOLT, REAR CUSHION ROD

62658-44G10

Unavailable

8

SPACER, CUSHION LEVER REAR

62684-01D00

$19.37

9

BOLT (14X66)

09103-14016

Unavailable

10

SPACER (14X20X34)

09180-14014

$17.50

11

SPACER (16X22X105)

09180-16049

Unavailable

12

NUT

08319-3114A

$9.66

13

NUT

08319-3116A

$14.74

14

ABSORBER ASSY, REAR SHOCK (BLACK)

62100-06J60-019

Unavailable

15

BOLT, LOWER

62668-42A02

$10.67

16

BOLT, UPPER

62658-27C10

$11.68

17

NUT | LOWER

08319-3112A

$3.76

18

SPACER (12.1X25X14.5)

09180-12157

Unavailable

19

NUT | UPPER

09159-12056

$7.37
