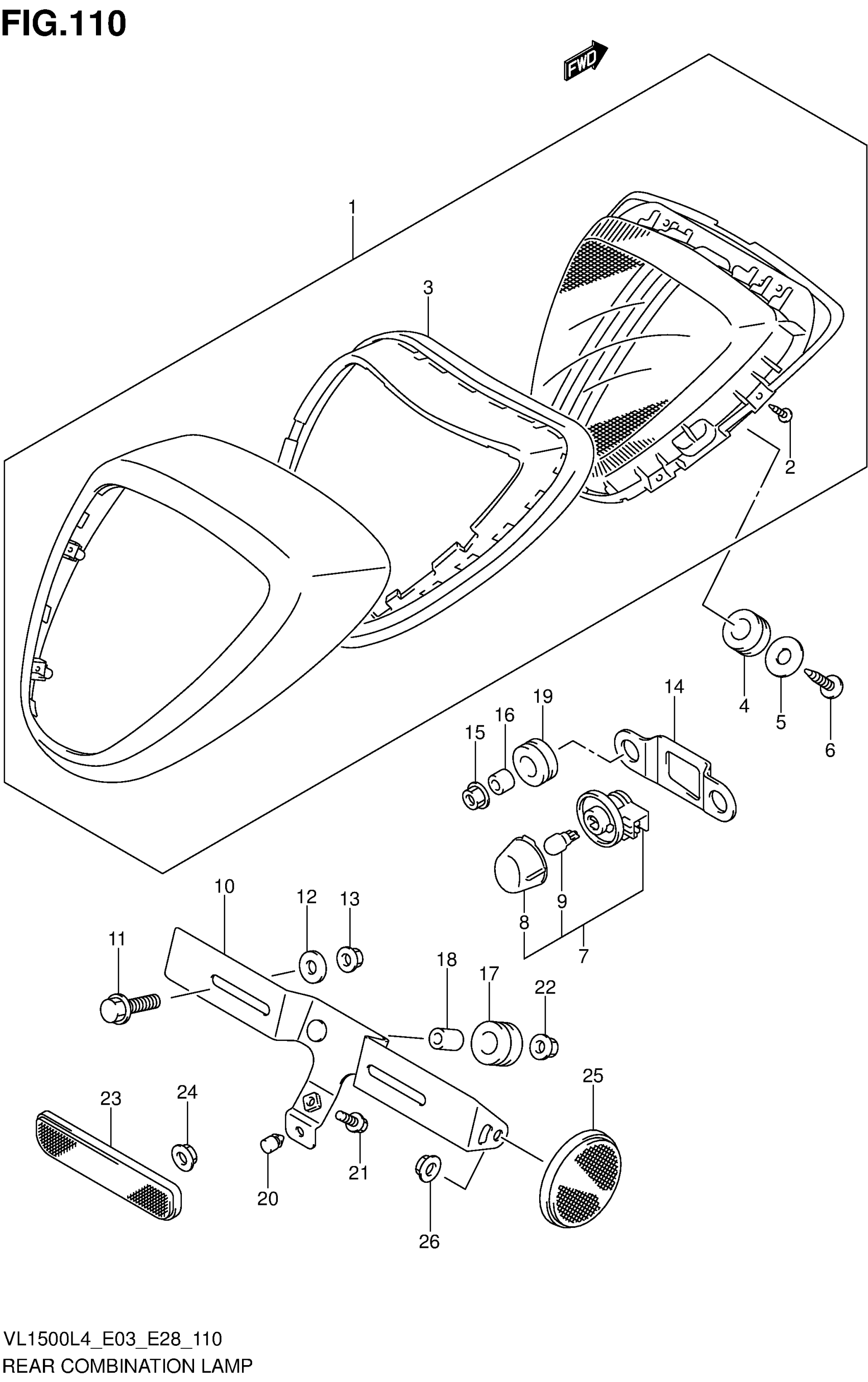

Suzuki VL1500BL4 (2014) REAR COMBINATION LAMP (VL1500L4 E33) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-06J00

$364.22

2

SCREW (3X12)

35623-41400

Unavailable

3

RUBBER

35713-06J00

Unavailable

4

CUSHION

09320-10067

$3.96

5

WASHER (5.5X20X1.2)

09160-05501

$1.94

6

SCREW

03541-0512A

$1.41

7

LAMP ASSY, LICENSE

35910-14F01

$34.10

8

LENS

35912-14F11

$9.35

9

.BULB (12V5W)

09471-12216

$4.99

10

BRACKET, LICENSE PLATE

35927-06J30

$42.57

11

BOLT (6X16)

09116-06168

$2.57

12

WASHER (6.5X20X1.2)

09160-06077

$1.97

13

NUT

08316-1006A

$2.25

14

BRACKET, LICENSE LAMP

35928-43H00

$12.93

15

NUT

09159-05049

$2.50

16

SPACER (5.5X9.5X10.5)

09180-05066

Unavailable

17

SPACER (6.5X10X12)

09180-06290

$2.09

18

CUSHION

09320-10051

$2.91

19

CUSHION This part replaces 09320-10054.

09320-10073

$2.12

20

CUSHION This part replaces 09321-06013.

09321-06036

$1.56

21

BOLT

01550-0625A

$2.01

22

NUT

08316-1006A

$2.25

23

REFLECTOR ASSY, REAR

35970-05H00

$33.12

24

NUT

08316-1005A

$2.25

25

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.87

26

NUT

08316-1005A

$2.25
