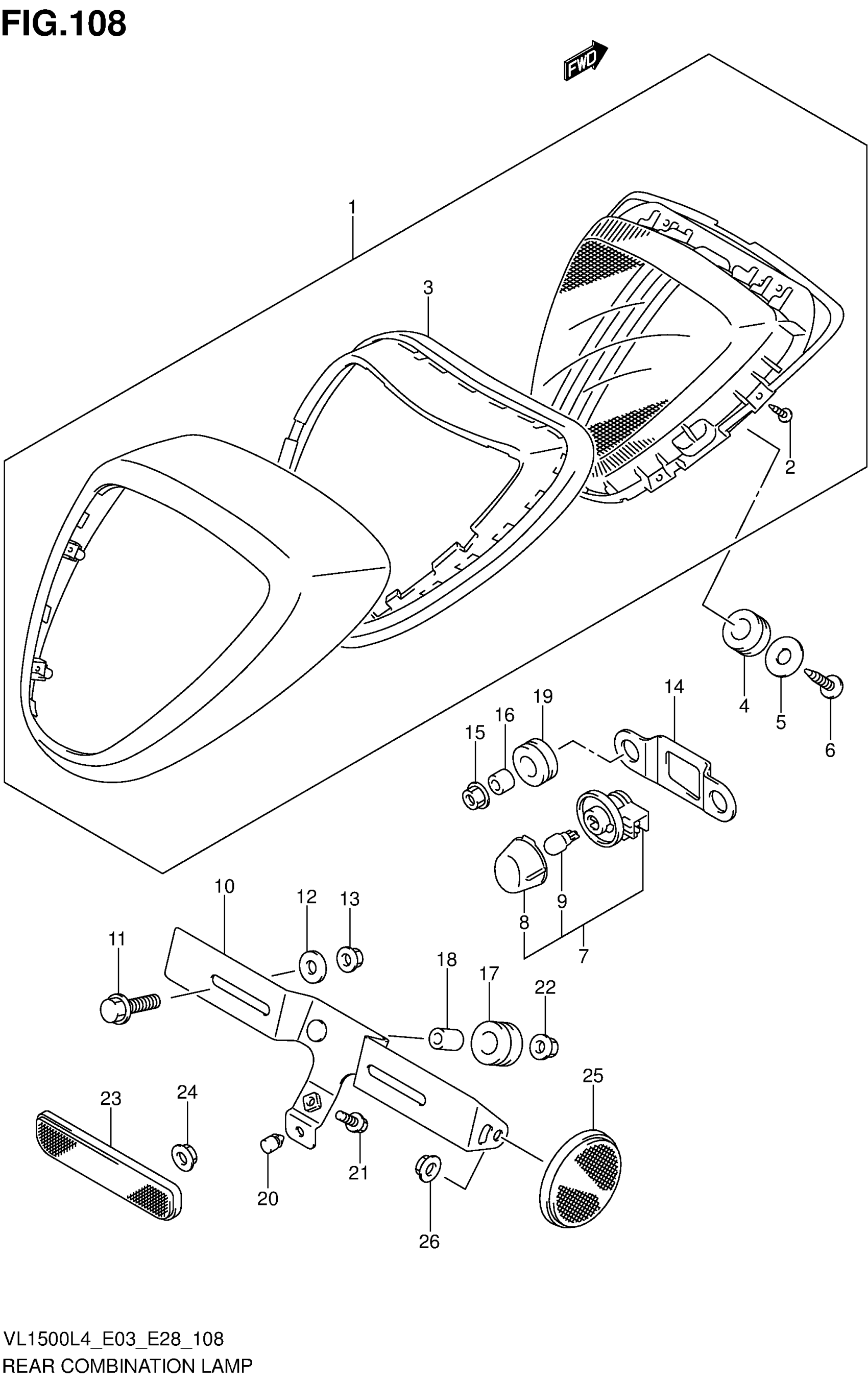

Suzuki VL1500BL4 (2014) REAR COMBINATION LAMP (VL1500L4 E03) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-06J00

$336.77

2

SCREW (3X12)

35623-41400

Unavailable

3

RUBBER

35713-06J00

Unavailable

4

CUSHION

09320-10067

$3.63

5

WASHER (5.5X20X1.2)

09160-05501

$1.84

6

SCREW

03541-0512A

$1.49

7

LAMP ASSY, LICENSE

35910-14F01

$30.22

8

LENS

35912-14F11

$8.28

9

.BULB (12V5W)

09471-12216

$5.36

10

BRACKET, LICENSE PLATE

35927-06J30

$37.72

11

BOLT (6X16)

09116-06168

$2.50

12

WASHER (6.5X20X1.2)

09160-06077

$1.91

13

NUT

08316-1006A

$2.19

14

BRACKET, LICENSE LAMP

35928-43H00

$11.47

15

NUT

09159-05049

$2.30

16

SPACER (5.5X9.5X10.5)

09180-05066

Unavailable

17

SPACER (6.5X10X12)

09180-06290

$2.35

18

CUSHION

09320-10051

$2.99

19

CUSHION This part replaces 09320-10054.

09320-10073

$2.27

20

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

21

BOLT

01550-0625A

$1.97

22

NUT

08316-1006A

$2.19

23

REFLECTOR ASSY, REAR

35970-05H00

$29.33

24

NUT

08316-1005A

$2.19

25

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

26

NUT

08316-1005A

$2.19
