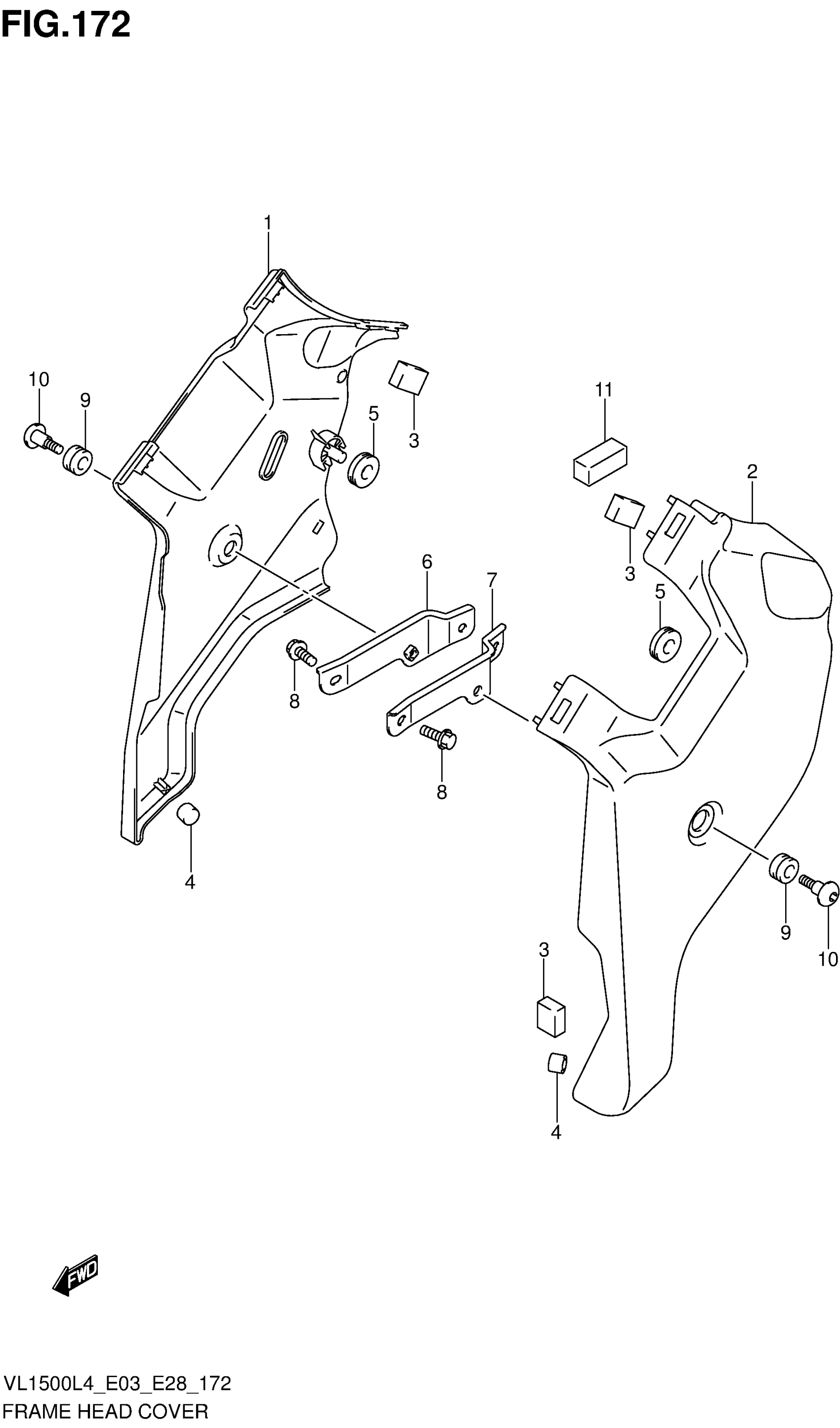

Suzuki VL1500BL4 (2014) RAME HEAD COVER Diagram

COVER, FRAME HEAD RH (BLACK)

47351-06J00-019

$147.53

COVER, FRAME HEAD LH (BLACK)

47361-06J00-019

$70.30

CUSHION | CUT AS REQUIRED

17798-39G00

$6.49

CAP(OD:12.3) This part replaces 09250-12013.

09250-12015

$2.22

CUSHION

09320-08018

$3.04

PLATE, HEAD COVER RH

47370-40H00

Unavailable

PLATE, HEAD COVER LH

47380-40H00

Unavailable

BOLT

01547-0616A

$2.03

CUSHION

09320-09016

$1.97

BOLT (6X20)

09139-06190

$4.17

CUSHION | CUT AS REQUIRED

47191-22D00

$5.02
