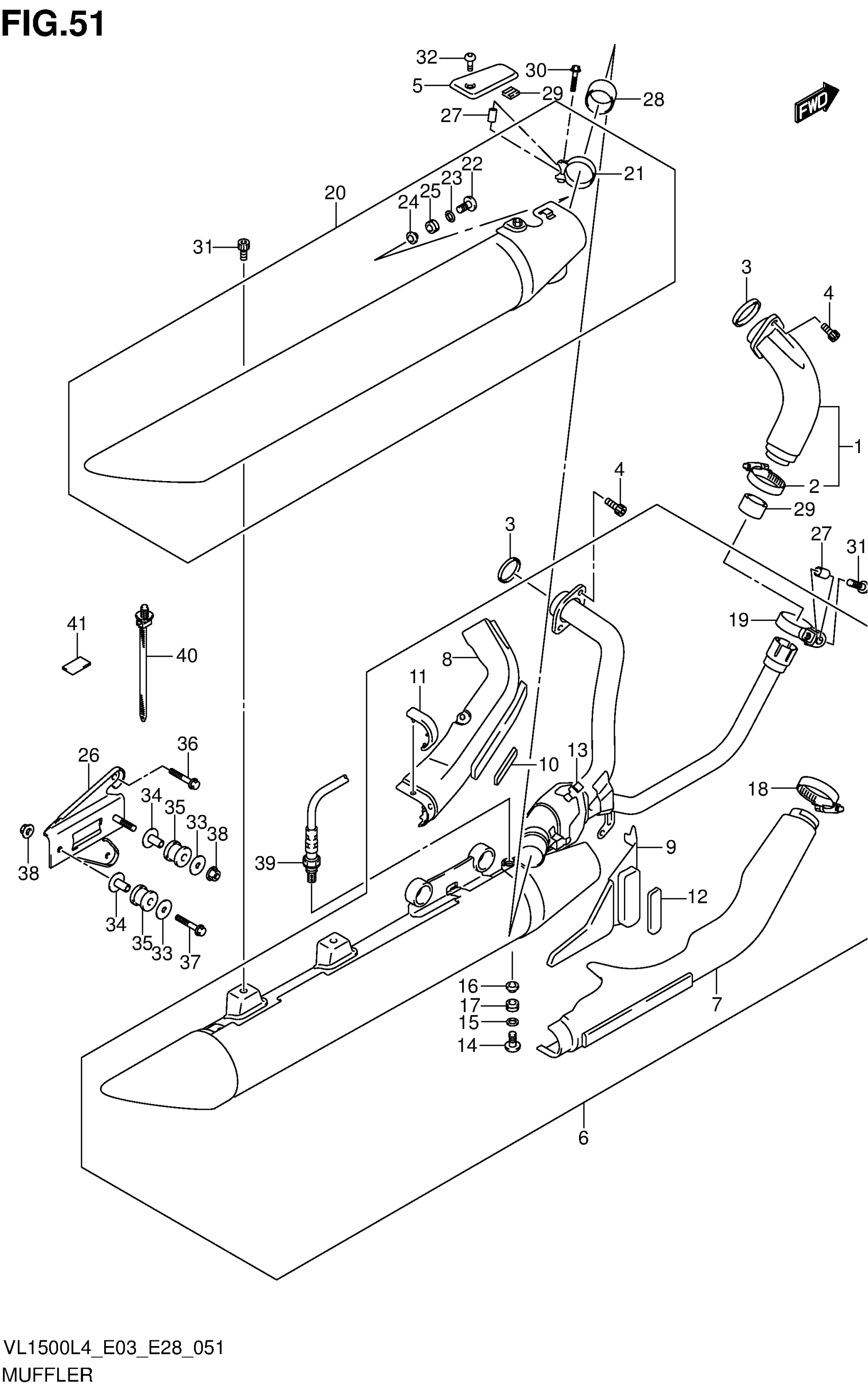

Suzuki VL1500BL4 (2014) MUFFLER (VL1500BL4 E03) Diagram

#

Description
Price

1

PIPE, EXHAUST FRONT This part replaces 14150-40H10.

14150-40H11

Unavailable

2

CLAMP

09402-45503

Unavailable

3

GASKET, EXHAUST PIPE

14181-31D00

$10.28

4

BOLT (8X30)

09106-08175

$4.10

5

COVER, MUFFLER REAR UPPER

14260-06J10

$111.53

6

MUFFLER, FRONT This part replaces 14305-06J20.

14305-06J21

Unavailable

7

COVER, EXHAUST FRONT

14170-06J10

$293.80

8

.COVER, EXHAUST REAR This part replaces 14180-06J10.

14180-06J11

$262.87

9

.COVER, EXHAUST CENTER This part replaces 14250-06J10.

14250-06J11

$242.23

10

PROTECTOR, UPPER

14780-48G10

$42.00

11

CUSHION, EXHAUST PIPE COVER

14782-06J00

Unavailable

12

PROTECTOR, LOWER

14790-48G20

$39.43

13

GROMMET

14795-10FA0

$5.58

14

SCREW (6X20)

09139-06028

$3.70

15

WASHER (6.5X20X1)

09160-06141

Unavailable

16

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

17

CUSHION

09320-08070

$11.57

18

CLAMP

09402-45503

Unavailable

19

CLAMP, CONNECTOR

14459-40H00

$29.97

20

BODY, MUFFLER REAR This part replaces 14340-06J20.

14340-06J21

Unavailable

21

CONNECTOR

14459-40H00

$29.97

22

SCREW (6X20)

09139-06028

$3.70

23

WASHER (6.5X20X1)

09160-06141

Unavailable

24

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

25

CUSHION

09320-08070

$11.57

26

BRACKET, MUFFLER SUPPORT

14410-40H00

Unavailable

27

SPACER, MUFFLER CLAMP

14458-45G10

$8.18

28

CONNECTOR

14771-40H00

$36.55

29

GROMMET

14795-10FA0

$5.58

30

BOLT (8X35)

09103-08365

$3.91

31

BOLT (8X20)

09106-08107

$2.81

32

SCREW (6X10)

09139-06172

$3.04

33

WASHER (8.5X33X1.5)

09160-08146

$2.60

34

SPACER (8.6X12X27.1)

09180-08156

$6.70

35

CUSHION

09320-12049

$10.68

36

BOLT (8X16)

01550-0816A

$2.32

37

BOLT

01550-0845A

$3.14

38

NUT

08361-2508A

$1.97

39

SENSOR, OXYGEN

18213-48G00

Unavailable

40

CLAMP (L:154)

09407-17403

$4.91

41

CUSHION, O2 SENSOR LEAD

44558-45G00

Unavailable
