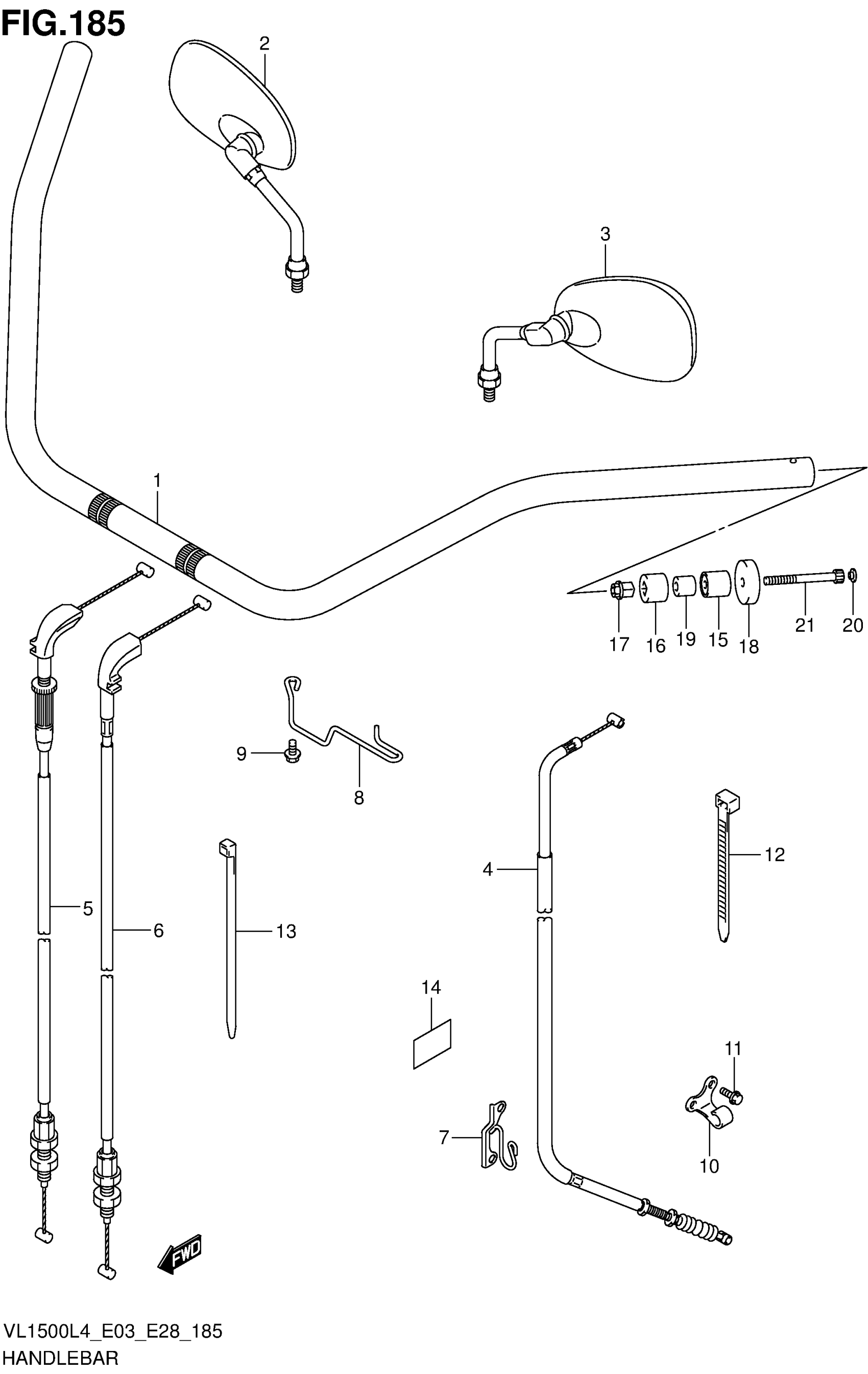

Suzuki VL1500BL4 (2014) HANDLEBAR (VL1500L4 E03) Diagram

#

Description
Price

1

HANDLEBAR

56111-06J00

$138.92

2

MIRROR ASSY, REAR VIEW RH

56500-41F70

$114.40

3

MIRROR ASSY, REAR VIEW LH

56600-41F70

$107.82

4

CABLE ASSY, CLUTCH This part replaces 58200-06J00.

58200-06J01

$52.47

5

CABLE ASSY,THRO This part replaces 58300-06J00.

58300-06J01

$30.28

6

CABLE ASSY,THRO This part replaces 58300-06J10.

58300-06J11

$27.12

7

GUIDE, CLUTCH CABLE

58620-06J10

Unavailable

8

GUIDE, CABLE

58621-06J00

Unavailable

9

BOLT

01550-0612A

$1.97

10

STOPPER, CLUTCH CABLE

58634-40H00

$15.42

11

BOLT

01547-0612A

$2.03

12

CLAMP (L:190)

09407-19401

$3.05

13

CLAMP (L:145)

09407-14407

$3.57

14

PROTECTOR, THROTTLE CABLE

94474-17H00

$4.58

15

EXPANDER, BALANCER NO.2

56271-26D20

$4.80

16

EXPANDER, BALANCER

56272-10G10

$4.73

17

NUT

56273-10G10

$8.65

18

BALANCER, HANDLEBAR

56278-22H00

$52.23

19

.SPACER (6.5X16X15)

09180-06161

$6.53

20

CAP (OD:10)

09250-05008

$3.76

21

BOLT

07130-0660A

$2.92
