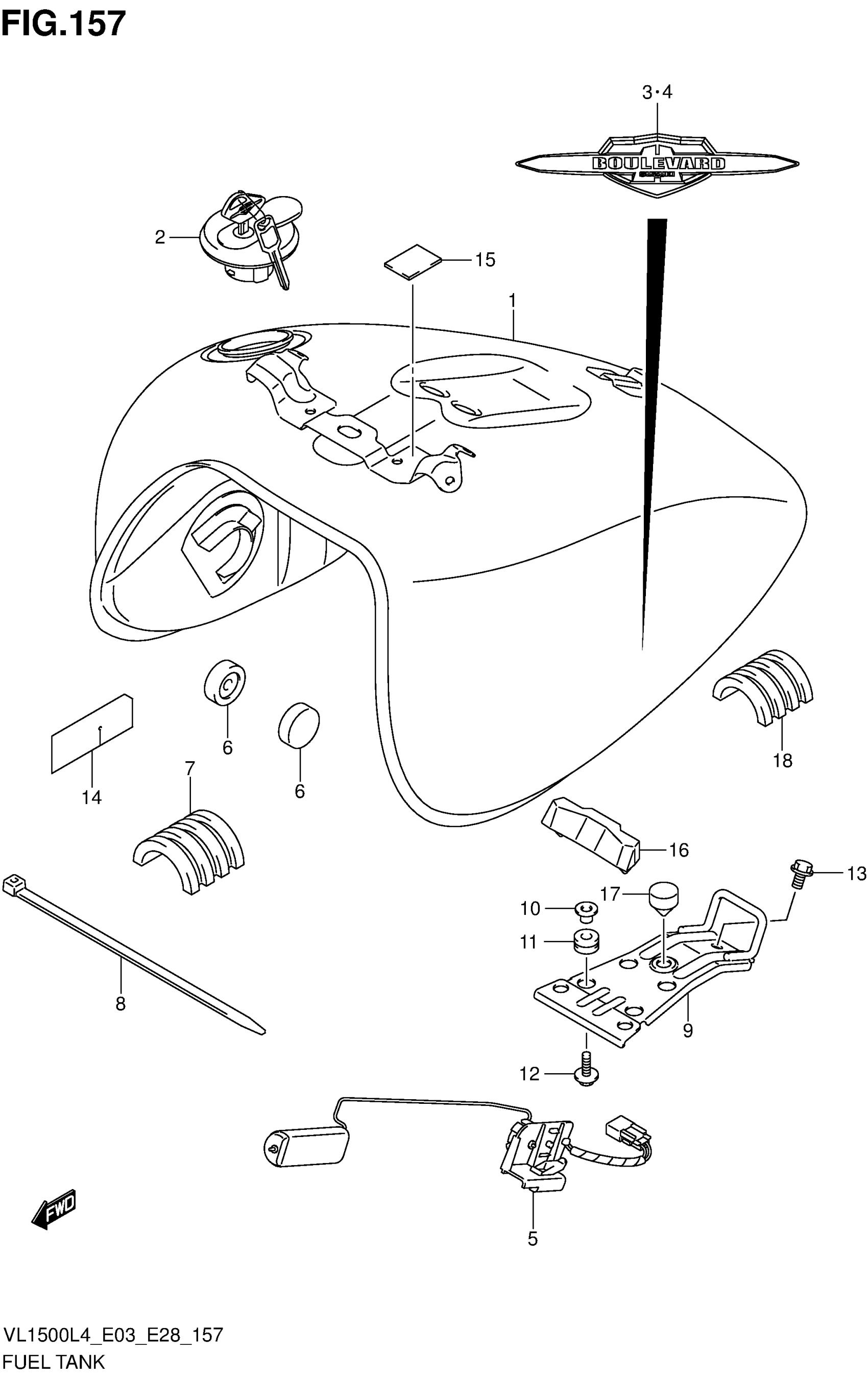

Suzuki VL1500BL4 (2014) FUEL TANK (VL1500BL4 E33) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK)

44100-06J01-YVB

$1,079.38

2

CAP SET,FUEL TA This part replaces 44200-41840.

44200-41842

$94.83

3

EMBLEM, RH

68111-06J00

$68.18

4

EMBLEM, LH

68121-06J00

$68.18

5

GAUGE ASSY,FUEL This part replaces 34810-40H00.

34810-40H01

$83.05

6

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

7

CUSHION, TANK SIDE

44541-04F00

Unavailable

8

CLAMP (L:300)

09407-30402

$4.11

9

BRACKET, REAR

44530-06J00

$37.73

10

WASHER

09169-06062

$2.50

11

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

12

BOLT (6X20)

09116-06192

$2.30

13

BOLT (8X12)

01550-0812A

$2.32

14

PROTECTOR

44283-06J00

$6.10

15

CUSHION

63191-25C00

$3.05

16

CUSHION

44545-06J00

Unavailable

17

CUSHION

09321-10011

$2.91

18

CUSHION, TANK SIDE REAR

44541-06J00

Unavailable
