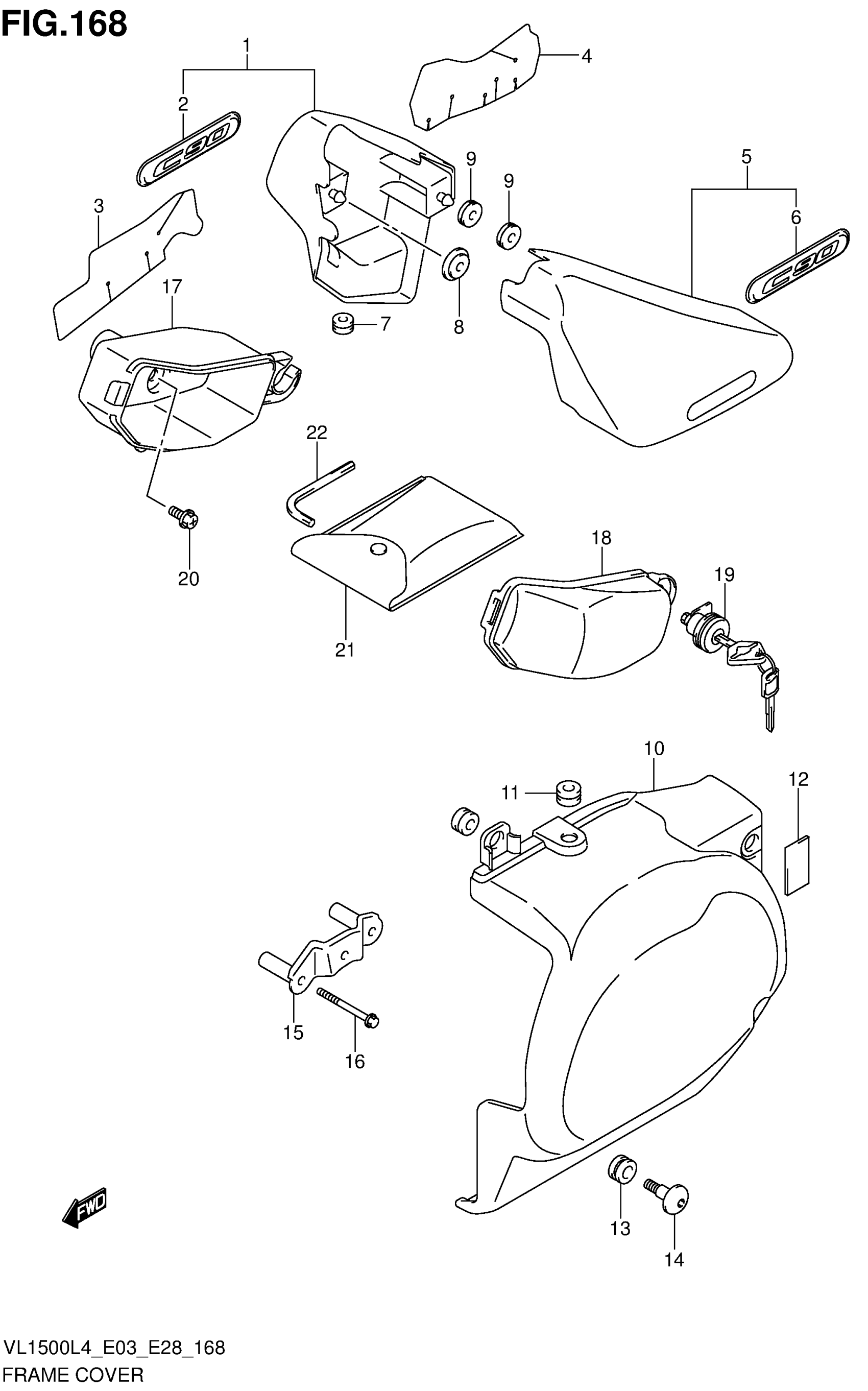

Suzuki VL1500BL4 (2014) FRAME COVER (VL1500L4 E33) Diagram

#

Description
Price

1

COVER, SIDE RH (BLUE)

47110-06J00-YKZ

$102.55

2

EMBLEM, "C90" This part replaces 68131-10FA0.

68131-10FA1

$38.60

3

SHIELD, SIDE COVER RH

47166-06J10

Unavailable

4

SHIELD, SIDE COVER RH

47166-06J20

$5.65

5

COVER, SIDE LH (BLUE)

47210-06J00-YKZ

Unavailable

6

EMBLEM, "C90" This part replaces 68131-10FA0.

68131-10FA1

$38.60

7

CUSHION, SIDE COVER LOWER RH

47167-06J00

$7.65

8

CUSHION, SIDE COVER FRONT

47191-06J00

$4.85

9

CUSHION | REAR

09320-08018

$3.04

10

COVER, LOWER LH

47231-40H00

$320.57

11

CUSHION | LH

09320-06504

$4.96

12

CUSHION | LH

51827-01A00

$6.17

13

CUSHION | LH

09320-09016

$1.97

14

BOLT (6X20) | LH

09139-06190

$4.17

15

BRACKET, LOWER COVER LH

47250-06J00

$29.15

16

BOLT

01547-0650A

$2.46

17

BODY, LUGGAGE BOX

92211-06J00

Unavailable

18

LID

92212-06J00

Unavailable

19

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$75.92

20

BOLT (6X12)

09111-06107

$2.60

21

TOOL ASSY This part replaces 09800-21056.

09800-21100

$40.80

22

SPANNER, 6 HEXAGON

09816-00050

$5.03
