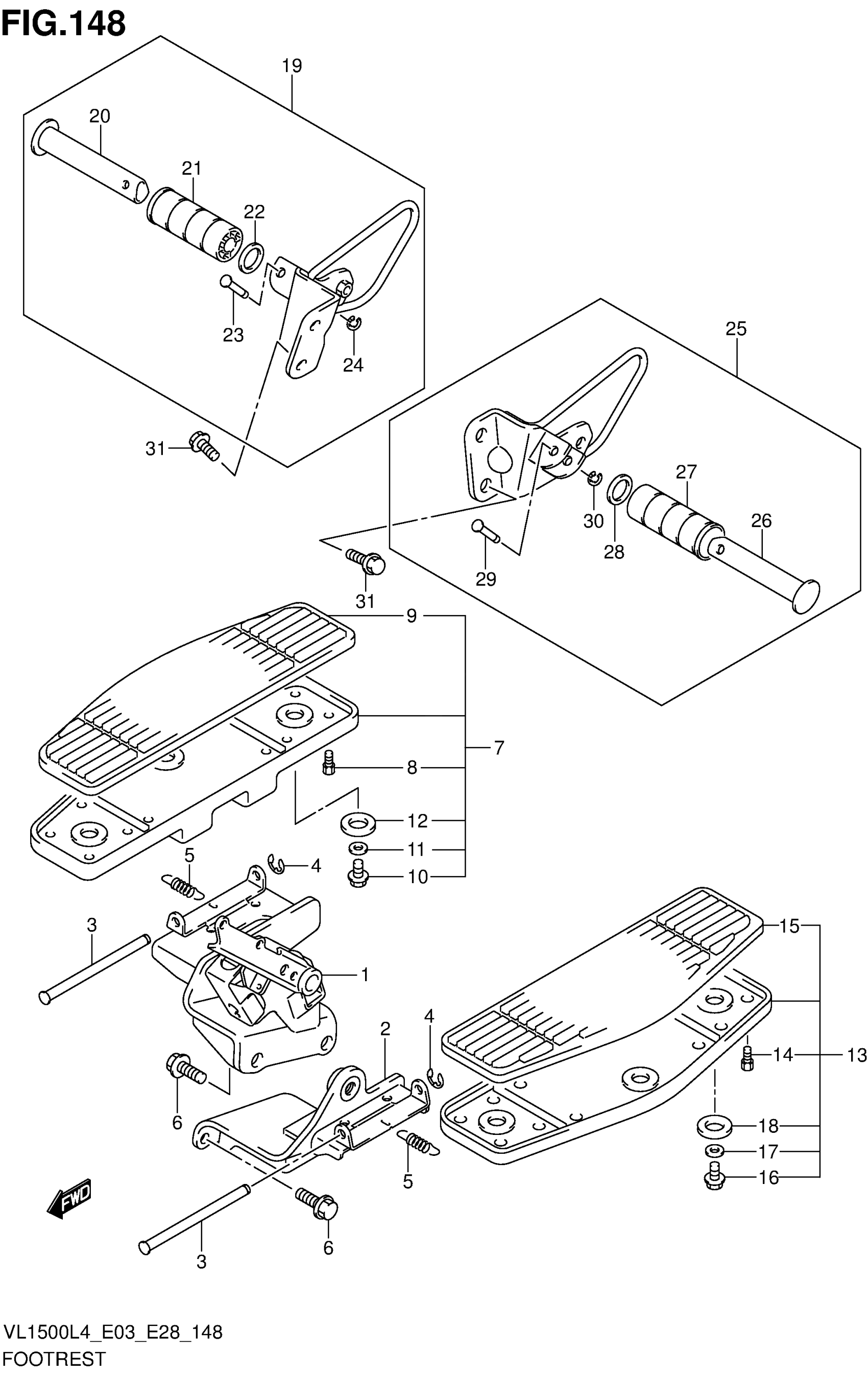

Suzuki VL1500BL4 (2014) FOOTREST (VL1500L4 E33) Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43510-06J00

$225.40

2

BRACKET, FRONT FOOTREST LH

43520-06J01

$97.11

3

PIN,FRONT FOOTREST

43539-10F00

$8.13

4

E RING

08332-1106A

$1.49

5

SPRING

09443-11033

$4.50

6

BOLT

01550-1025B

$4.10

7

FOOTREST ASSY,FRONT RH This part replaces 43501-10F11.

43501-10F12

$209.05

8

.BOLT,BANK SENSOR

43576-07D01

$8.85

9

RUBBER, FRONT FOOTREST

43550-10F10

Unavailable

10

BOLT

01550-0610A

$1.97

11

WASHER (6.5X22X1.6)

09160-06158

$2.30

12

.CUSHION This part replaces 09320-10036.

09320-10077

$2.23

13

FOOTREST ASSY,FRONT LH This part replaces 43502-10F11.

43502-10F12

$209.05

14

.BOLT,BANK SENSOR

43576-07D01

$8.85

15

RUBBER, FRONT FOOTREST

43550-10F10

Unavailable

16

BOLT

01550-0610A

$1.97

17

WASHER (6.5X22X1.6)

09160-06158

$2.30

18

.CUSHION This part replaces 09320-10036.

09320-10077

$2.23

19

FOOTREST ASSY, PILLION RH

43600-40H50

$173.75

20

BAR

43610-39G00

$22.52

21

RUBBER

43612-39G00

$10.02

22

WASHER (19.5X32X2)

09160-19024

$2.65

23

PIN

09208-06007

$3.29

24

E RING

08332-1104A

$1.49

25

FOOTREST ASSY, PILLION LH

43700-40H50

Unavailable

26

BAR

43610-39G00

$22.52

27

RUBBER

43612-39G00

$10.02

28

WASHER (19.5X32X2)

09160-19024

$2.65

29

PIN

09208-06007

$3.29

30

E RING

08332-1104A

$1.49

31

BOLT (8X16)

09103-08412

$3.03
