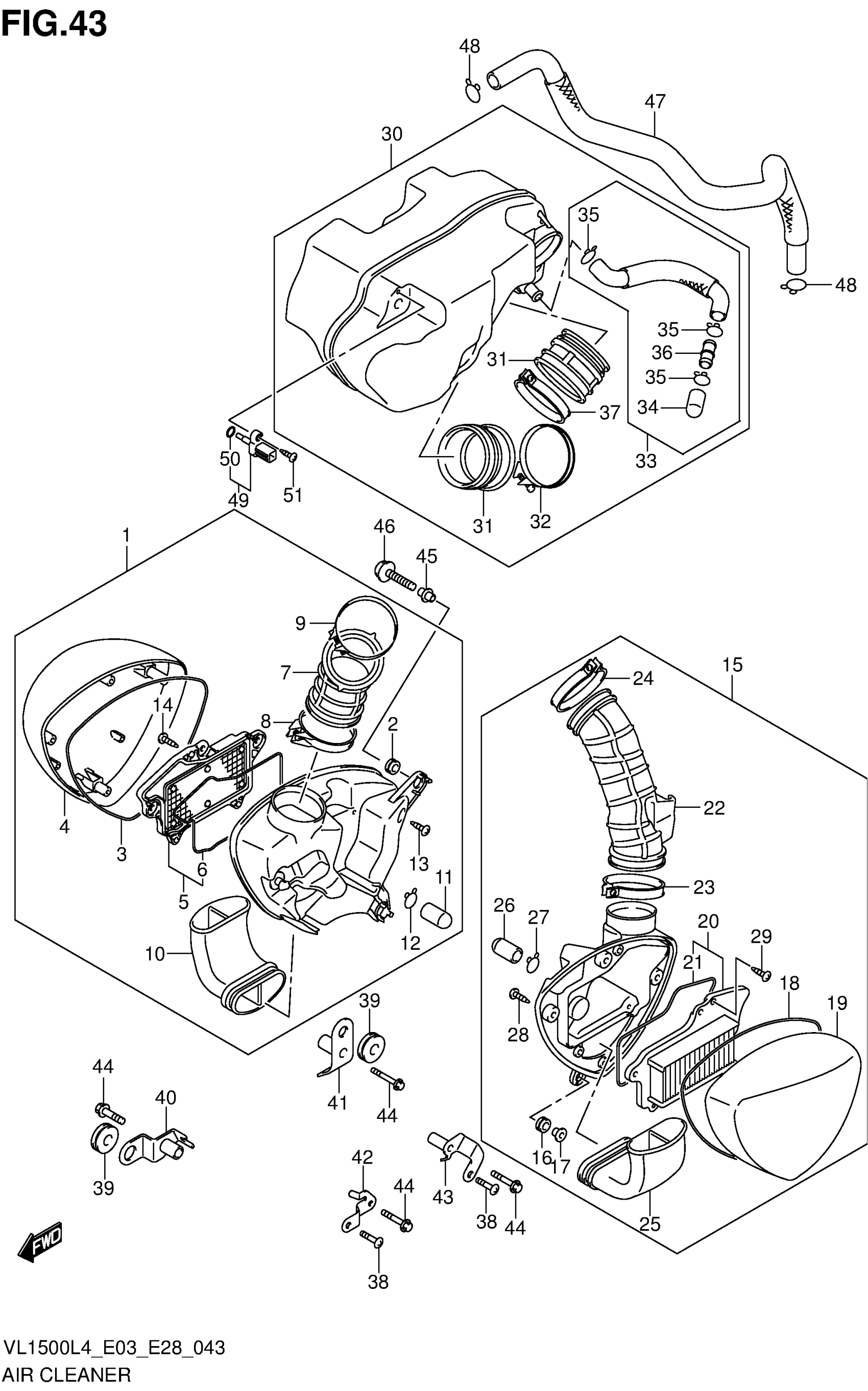

Suzuki VL1500BL4 (2014) AIR CLEANER (VL1500L4 E28) Diagram

#

Description
Price

1

CLEANER, AIR RH

13701-40HA0

Unavailable

2

CUSHION

09320-09016

$1.97

3

GASKET

13756-40H00

$5.86

4

CAP, AIR CLEANER

13741-40H00

$233.32

5

FILTER ASSY

13780-40H00

$43.89

6

GASKET

13787-40H00

$5.98

7

TUBE, JOINT RH

13738-40H00

$90.23

8

CLAMP

09402-62208

$6.58

9

CLAMP

13826-40H00

Unavailable

10

TUBE, INLET

13891-40H01

Unavailable

11

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.48

12

CLIP

09401-14101

$2.34

13

SCREW

03211-0520A

$2.29

14

SCREW

03541-0516A

$1.49

15

CLEANER,AIR,L This part replaces 13702-40H02.

13702-40H03

$357.45

16

CUSHION

09320-09016

$1.97

17

COLLAR

13812-29C50

$2.70

18

GASKET

13756-40H00

$5.86

19

CAP, AIR CLEANER

13741-40H00

$233.32

20

FILTER ASSY

13780-40H00

$43.89

21

GASKET

13787-40H00

$5.98

22

TUBE, JOINT LH

13739-40H00

$90.23

23

CLAMP

09402-62208

$6.58

24

CLAMP,INTAKE PIPE

13827-40H01

$15.37

25

TUBE, INLET

13891-40H01

Unavailable

26

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.48

27

CLIP

09401-14101

$2.34

28

SCREW

03211-0520A

$2.29

29

SCREW

03541-0516A

$1.49

30

CHAMBER, AIR CLEANER

13710-40H01

Unavailable

31

TUBE, OUTLET

13881-40H01

Unavailable

32

CLAMP

13170-39H00

Unavailable

33

TUBE, DRAIN

13870-40H00

Unavailable

34

.PLUG

13859-41B10

$7.38

35

CLIP

09401-14101

$2.34

36

JOINT 2ND AIR CLEANER HOSE

13888-19B00

$8.28

37

CLAMP

13826-40HB0

Unavailable

38

SCREW (6X20)

09139-06056

$3.23

39

CUSHION

09320-08028

$3.04

40

BRACKET, RH

13760-40H00

Unavailable

41

BRACKET, LH NO.1

13770-40H00

Unavailable

42

BRACKET, LH NO.2

13770-40H11

$19.57

43

BRACKET, LH NO.3

13770-40H20

$19.15

44

BOLT (6X30)

09103-06509

Unavailable

45

SPACER

13838-40H00

Unavailable

46

SCREW (6X35)

09136-06167

$4.98

47

TUBE, BREATHER

13850-40H00

Unavailable

48

CLIP

09401-20405

$4.08

49

SENSOR, AIR TEMP

13650-41F10

$63.25

50

O-RING

13655-41F10

Unavailable

51

SCREW

03511-0516B

$2.28
