2009 Suzuki VL1500 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2009 Suzuki VL1500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

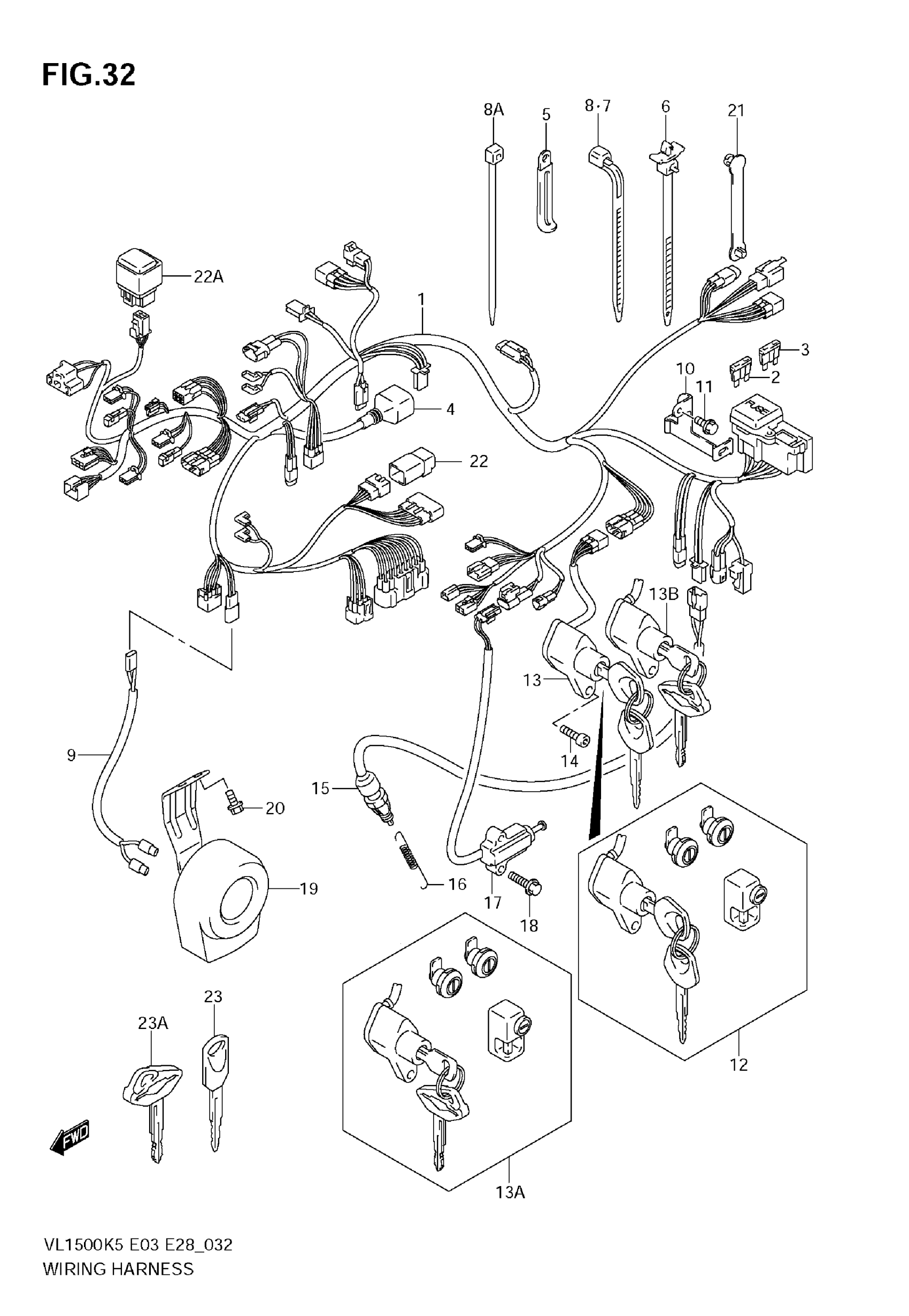

2009 Suzuki VL1500 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING | MODEL K5/K6

36610-10FD0

1
Out of stock

1

HARNESS, WIRING | MODEL K7/K8/K9; Includes Item(s) 2 - 4

36610-10FH0

1
Out of stock

2

FUSE (10A)

09481-10501

4
Out of stock

3

FUSE (15A)

09481-15501

2
Out of stock

4

COVER, SPEEDOMETER

36618-33E00

1
Out of stock

5

CLAMP (L:45)

09404-06429

1
Out of stock

5

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

2
Out of stock

5

CLAMP (L:135)

09404-06435

1
Out of stock

6

CLAMP (L:90)

09407-11402

1
Out of stock

7

CLAMP (L:125)

09407-14403

2
Out of stock

7

CLAMP (L:165)

09407-18402

4
Out of stock

7

CLAMP (L:235)

09407-25401

1
Out of stock

8

CLAMP (L:190)

09407-19401

3
Out of stock

8A

CLAMP (L:145)

09407-14407

1
Out of stock

9

WIRE, HORN LEAD

36852-21E10

1
Out of stock

10

BRACKET, FUSE

36744-10F00

1
Out of stock

11

BOLT

01550-0612B

1
Out of stock

12

LOCK SET | MODEL K5; Includes Item(s) 13 This part replaces 37000-26832.

37000-26833

1
Out of stock

13

SWITCH ASSY, IGNITION | MODEL K5

37110-26F02

1
Out of stock

13A

LOCK SET | MODEL K6/K7/K8/K9; Includes Item(s) 13B This part replaces 37102-10880.

37102-10882

1
Out of stock

13B

SWITCH ASSY, IGNITION | MODEL K6/K7/K8/K9

37110-10FA0

1
Out of stock

14

BOLT

07130-0616B

1
Out of stock

15

SWITCH ASSY, STOP LAMP

37740-10F00

1
Out of stock

16

SPRING, STOP LAMP

43139-10F00

1
Out of stock

17

SWITCH ASSY,SID This part replaces 37840-10F00.

37840-10F01

1
Out of stock

18

BOLT

01550-0620A

2
Out of stock

19

HORN ASSY | VL1500K5 VL1500,T K6/K7/K8/K9

38500-10F20

1
Out of stock

19

HORN ASSY | VL1500TK5

38500-10F00

1
Out of stock

20

BOLT

01550-0616B

2
Out of stock

21

CLAMP (L:33)

09407-03401

1
Out of stock

22

RELAY ASSY, FUEL PUMP

38740-24X50

1
Out of stock

22A

RELAY ASSY, HEAD LAMP | MODEL K7/K8/K9

38740-24A00

1
Out of stock

23

KEY, BLANK | OPT This part replaces 37146-48E00.

37146-48E10

1
Out of stock

23A

KEY, BLANK "BOULEVARD" | OPT,MODEL K6/K7/K8/K9

37146-10F00

1
Out of stock
