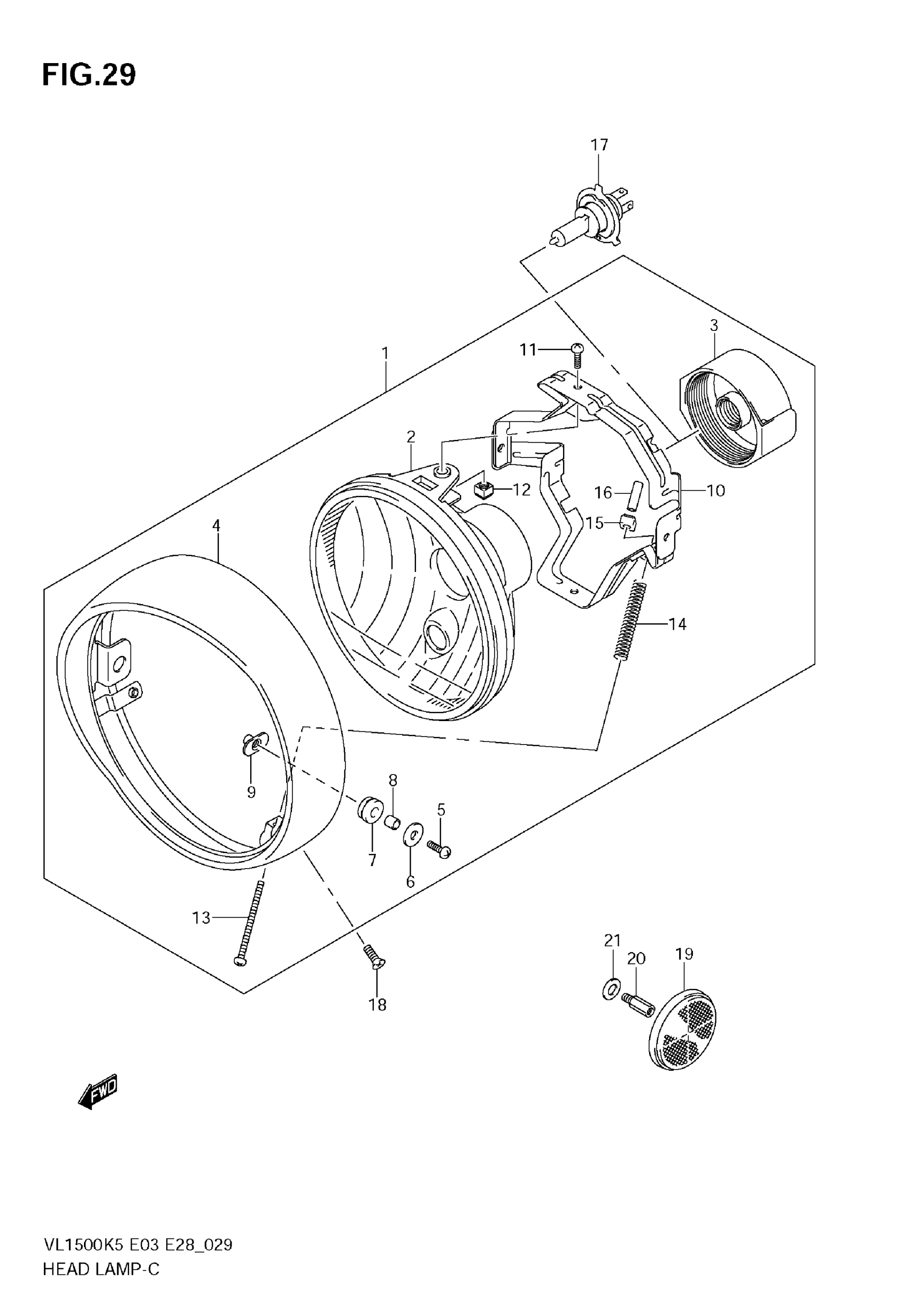

Suzuki VL1500 (2009) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | MODEL K5/K6

35100-10FB0-999

Unavailable

1

HEADLAMP ASSY | MODEL K7/K8/K9; Includes Item(s) 2 - 16

35100-10FH0-999

$553.42

2

UNIT

35121-10FB0

$224.25

3

.COVER,SOCKET

35174-19F00

$34.12

4

RIM | MODEL K5/K6

35111-10FA0

$246.17

4

RIM | MODEL K7/K8/K9

35111-10FG0

$263.42

5

SCREW

02122-0520A

$2.47

6

WASHER (5.5X18X1.0)

09160-05045

$1.95

7

CUSHION | MODEL K5/K6

35139-45230

$2.25

7

CUSHION | MODEL K7/K8/K9

35139-38A60

$4.62

8

SPACER

35133-45230

$3.72

9

NUT

35155-10FA0

$6.75

10

BRACKET | MODEL K5/K6

35130-10FA0

Unavailable

10

BRACKET | MODEL K7/K8/K9

35130-10FD0

Unavailable

11

.SCREW (5X16)

35181-19F00

$3.67

12

NUT

35135-45900

$3.67

13

SCREW, ADJUSTER

35151-10FA0

Unavailable

14

SPRING, ADJUSTER

35154-10FA0

Unavailable

15

.NUT

35152-45600

$3.92

16

COVER

35158-10FA0

Unavailable

17

BULB (12V60/55W,H14)

09471-12060

$22.69

18

SCREW, HEADLAMP (5X8)

09126-05007

$1.85

19

REFLEX REFLECTOR FRONT

35950-49080

$16.24

20

BOLT (5X10)

09119-05023

$13.80

21

WASHER

08322-0105B

$2.24
