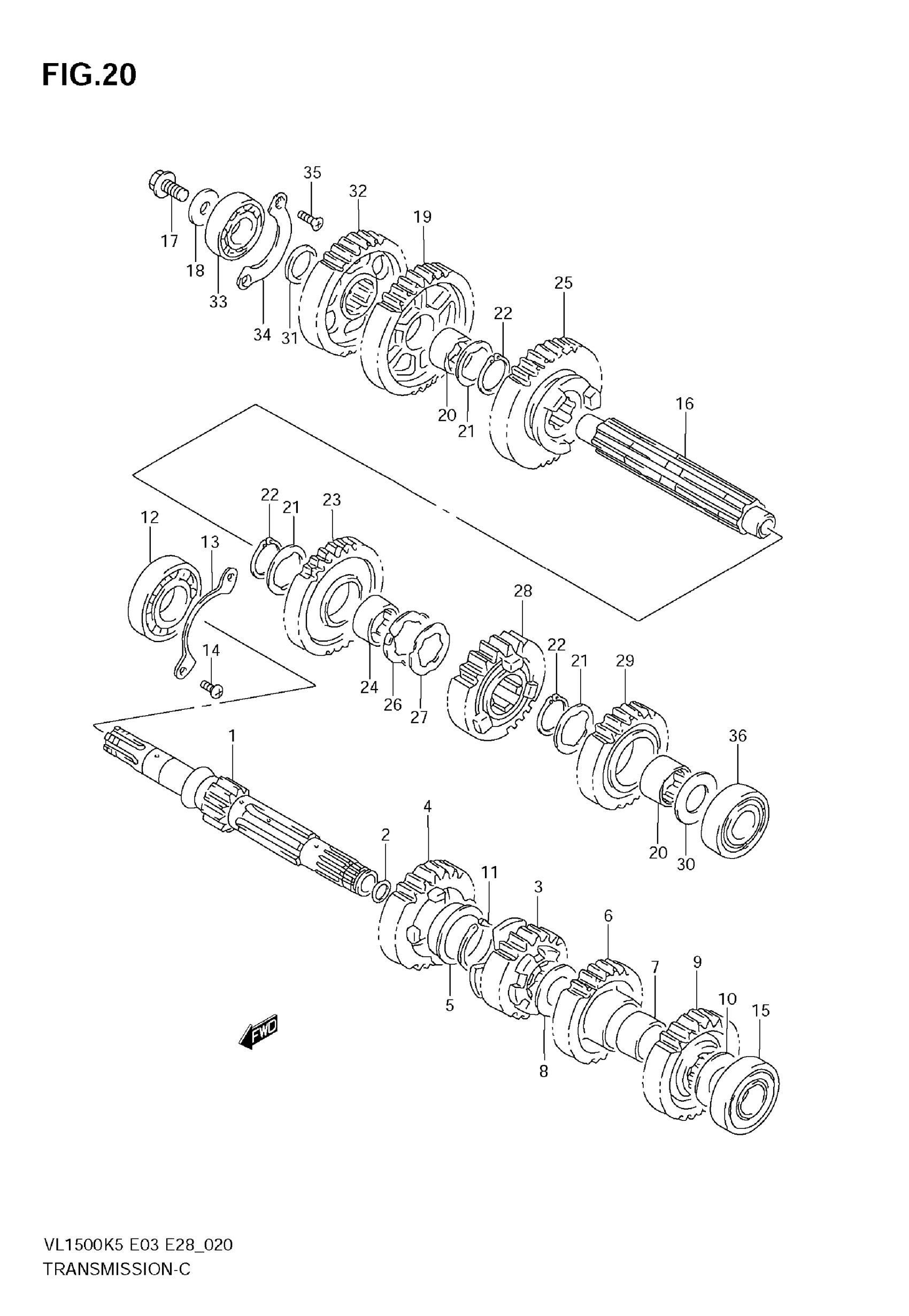

Suzuki VL1500 (2009) TRANSMISSION (MODEL K5) Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12)

24120-38B20

Unavailable

2

O RING (D:1.9,ID:16.6)

09280-17004

$3.67

3

GEAR, 2ND DRIVE (NT:17)

24221-38B20

Unavailable

4

GEAR, 3RD DRIVE (NT:21)

24231-38B11

Unavailable

5

BUSH, 3RD DRIVE GEAR

09301-28001

$19.93

6

GEAR, 4TH DRIVE (NT:24)

24241-38B30

$211.72

7

BUSH, 4TH DRIVE GEAR

24242-38B10

Unavailable

8

WASHER (22X32X1.0)

09181-22195

Unavailable

9

GEAR, 5TH DRIVE (NT:26)

24251-38B20

Unavailable

10

WASHER (20X32X1.0)

09181-20223

$2.92

11

CIRCLIP This part replaces 08331-3128A.

08331-31289

$2.19

12

BEARING, RH (25X62X17)

09262-25080

$38.77

13

RETAINER

24741-38A00

Unavailable

14

SCREW

02112-0612B

$1.93

15

BEARING, LH (20X52X15)

09262-20080

$38.77

16

DRIVE SHAFT

24131-38B20

Unavailable

17

BOLT (10X24)

09103-10112

$3.40

18

WASHER

08211-10305

$4.25

19

GEAR, 1ST DRIVEN (NT:36)

24311-38B20

Unavailable

20

BUSH, 1ST & 5TH

24332-24A00

Unavailable

21

WASHER

09167-28001

$4.60

22

CIRCLIP This part replaces 08331-3128A.

08331-31289

$2.19

23

GEAR, 2ND DRIVEN (NT:31)

24321-38B20

Unavailable

24

BUSH, 2ND DRIVEN GEAR

24332-49000

$17.68

25

GEAR, 3RD DRIVEN (NT:28)

24331-38B12

Unavailable

26

LOCK WASHER, RH

09169-28001

$3.85

27

LOCK WASHER, RH

09167-28002

$4.77

28

GEAR, 4TH DRIVEN (NT:25)

24341-38B12

Unavailable

29

GEAR, 5TH DRIVEN (NT:23)

24351-38B20

Unavailable

30

WASHER

08211-20382

Unavailable

31

WASHER (22X32X3)

09160-22032

$5.33

32

GEAR, OVERDRIVING (NT:34)

24621-38B00

Unavailable

33

BEARING, RH (22X56X16)

09262-22029

$64.59

34

RETAINER

24741-38401

Unavailable

35

SCREW (6X12)

09126-06011

$2.03

36

BEARING, LH (20X52X15)

09262-20080

$38.77
