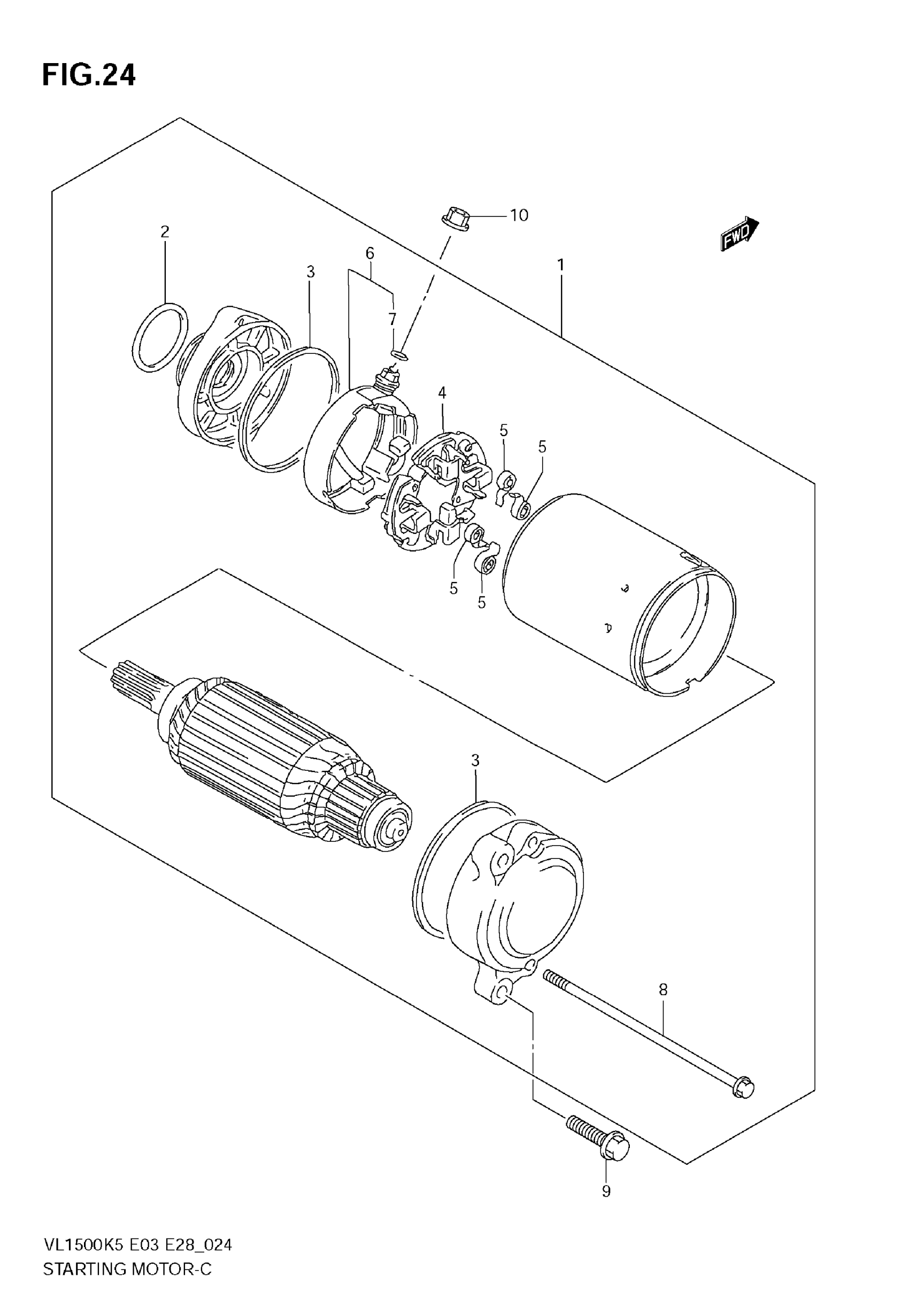

Suzuki VL1500 (2009) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 8 This part replaces 31100-10F00.

31100-38B02

$649.60

2

O RING (D:2.1,ID:34.7)

09280-35005

$9.05

3

O RING This part replaces 31264-31300.

31264-32E00

$6.68

4

HOLDER SET, BRUSH

31132-38B00

$69.35

5

SPRING, BRUSH

31135-38B00

$5.40

6

TERMINAL SET, BRUSH

31130-38B00

$69.35

7

O RING

31143-49040

$3.71

8

BOLT This part replaces 31281-24B10.

31281-31D00

$8.65

9

BOLT

09103-06212

$2.47

10

NUT

08361-3506A

$1.80
