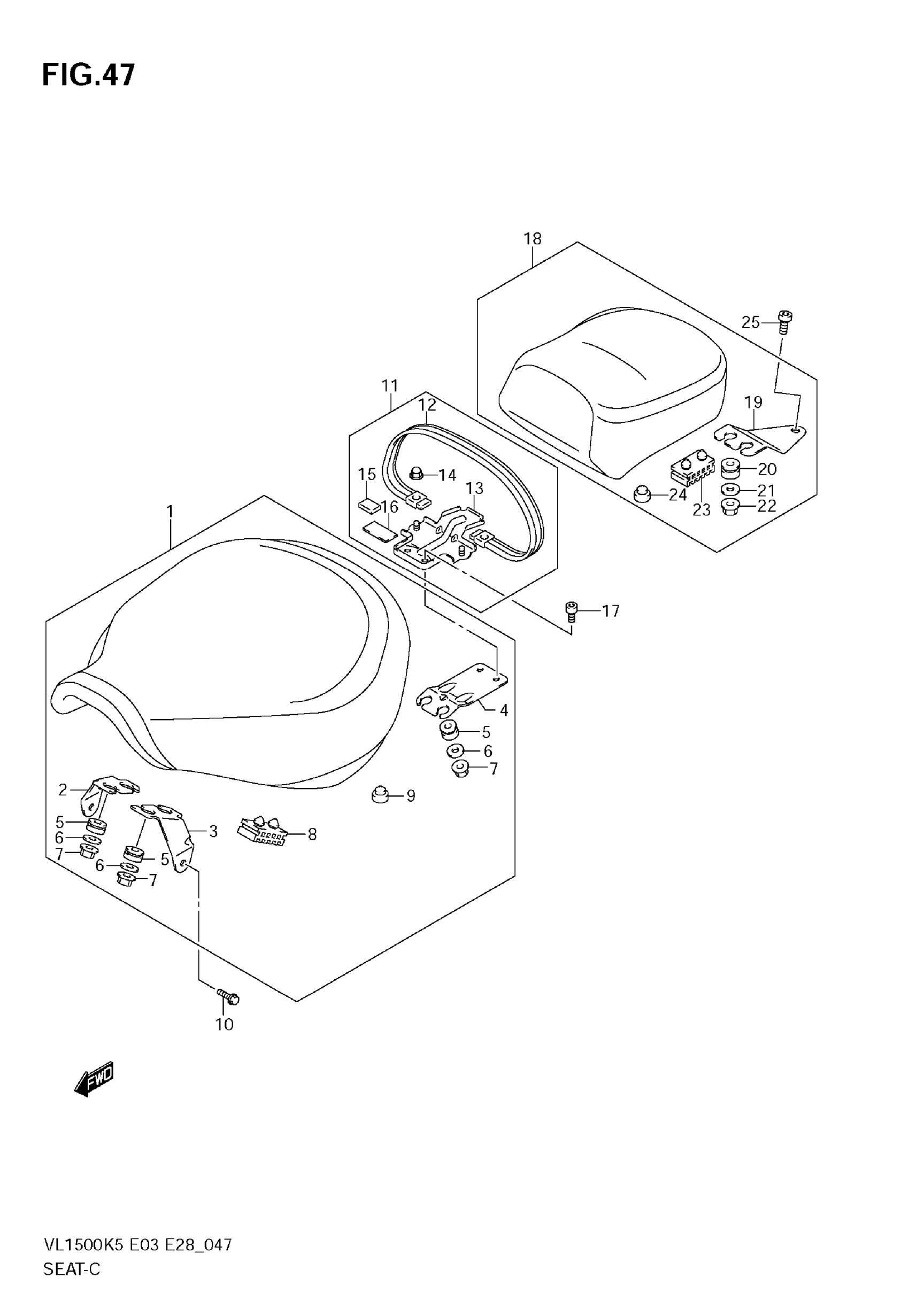

Suzuki VL1500 (2009) SEAT (VL1500K5/K6/K7/K8/K9) Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 - 9

45100-10FA0-P8Z

Unavailable

2

BRACKET, FR R

45115-10FA0

Unavailable

3

BRACKET, FR L

45116-10FA0

Unavailable

4

BRACKET, RR

45117-10FA0

$24.03

5

CUSHION This part replaces 45215-06B00.

45215-06B01

$3.47

6

.WASHER (6.5X20X1.6)

09160-06088

$1.65

7

NUT

08316-1006A

$2.19

8

CUSHION

45149-42F00

$8.42

9

CUSHION

09321-10011

$2.91

10

BOLT, SEAT FRONT | MODEL K5

09106-06114

$5.95

10

BOLT, SEAT FRONT | MODEL K6/K7/K8/K9

09106-08177

$4.10

11

SEAT ASSY | Includes Item(s) 12 - 16 This part replaces 45180-10FA1-48H.

45180-10FA2-48H

$103.55

12

BAND

45181-10FA1

Unavailable

13

BRACKET, SEAT BAND

45185-10FA0

$89.43

14

NUT

08313-2006B

$2.85

15

CUSHION

61544-94500

$1.68

16

CUSHION, BAND BRACKET

44885-38A00

$4.58

17

BOLT, SEAT BAND BRACKET

09106-06064

$6.02

18

SEAT ASSY, PILLION | Includes Item(s) 19 - 24

45300-10FA1-P8Z

Unavailable

19

BRACKET, RR

45316-10FA0

$24.77

20

CUSHION This part replaces 45215-06B00.

45215-06B01

$3.47

21

.WASHER (6.5X20X1.6)

09160-06088

$1.65

22

NUT

08316-1006B

$2.50

23

CUSHION, RR

45149-42F00

$8.42

24

CUSHION, FR

09321-10011

$2.91

25

BOLT, SEAT PILLION RR

09106-08169

$13.20
