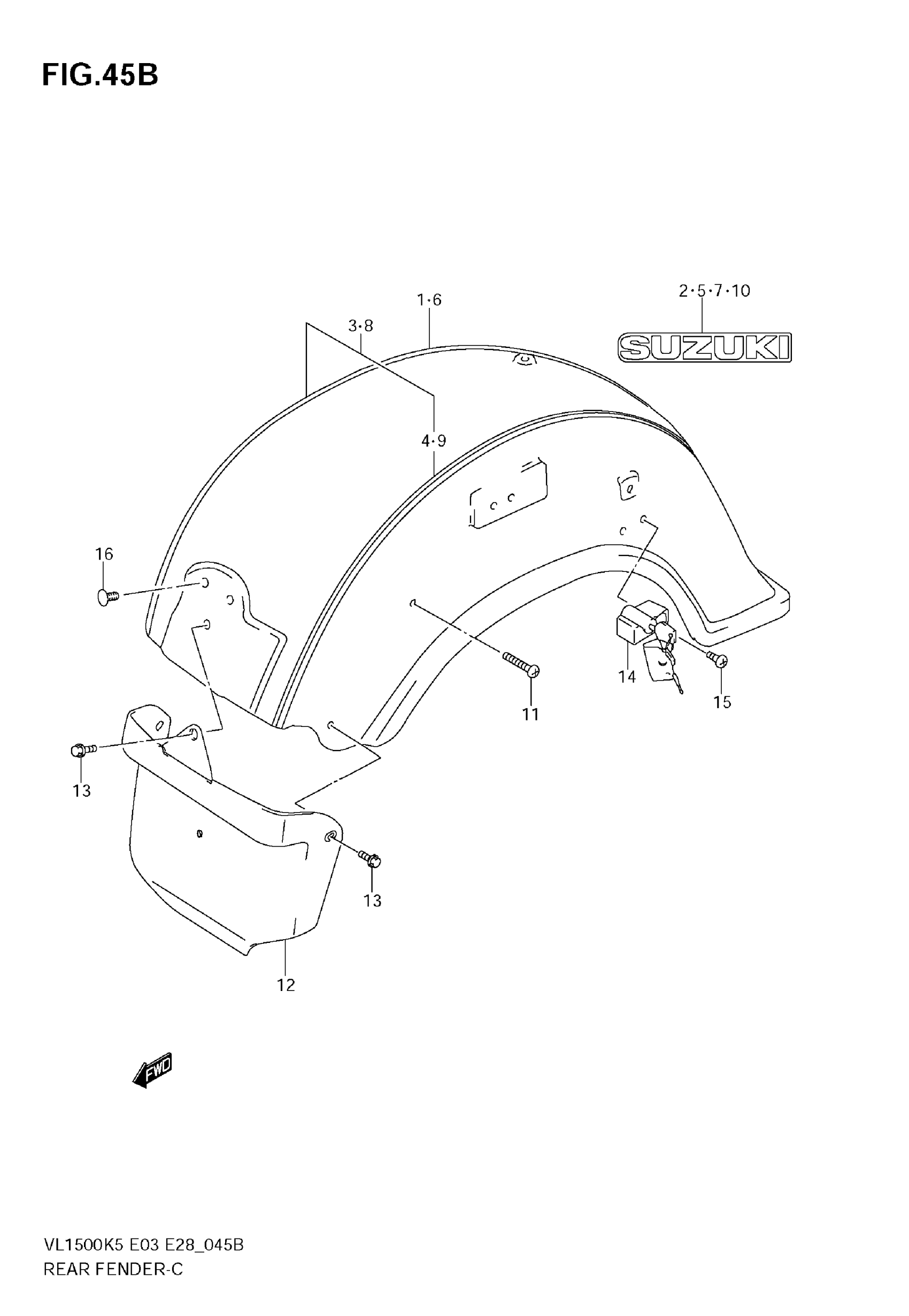

Suzuki VL1500 (2009) REAR FENDER (MODEL K8) Diagram

#

Description
Price

1

FENDER ASSY,RR | VL1500T; Includes Item(s) 2 This part replaces 63100-10FB1-YAY.

63100-10FB2-YAY

$1,170.02

2

.EMBLEM,"SUZUKI" (SILVER) | VL1500T This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

3

FENDER, REAR | VL1500T; Includes Item(s) 4 - 5

63100-10FG0-EUJ

Unavailable

4

TAPE SET | VL1500T

68170-10FC0-EZB

$165.17

5

.EMBLEM,"SUZUKI" (SILVER) | VL1500T This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

6

FENDER ASSY,RR | VL1500; Includes Item(s) 7 This part replaces 63100-10FB1-YAY.

63100-10FB2-YAY

$1,170.02

7

.EMBLEM,"SUZUKI" (SILVER) This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

8

FENDER, REAR | VL1500

63100-10FF0-CRT

Unavailable

8

FENDER, REAR | VL1500; Includes Item(s) 9 - 10

63100-10FF0-EUA

Unavailable

9

TAPE SET | VL1500 FOR CRT

68170-10F30-EZK

Unavailable

9

TAPE SET | VL1500 FOR CZW

68170-10F30-EZL

Unavailable

10

.EMBLEM,"SUZUKI" (SILVER) | VL1500 FOR CZW This part replaces 68271-34A00-YES.

68271-34A01-YES

$6.85

11

BOLT

09106-08156

$7.83

12

BOLT

09106-08156

$7.83

13

BOLT

09113-06001

$2.73

14

LOCK SET, HELMET This part replaces 95700-10840.

95700-10841

Unavailable

15

SCREW

09139-06089

$3.03

16

PLUG

09250-05011-5PK

Unavailable
