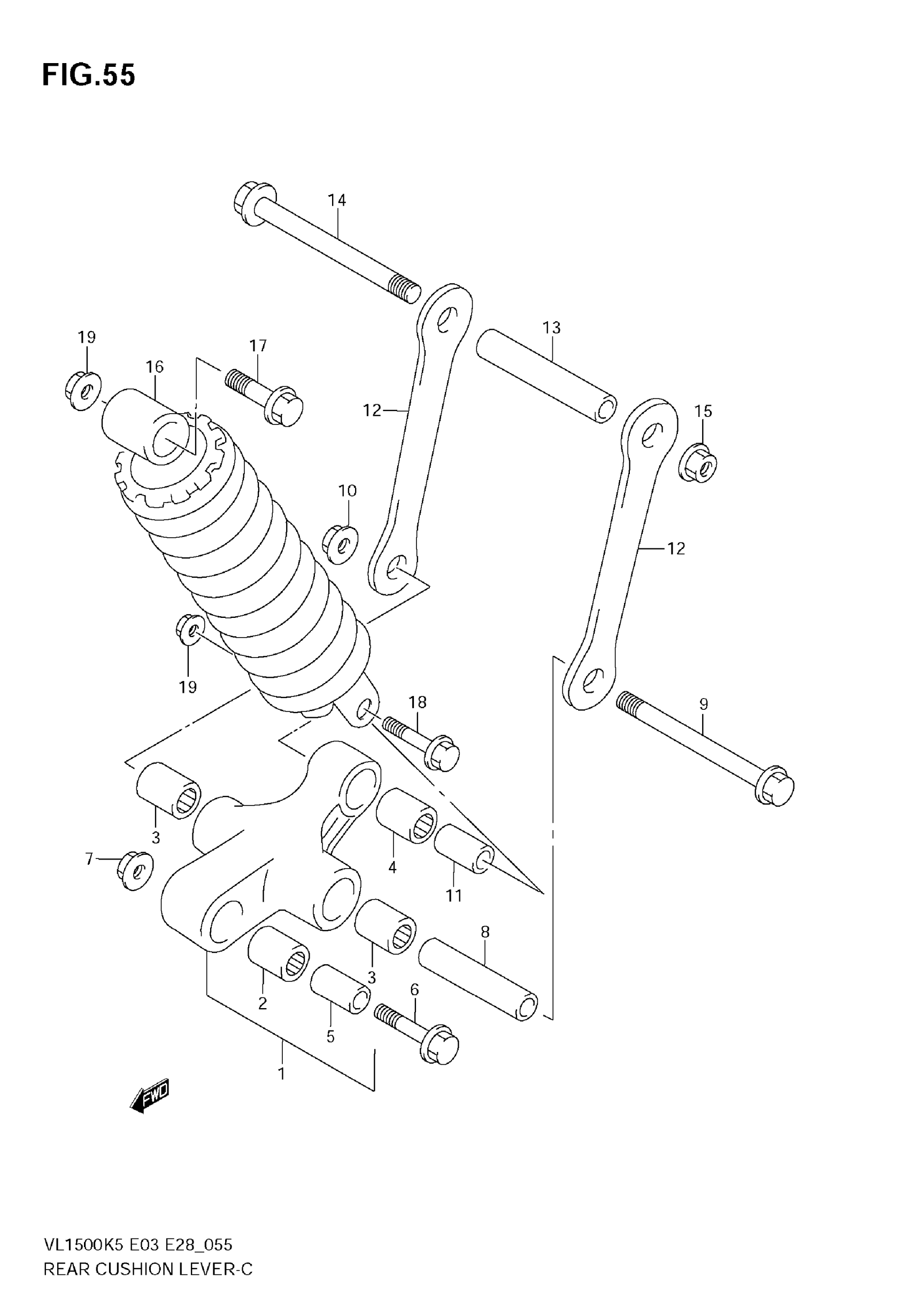

Suzuki VL1500 (2009) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 4

62600-26840

Unavailable

2

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

3

BEARING, CENTER (20X27X23.5)

09263-20071

$25.92

4

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

5

SPACER, FRONT (14X20X34)

09180-14014

$17.50

6

BOLT, FRONT (14X66)

09103-14016

Unavailable

7

NUT | MODEL K5/K6/K7 This part replaces 08319-31143.

08319-3114B

$12.87

7

NUT | MODEL K8/K9

08319-3114B

$12.87

8

SPACER, CENTER (14X20X99)

09180-14020

Unavailable

9

BOLT, CENTER (14X129)

09103-14017

$17.93

10

NUT | MODEL K5/K6/K7 This part replaces 08319-31143.

08319-3114B

$12.87

10

NUT | MODEL K8/K9

08319-3114B

$12.87

11

SPACER, REAR (10X17X30)

62684-40A10

$12.15

12

ROD, REAR CUSHION LEVER

62641-10F00

Unavailable

13

SPACER, ROD (14X20X99)

09180-14020

Unavailable

14

BOLT, ROD (14X129)

09103-14017

$17.93

15

NUT

08319-3114B

$12.87

16

ABSORBER ASSY, REAR SHOCK | E3,E33

62100-10F40

$870.75

16

ABSORBER ASSY, REAR SHOCK | E28

62100-10F21

Unavailable

17

BOLT, UPPER (10X50)

09103-10064

$5.52

18

BOLT, LOWER (10X54)

09103-10101

$4.00

19

NUT | MODEL K5/K6/K7 This part replaces 08319-31103.

08319-3110A

$2.73

19

NUT | MODEL K8/K9

08319-3110B

$3.87
