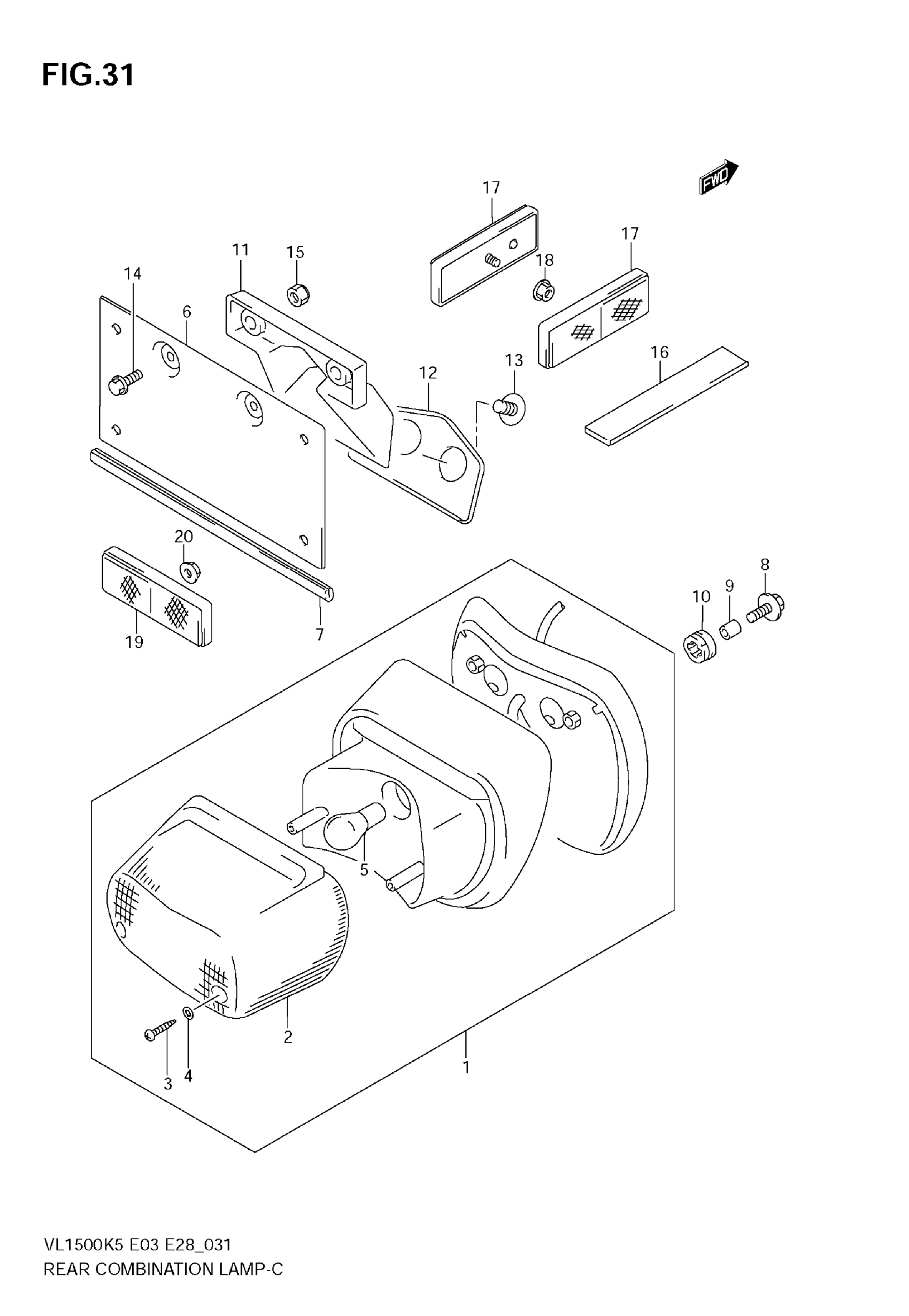

Suzuki VL1500 (2009) REAR COMBINATION LAMP Diagram

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 5

35710-10F30

$289.07

LENS

35712-10F30

$71.87

SCREW

03211-04207

$1.49

GASKET

35627-43010

$2.28

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

HOLDER,LICENSE This part replaces 63461-10F30.

63461-10F31

Unavailable

MOLDING, LICENSE PLATE

94635-19C00

$8.53

BOLT (6X20)

09116-06115

$1.97

SPACER (6.5X10X12)

09180-06290

$2.35

CUSHION

09320-09010

$2.84

STAY, LICENSE PLATE HOLDER

35928-10F00

Unavailable

CUSHION, LICENSE PLATE HOLDER

35929-10F00

Unavailable

BOLT, LICENSE PLATE BRACKET | 6X16

09116-06168

$2.50

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.38

NUT, LICENSE PLATE

08313-10067

$1.84

PROTECTOR,20X90X1.0 (20X90X1.

33652-26E00

$3.70

REFLEX REFLECTOR ASSY, SIDE

35970-38B00

$32.67

NUT

08316-1005B

$2.50

REFLEX REFLECTOR ASSY, REAR

35970-07F01

$20.88

NUT

08316-1005B

$2.50
